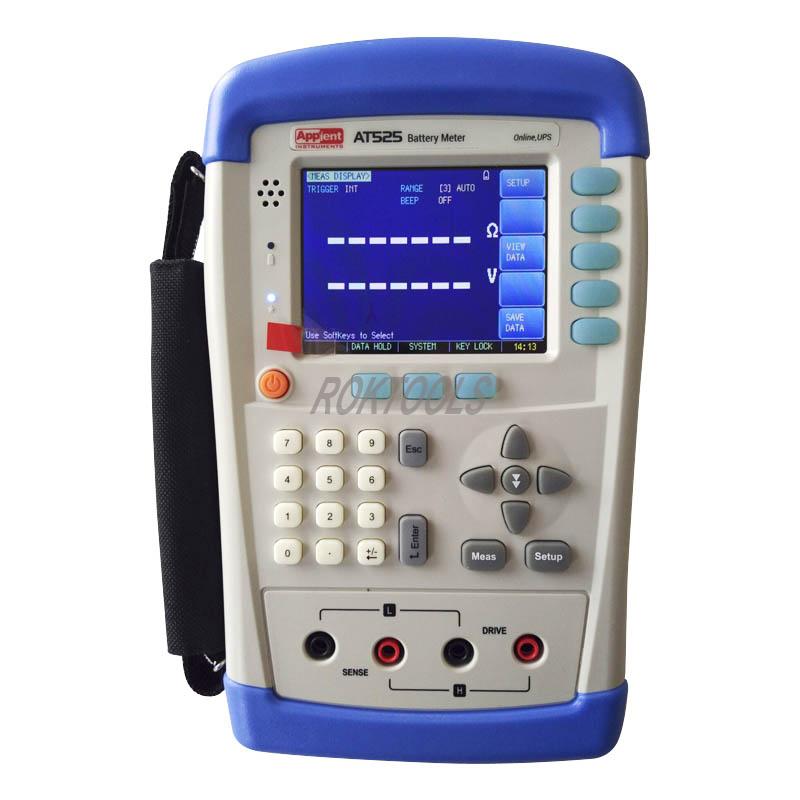

Battery Tester Double Display Battery Resistance Tester Meter
Main Features:
- Portable design with dual-colour protective cast shell
- Battery and external power supply
- TFT-LCD display
- Battery life of approximately 8 hours
- Automatic power off when left idle
- Double display: ΔABS, Δ% and sorting result
- Comparator function: GD/NG
- Auto zero adjustments for each range
- Four terminal resistance measurements
- Mini-USB interface
- SCPI-compatible command sets
- Keypad lock function
- Data hold function
- Adjustable background brightness
Parameters | AC resistance, DC voltage |
Accuracy | Resistance: 0.5% ± 5 digits Voltage: 0.1% ± 5 digits |
Measurement Range | Resistance: 0.001mΩ to 3.3Ω Voltage: 0.0001V to 60V |
Signal Source | AC: 1kHz Open-Circuit Voltage: <30mV Current: <15mA |
Range | Automatic, manual, nominal, 6 ranges |
Speed | 20 times/second, 10 times/second, 3 times/second |
Result Display | ABS/PER/SEQ |
Display Max | Resistance: 3300 Voltage: 6000 |
Max Resolution | Resistance: 0.01mΩ Voltage: 1mV |
Adjustment | Short-circuit reset for each range |
Comparator | Voltage comparison separately, resistance comparison separately, voltage and resistance combination comparison and GD/NG sorting result display. Adjustable beep |
Trigger | Internal, manual and remote |
Test Terminal | 4 terminal shielding (2 check terminal and 2 driving terminal) and external shielding ground section |
Interface | Built-in mini-USB (virtual serial port Charging interface U disc interface |
