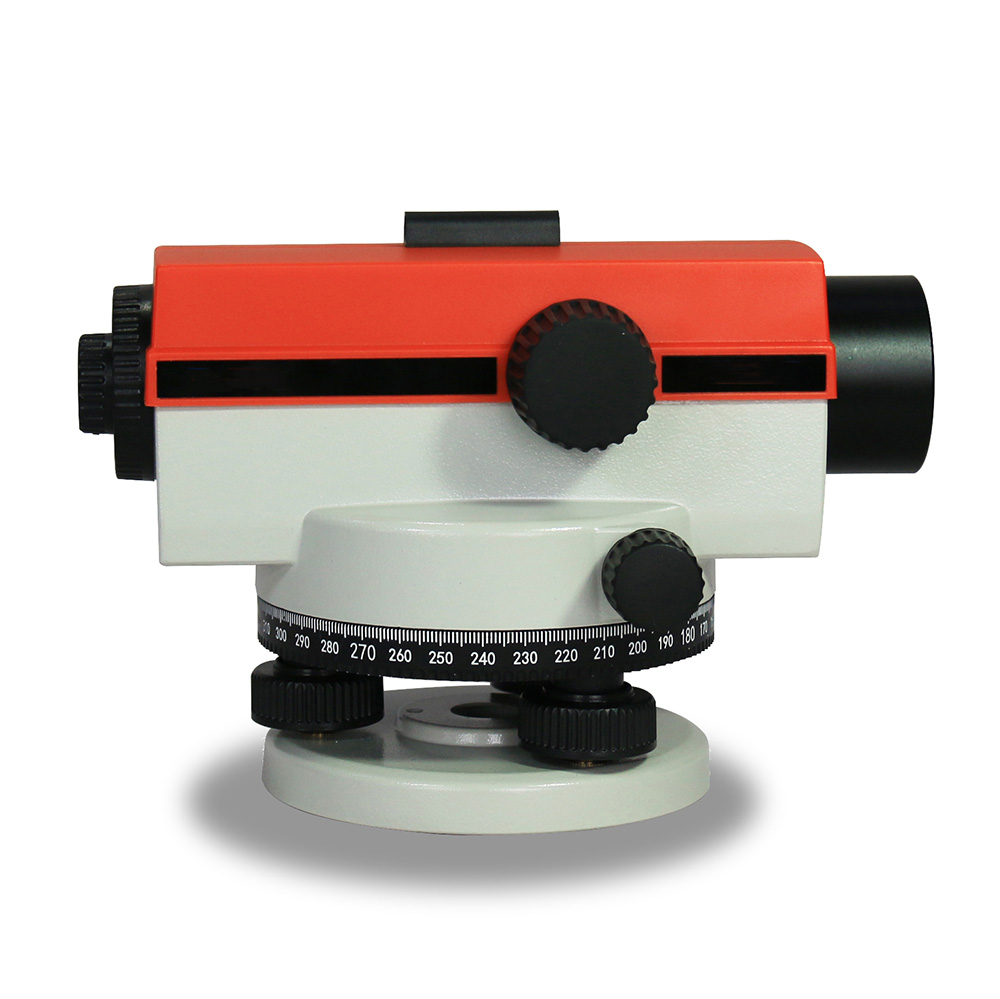

Niveau de constructeur de niveau dumpy d'arpentage automatique à faible coût
Spécification:
Modèle | AULE-98002-20 | AULE-98002-24 | AULE-98002-28 | AULE-98002-32 | AULE-98002-36 |
Grossissement du télescope | 20X | 24X | 28X | 32X | 36X |
Écart type pour un nivellement à double passage de 1 km | 2,5 mm | 2,0 mm | 1,5 mm | 1,0 mm | 1,0 mm |
Précision du réglage | ±0.5″ | ±0.5″ | ±0.4″ | ±0,3″ | ±0,3″ |
Compensator working range: ±15′
Image du télescope : En position verticale
Clear objective aperture: 40mm
Angle of field of view: 1°20′ 1°17.5′(AULE-98002-36)
Shortest focusing distance: 0.5m
Constante de multiplication/constante d'addition Stadia : 100/0
Sensibilité du niveau circulaire : 8′/2 mm
Cercle horizontal : 360° ou 400gon
Dust/waterproof: IP54
compensator type: X type hanging wire and air damping or magnetic damping
Instrument size: 195mm×135mm×140mm
Net weight: 1.4Kg
Centre size of tripod: M16 or 5/8”
