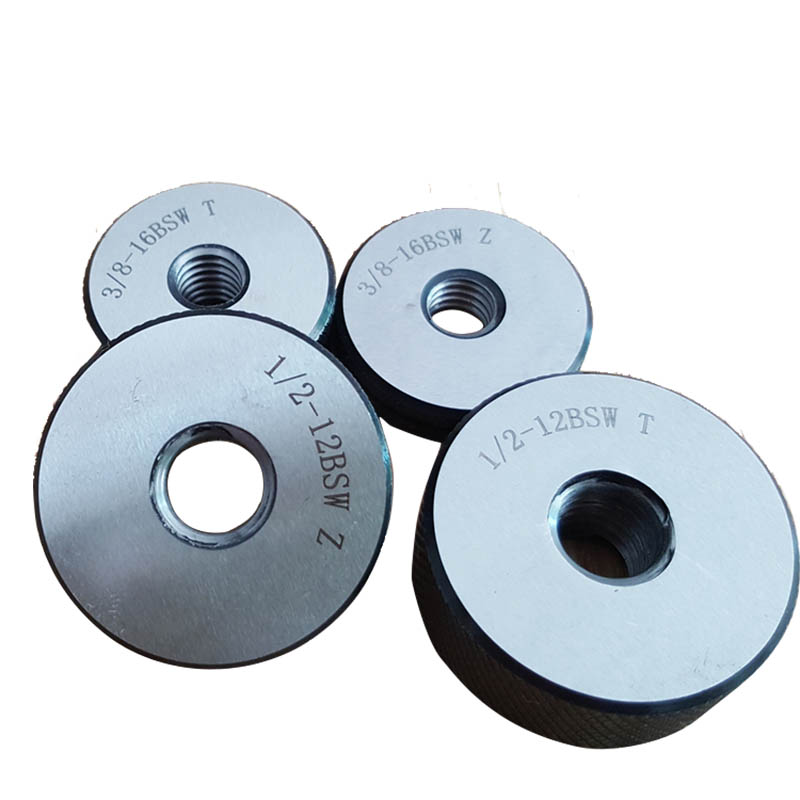

BSW halka Diş Mas tarıiplik halkası göstergesi ingiliz standart whitworth ipliği
Şartname:
| Ana çap |
Konu saha |
Küçük çap |
75% musluk matkap boyutu |
||||
|---|---|---|---|---|---|---|---|
| (içinde) | (mm) | (içinde-1) | (mm) | (içinde) | (mm) | (içinde) | (mm) |
| 1⁄16 | 1.588 | 60 | 0.423 | 0.0412 | 1.046 | #56 | 1.2 |
| 3⁄32 | 2.381 | 48 | 0.529 | 0.0671 | 1.704 | #49 | 1.9 |
| 1⁄8 | 3.175 | 40 | 0.635 | 0.0930 | 2.362 | #39 | 2.6 |
| 5⁄32 | 3.969 | 32 | 0.794 | 0.1162 | 2.951 | #30 | 3.2 |
| 3⁄16 | 4.763 | 24 | 1.058 | 0.1341 | 3.406 | #26 | 3.7 |
| 7⁄32 | 5.556 | 24 | 1.058 | 0.1654 | 4.201 | #16 | 4.5 |
| 1⁄4 | 6.350 | 20 | 1.270 | 0.1860 | 4.724 | #9 | 5.1 |
| 5⁄16 | 7.938 | 18 | 1.411 | 0.2414 | 6.132 | F | 6.6 |
| 3⁄8 | 9.525 | 16 | 1.588 | 0.2950 | 7.493 | 5⁄16 | 8.0 |
| 7⁄16 | 11.113 | 14 | 1.814 | 0.3460 | 8.788 | sen | 9.4 |
| 1⁄2 | 12.700 | 12 | 2.117 | 0.3933 | 9.990 | 27⁄64 | 10.7 |
| 9⁄16 | 14.288 | 12 | 2.117 | 0.4558 | 11.577 | 31⁄64 | 12.3 |
| 5⁄8 | 15.875 | 11 | 2.309 | 0.5086 | 12.918 | 17⁄32 | 13.7 |
| 11⁄16 | 17.463 | 11 | 2.309 | 0.5711 | 14.506 | 19⁄32 | 15.2 |
| 3⁄4 | 19.050 | 10 | 2.540 | 0.6219 | 15.796 | 21⁄32 | 16.6 |
| 13⁄16 | 20.638 | 10 | 2.540 | 0.6844 | 17.384 | 23⁄32 | 18.2 |
| 7⁄8 | 22.225 | 9 | 2.822 | 0.7327 | 18.611 | 49⁄64 | 19.5 |
| 15⁄16 | 23.813 | 9 | 2.822 | 0.7952 | 20.198 | 53⁄64 | 21.1 |
| 1 | 25.400 | 8 | 3.175 | 0.8399 | 21.333 | 7⁄8 | 22.3 |
| 1 1⁄8 | 28.575 | 7 | 3.629 | 0.9420 | 23.927 | 63⁄64 | 25.1 |
| 1 1⁄4 | 31.750 | 7 | 3.629 | 1.0670 | 27.102 | 1 7⁄64 | 28.3 |
| 1 3⁄8 | 34.925 | 6 | 4.233 | 1.1616 | 29.505 | 1 7⁄32 | 30.9 |
| 1 1⁄2 | 38.100 | 6 | 4.233 | 1.2866 | 32.680 | 1 5⁄16 | 34.0 |
| 1 5⁄8 | 41.275 | 5 | 5.080 | 1.3689 | 34.770 | 1 7⁄16 | 36.4 |
| 1 3⁄4 | 44.450 | 5 | 5.080 | 1.4939 | 37.945 | 1 9⁄16 | 39.6 |
| 1 7⁄8 | 47.625 | 4 1⁄2 | 5.644 | 1.5904 | 40.396 | 1 5⁄8 | 42.2 |
| 2 | 50.800 | 4 1⁄2 | 5.644 | 1.7154 | 43.571 | 1 3⁄4 | 45.4 |
| 2 1⁄8 | 53.975 | 4 1⁄2 | 5.644 | 1.8404 | 46.746 | 1 7⁄8 | 48.6 |
| 2 1⁄4 | 57.150 | 4 | 6.350 | 1.9298 | 49.017 | 2 | 51.1 |
| 2 3⁄8 | 60.325 | 4 | 6.350 | 2.0548 | 52.192 | 2 1⁄8 | 54.2 |
| 2 1⁄2 | 63.500 | 4 | 6.350 | 2.1798 | 55.367 | 2 1⁄4 | 57.4 |
| 2 5⁄8 | 66.675 | 4 | 6.350 | 2.3048 | 58.542 | 2 3⁄8 | 60.6 |
| 2 3⁄4 | 69.850 | 3 1⁄2 | 7.257 | 2.3841 | 60.556 | 2 1⁄2 | 62.9 |
| 2 7⁄8 | 73.025 | 3 1⁄2 | 7.257 | 2.5091 | 63.731 | 2 5⁄8 | 66.1 |
| 3 | 76.200 | 3 1⁄2 | 7.257 | 2.6341 | 66.906 | 2 3⁄4 | 69.2 |
| 3 1⁄4 | 82.550 | 3 1⁄4 | 7.815 | 2.8560 | 72.542 | 3 | 75.0 |
| 3 1⁄2 | 88.900 | 3 1⁄4 | 7.815 | 3.1060 | 78.892 | 3 1⁄4 | 81.4 |
| 3 3⁄4 | 95.250 | 3 | 8.467 | 3.3231 | 84.407 | 3 3⁄8 | 87.1 |
| 4 | 101.600 | 3 | 8.467 | 3.5731 | 90.757 | 3 5⁄8 | 93.5 |
| 4 1⁄4 | 107.950 | 2 7⁄8 | 8.835 | 3.8046 | 96.637 | 3 7⁄8 | 99.5 |
| 4 1⁄2 | 114.300 | 2 7⁄8 | 8.835 | 4.0546 | 102.987 | 4 1⁄8 | 105.8 |
| 4 3⁄4 | 120.650 | 2 3⁄4 | 9.236 | 4.2843 | 108.821 | 4 3⁄8 | 111.8 |
| 5 | 127.000 | 2 3⁄4 | 9.236 | 4.5343 | 115.171 | 4 5⁄8 | 118.1 |
| 5 1⁄4 | 133.350 | 2 5⁄8 | 9.676 | 4.7621 | 120.957 | 4 7⁄8 | 124.1 |
| 5 1⁄2 | 139.700 | 2 5⁄8 | 9.676 | 5.0121 | 127.307 | 5 1⁄8 | 130.4 |
| 5 3⁄4 | 146.050 | 2 1⁄2 | 10.160 | 5.2377 | 133.038 | 5 3⁄8 | 136.3 |
| 6 | 152.400 | 2 1⁄2 | 10.160 | 5.4877 | 139.388 | 5 5⁄8 | 142.6 |

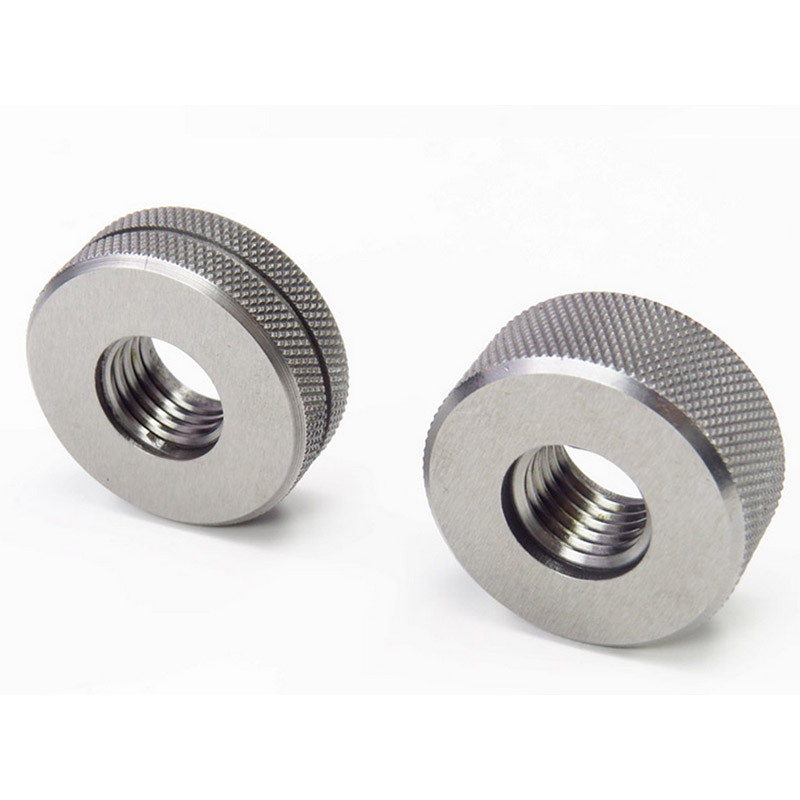

bsw iplik halkası ölçer
