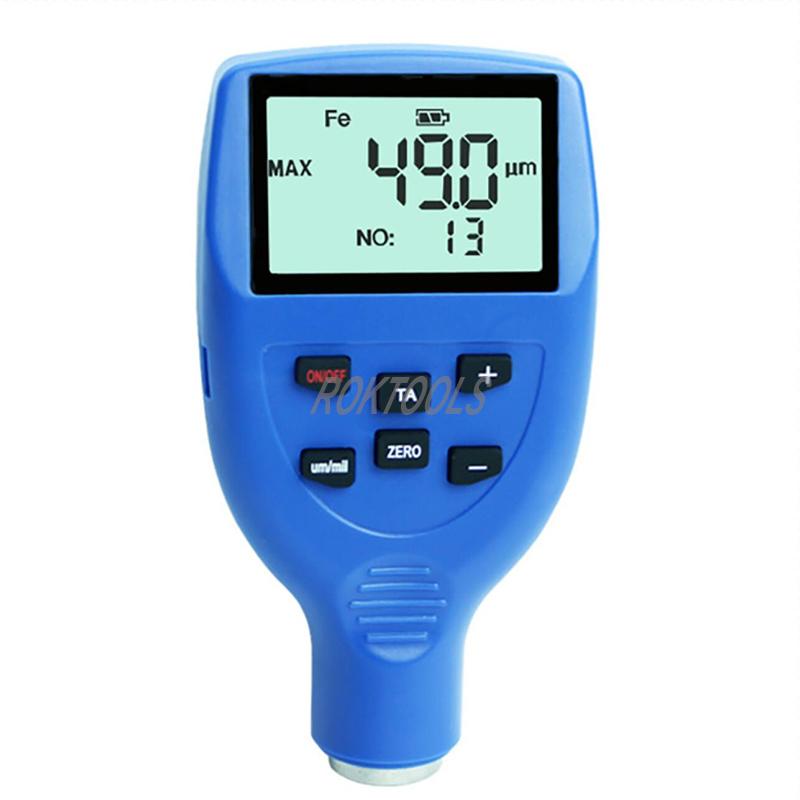

1500μm magnetic and eddy current coating thickness gauge
Part No:CTME-5102
A.Magnetic thickness method, can be nondestructively measuring magnetic metal matrix (such as: steel, iron, nickel)on non magnetic coatings thickness ( such as: galvanized, chrome, paint, electrophoresis, enamel, rubber, powder coating, enamel, etc.)
B.eddy current thickness method, can be nondestructively measuring non-magnetic metal substrate ( such as: aluminum, copper, stainless steel) of non-conductive coating thickness ( such as: paint, powder, plastic, rubber, enamel, enamel, coating etc.)
Features:
1, the use of alloy integrated probe, the world’s leading technology
2, simple operation, fast testing speed and high sensitivity.
3, exquisite artificial integration design, easy to carry.
4, two test methods: continuous testing (CONT INUE) and single (SINGLE) measurement.
5, statistical functions: maximum (MAX), minimum (MIN), average (MEA)
6, which can store 2000 measurement data (10 sets of data).
7, can connect to the computer for communication, read out and store data for preservation or printing.
8, two calibration modes: zero calibration and two point calibration.
9, there are beep prompts in operation process (single measurement mode).
10, automatic identification of iron-based and non-ferrous base materials
11, low voltage indication
12, manual / automatic shutdown function
13, super LCD display backlight, with screen rotation inversion function.
14, Unit conversion μm/mil
Specification:
1.Measuring range: 0-1500μm
2.Using environment: 0℃-50℃ and 20%RH—90%RH,not strong magnetic place.
3.the thinnest matrix: 0.4mm
4.measurement accuracy:±(3%H+1.5μm)
5.resolution ratio:0.1μm /1μm
6.minimum curvature: Convex 5mm;concave25mm
7.minimum matrix:18*15mm power: three (7) alkaline battery
8, size: 126mm*64mm*28mm
9, weight: 106G (excluding battery)
