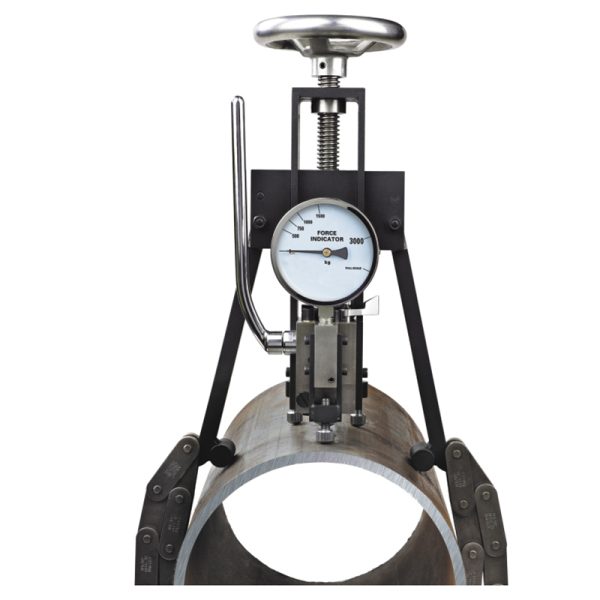

Chain hydraulic brinell hardness tester GB ISO ASTM standards
1.On-the-spot testing. It can be used in workshop for its simple operation, easy to carry, used in testing large cylinder workpiece on site. Easy to take and easy to operation
2.Permanent Indentation. Permanent indentation after test is for rechecking.
3.High reliability. It completely follows Brinell hardness test principle, reflecting the mechanical property of the test material or parts, the same as bench top tester.
4.High accuracy. The test force accuracy complies with relevant regulations around the world, the same accuracy as benchtop tester, complying with ISO ASTM standard.
Specification;
-Test Force: 3000kg (1000kg, 750kg, 500kg optional)
-Test Ball: 10mm Carbide alloy test ball (5mm optional)
-Test Range: 32~650HBW
-Test Diameter: ≤500mm
-Indicator Error: Live up to GB, ISO, ASTM standards
-Repeatability Error: Live up to GB, ISO, ASTM standards
-Test Force Error: ≤±1%, Live up to GB, ISO, ASTM standards
-Net Weight: 14.5kg
What in the package:
-Tester
-Load Handle 1
-Pinch bar 1
-Brinell Harness Block 1
-Seat Iron 1
-40X Reading Microscope 1
-5mm Spare Carbide Alloy Test Ball 1
