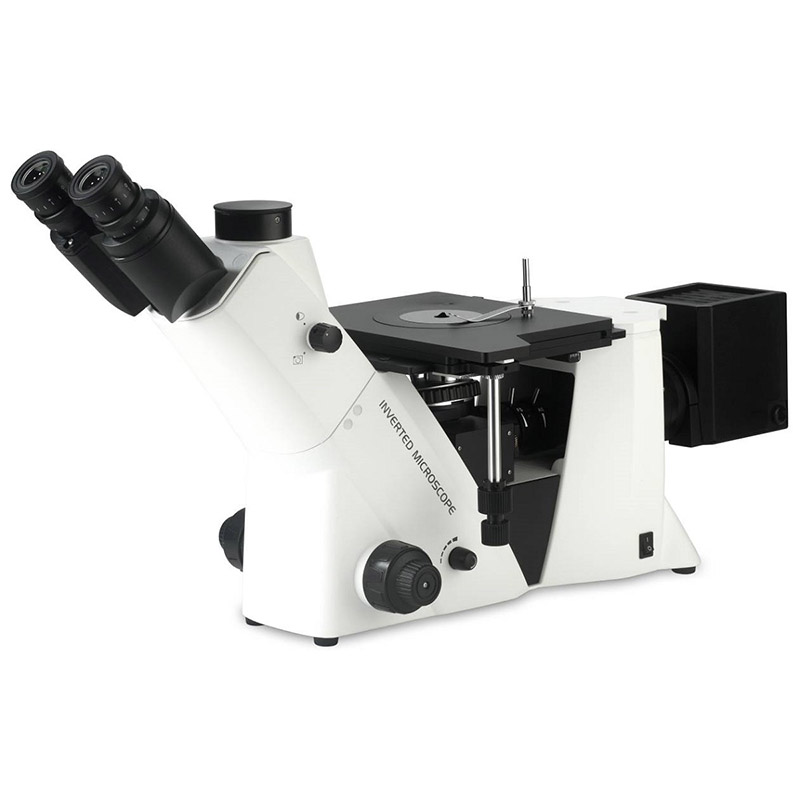

Combination Inverted metallurgical microscope
Features:
– Designed for industrial users, Widely used in metal, mineral, electronic field
– Combination with bight field, dark field, polarizing observation
– Dark field objective,Make observation in dark & bright field
– Oversized three-layer working stage, more choice for samples.
Specification:
Objective | N.A. | Working Distance
(mm) |
BIMI-32400 | BIMI-32400D | |
Metallurgical LWD Infinity
Plan Objectives |
LPL 5× | 0.13 | 16.04 | Yes | |
LPL 10× | 0.25 | 18.48 | Yes | ||
LPL 20× | 0.40 | 8.35 | Yes | ||
LPL 50× | 0.70 | 1.95 | Yes | ||
LPL 80× | 0.80 | 0.85 | Optional | ||
LPL100×(Dry) | 0.90 | 1.10 | Optional | ||
Metallurgical LWD Infinity
Plan Objectives for Bright/Dark Field |
M PLAN 5× BD | 0.13 | 16.04 | Yes | |
M PLAN 10× BD | 0.25 | 18.48 | Yes | ||
M PLAN 20× BD | 0.40 | 8.35 | Yes | ||
M PLAN 50× BD | 0.70 | 1.95 | Yes |
Objective specification: ( “Yes” Is Standard outfits, “Optional” Is Optional Accessories.)
