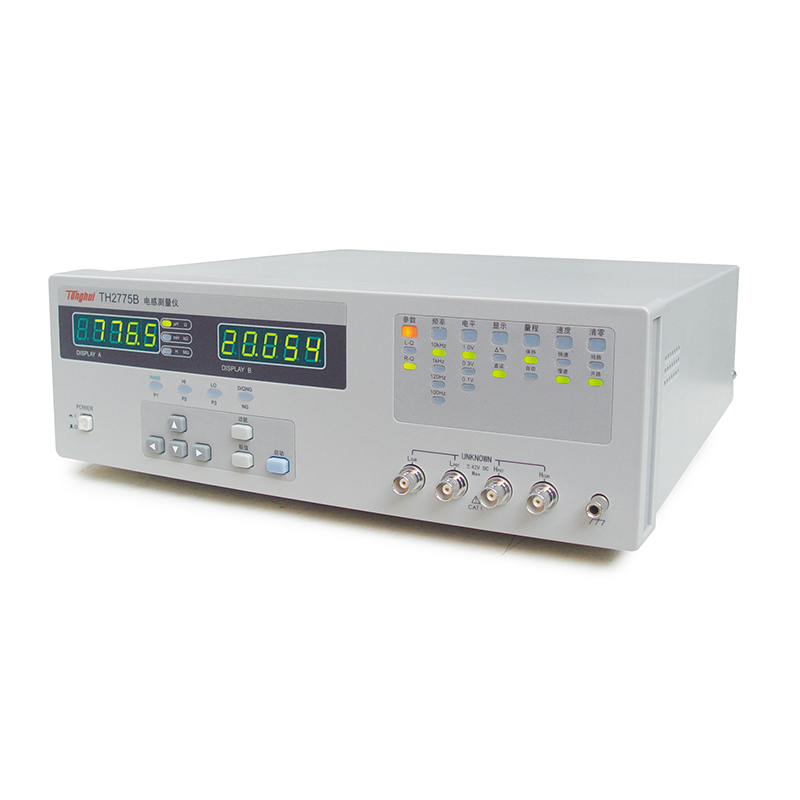

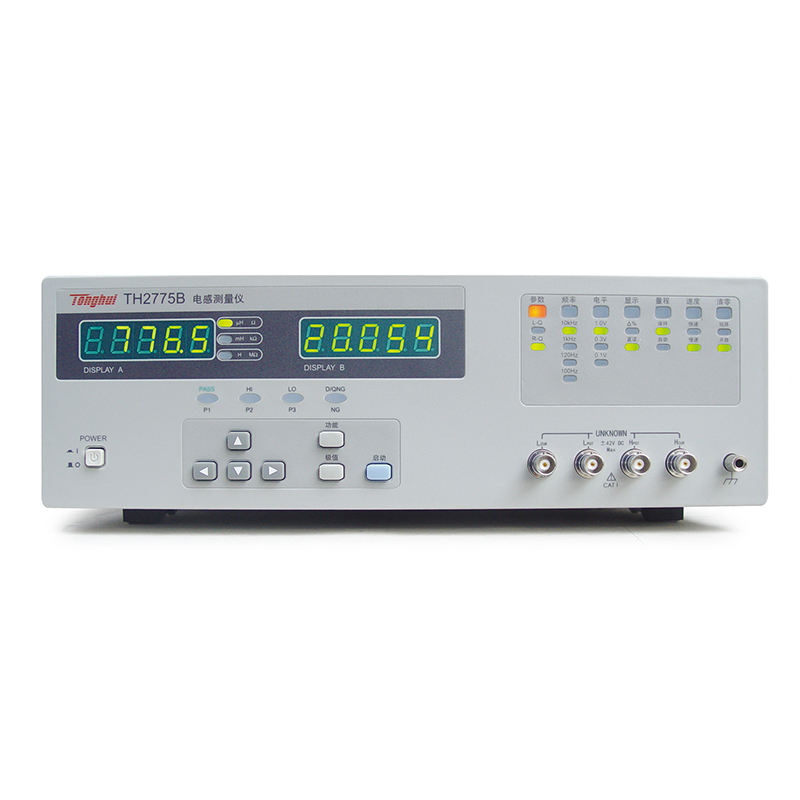

30Ω And 100Ω Two Impedances Output Inductance Tester Meter
Features:
– Mid-range inductance measuring instrument with improved performance
– Reasonable combination of simple operation and powerful functions
– Stable reading
– Up to 15 times/second measurement speed
– Keyboard lock function
– Two output impedances of 30Ω and 100Ω
– Four-speed sorting and HANDLER interface
– Provide RS-232C communication interface
-Optional RS232C operating software
Specifications
Test Frequency : 100Hz,120Hz,1kHz,10kHz
Test level : 0.1Vrms, 0.3Vrms, 1Vrms
Basic Accuracy : 0.1%Measuring speed :
Fast: 15 meas/sec,
Slow: 4.5 meas/sec
Equivalent : Circuit Series and Parallel
Mathematical function : D%
Ranging Mode : Auto and Hold
Trigger Mode : Internal, Manual and External
Correction Function : Open and Shor t sweep Zeroing
Measurement Terminals : 5 Terminals
Display Mode : Direct, D%
Output impedance : 30 Ohm , 100 Ohm Selectable
Display Range :
R 0.0001 Ohm – 99.999M Ohm
L 0.01uH – 99999H
Q 0.0001 – 9999
D% 0.00% – 9999%
Comparator Function : 4 Bins , P1 alarm or 2 Bins, Pass Alarm

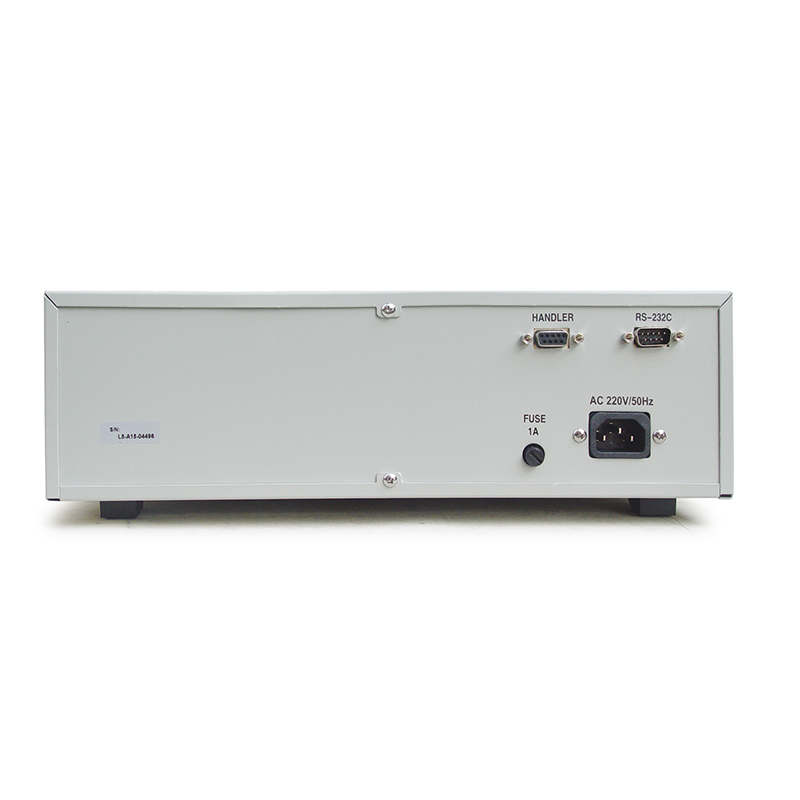

Interface : RS-232C, Handler
