10Hz-10kHz portable vibrometer with ISO 2954
Features:
* Can display the parameters of Displacement, Velocity and Acceleration simultaneously.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality accelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Vibration standards
ISO/IS2373 Motor Quality Standard According As Vibration Velocity | ||||
Quality Rank | Rev(rpm) | H:high of shaft(mm) Maximum vibration velocity rms(mm/s) |
||
80<H<132 | 132<H<225 | 225<H<400 | ||
Normal | 600~3600 | 1.8 | 2.8 | 4.5 |
Good(R) | 600~1800 | 0.71 | 1.12 | 1.8 |
1800~3600 | 1.12 | 1.8 | 2.8 | |
Excellent(S) | 600~1800 | 0.45 | 0.71 | 1.12 |
1800~3600 | 0.71 | 1.12 | 1.8 |
Specfications:
Sensor | Piezoelectric Transducer | |
Measuring Range | Acceleration | 0.1~400m/s² 0.3~1312ft/s² 0.0~40g Equivalent Peak |
Velocity | 0.01~400mm/s 0.004~16.0inch/sTrue RMS | |
Displacement | 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak | |
Frequency Range | Acceleration | 10Hz~10kHz |
Velocity | 10Hz~1kHz | |
Displacement | 10Hz~1kHz | |
Accuracy | 5% of Reading+2 digits | |
Operating Conditions | Temperature | 0~50ºC |
Humidity | <90%RH | |
Power Supply | 2×1.5V AA(UM-3)Battery | |
Dimensions | 130x76x32mm | |
Weight | 340g(Not Including Batteries) | |
Standard Accessories | Main Unit | |
Piezoelectric Transducer | ||
Powerful Rare Earth Magnet | ||
Probe(Cone)&Probe(Spherical) | ||
Carrying Case(B04) | ||
Manual Book | ||
Optional Accessories | Headset | |
RS-232C Data Cable with Software | ||
Bluetooth Data Adapter with Software |
Display:4 digit LCD backlit
Measurement Range:
Velocity: 0.01-400.0 mm/s 0.000-16.00 inch/s true RMS
Acceleration: 0.1-400.0 m/s² 0.3-1312 ft/s² 0.0-40g equivalent peak
Displacement:0.001-4.000mm 0.04-160.0 mil equivalent peak-peak
Frequency Range for Measuring:10Hz. to 10kHz.
Accuracy:5% of reading + 2 digits
Metric/ Imperial conversion
Analogue Output: AC output 0~2.0V peak full scale (load resistance: above 10k)
With Max. value hold and low battery indication
PC interface: RS232C or Bluetooth interface ( Cable and software is not included)
Power supply: 2×1.5v AA size (UM-3) batteries
Power off : Manual off at any time or auto power off is enabled by user
Operating conditions:
Temperature : 0-50 ℃
Humidity : below 95% RH

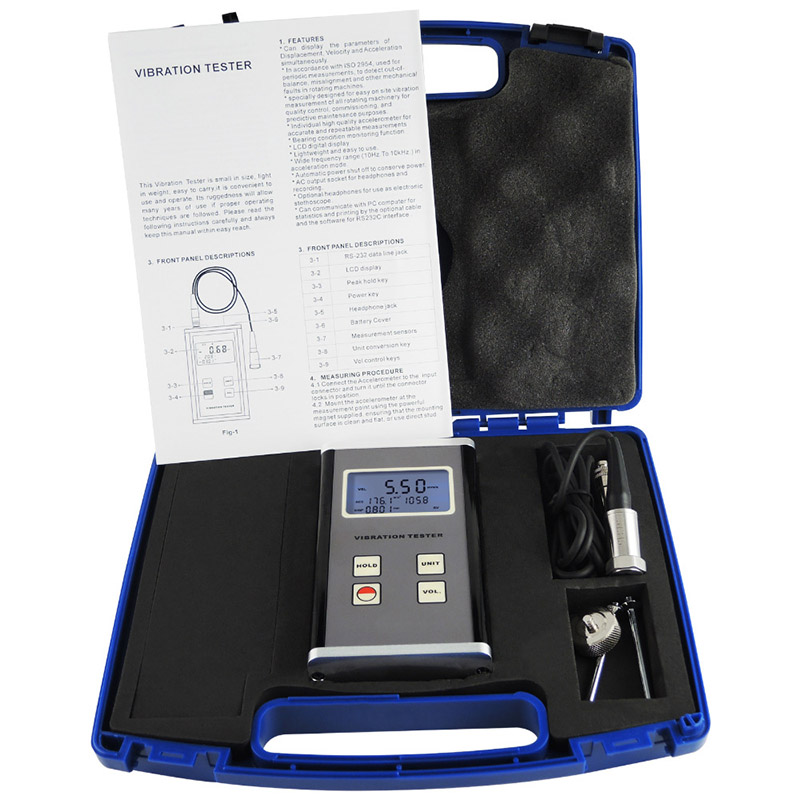

Standard package:
Powerful rare earth magnet
Accelerometer
Stinger probe (Cone)
Stinger probe (Ball)
Carrying case
Operation manual
Optional accessories:
•Headphones for use as electronic stethoscope
•Cable and software for RS232C
