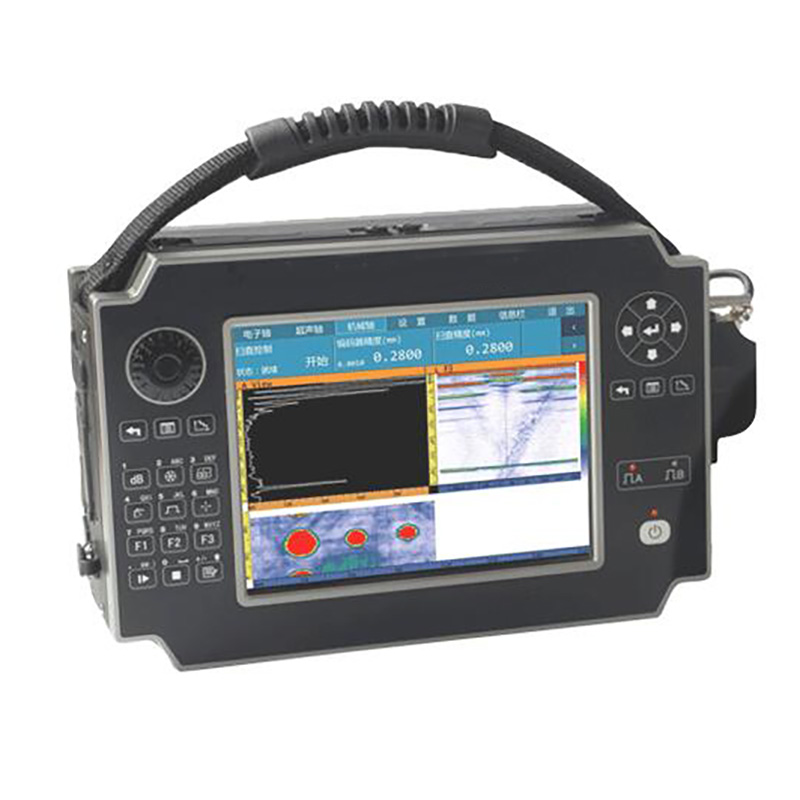

3 options 3D phased array ultrasonic flaw detector
Part No: FD-PA22A
Features:
– by touching or pressing to operate the instrument
– fan-free heat dissipation; water&dust -proof
– metallic housing against collision or tumble
– linkage between scanner and the instrument
– laser line to direct scanning
– adjustable probe angle with scale inside the wheel
– encoder to be installed on the probe
– A void left for a GPS unit in the middle of the scanner to be applied to tube
– fan-free heat dissipation; water&dust -proof
– metallic housing against collision or tumble
– linkage between scanner and the instrument
– laser line to direct scanning
– adjustable probe angle with scale inside the wheel
– encoder to be installed on the probe
– A void left for a GPS unit in the middle of the scanner to be applied to tube
– Metal Housing
– T-R Mode
– 3D Simulation Model
– Projected Capacitive Touch Screen
– 6:64 PA Configuration and 2 Conventional Channels (T&R)
– 3D simulation model, customizable with one-for-all solutions(instrument+probe+scenario)
– Image Smoothing
– Dynamic Depth-Focusing for high discernibility at different depths
– Omnisealed, water&dust -proof but capable of fan-free heat dissipation, over any adversities.
– Delay precision up to 2.5ns; evident inhibition on sidelobes as to enhance vertical and horizontal discernibility, as well as to improve imaging definition.
– Responsive A/L/S/C scan imaging; Encoder used for continuity of 100%-original-data logging .
– Supportive of ACG and TCG curves specified by ASME, to solve the problem of poor energy distribution and measurement accuracy.
– Focal laws to be automatically generated according to beam angle, focal length, scan mode, specs of probe and wedge, with auto-optimized angle stepping of S-scan.
– 3 options of filtering: 0.5-9.7MHz、4.0-12.5MHz、6.7-20.8MHz; Auto Optimization of pulse width according to probe frequency; Excellent noise processing
– 11-inch IG & WVGA (800×600) TFT display, touch pad, ensuring nice visual effect outdoors or under strong sunlight.
– Ergonomic panel suitable for both hands operating; Hotkey parameters setting; USB port for instant data dump; HDMI port for external display of unlimited size.
– Host Software supplied for analysis, continuity of data logging, etc.
– AC/DC optional, allowing engagement of 2 pieces of battery collectively, in turn or by hot swap, to make sure duration of 6+ hrs
– 3D simulation model, customizable with one-for-all solutions(instrument+probe+scenario)
– Image Smoothing
– Dynamic Depth-Focusing for high discernibility at different depths
– Omnisealed, water&dust -proof but capable of fan-free heat dissipation, over any adversities.
– Delay precision up to 2.5ns; evident inhibition on sidelobes as to enhance vertical and horizontal discernibility, as well as to improve imaging definition.
– Responsive A/L/S/C scan imaging; Encoder used for continuity of 100%-original-data logging .
– Supportive of ACG and TCG curves specified by ASME, to solve the problem of poor energy distribution and measurement accuracy.
– Focal laws to be automatically generated according to beam angle, focal length, scan mode, specs of probe and wedge, with auto-optimized angle stepping of S-scan.
– 3 options of filtering: 0.5-9.7MHz、4.0-12.5MHz、6.7-20.8MHz; Auto Optimization of pulse width according to probe frequency; Excellent noise processing
– 11-inch IG & WVGA (800×600) TFT display, touch pad, ensuring nice visual effect outdoors or under strong sunlight.
– Ergonomic panel suitable for both hands operating; Hotkey parameters setting; USB port for instant data dump; HDMI port for external display of unlimited size.
– Host Software supplied for analysis, continuity of data logging, etc.
– AC/DC optional, allowing engagement of 2 pieces of battery collectively, in turn or by hot swap, to make sure duration of 6+ hrs
Specification
Channel Configuration
PA : 16:64
Cvt’l UT : 2 CH
Physical Specification
Display: 11-inch 800X600 TFT color display
Transducer Ports: I-PEX 160-pin PA transducer port; Lemo-00
conventional transducer Port, for either T-R or T/R
II/O Ports: USB 2.0 (Qty:2) ; HDMI; LAN (GB Ethernet);
WIFI; GPS; GSM; 2D encoder
Registers: In-Built: 16G RAM+4GB FLASH SD
card; External: USB drive
Weight: 5.5Kg (with batteries)
Dimension (mm): 298(L) x 198(H) x 106(W)
Power Supply: AC (100V-240V); DC(12V)
Charging: external charger
Battery Life: 6 hrs
Working Power: 24W
Language: English
IP: 54
Temperature Conditions: ambiance(-20℃~50℃);
storage(-20℃~60℃)
Performance Specification – PA
PRF: 50Hz～ 10kHz
Voltage: Bipolar ±45V ~±100V, 5V per step
Pulse Width: 20ns～ 800ns, 5ns per step
Damping: 50Ω
Sampling Rate: 100MHz
Delay Precision: 2.5ns
Rx Delay: 0us～ 40us
Bandwidth: 0.5MHz～ 20MHz
Gain: 0.0dB～ 90dB
Filter: 0.5～ 9.7MHz、4.0～ 12.5MHz、6.7～
20.8MHz optional
Rectification: FW
Rejection: 0～ 80%
Scan Mode: L/S/C -scan
Triggering: Encoder
Scan Lines: Max 128
Angle: L-scan(-85°～ +85); S-scan (-85°～
+85°)
Auto-Cal: TCG、ACG
Reach: 0.0mm～ 1000mm; min available (1mm)
Displaying Delay(Max): 1000mm
Unit: mm
Gate: A/B
Gate Start: available within the reach
Gate Width: available within the reach
Gate Height (Threshold): 5%～ 95%
Alarming: buzzer/LED
Measurement Spot: crest/flank
Readout: amplitude; beampath; horizontal; depth
Measurement Resolution: 0.5mm
Performance Specification – Conventional UT
PRF：50Hz～ 10kHz
Voltage: negative square wave -75V~-250V ; 25V
per step
Pulse Width: 20ns~800ns; 5ns per step
Damping: 80Ω、400Ω
Sampling Rate: 200MHz
Bandwidth: 0.5MHz～ 15MHz
Gain: 0.0dB～ 110.0dB
Filter: wideband; narrowband
Rectification: FW
Rejection: 0～ 80%
Scan Mode: A-scan
Auto-Cal: DAC/AVG
Reach: 0.0mm～ 2000mm
Displaying Delay (Max): 2000mm
Displaying Shift (Max): 2000mm
Unit: mm
Gate: A/B
Gate Start: available within the reach
Gate Width: available within the reach
Gate Height (Threshold): 5%～ 95%
Alarming: buzzer/LED
Measurement Spot: crest/flank
Readout: amplitude/beampath/horizontal/depth
Measurement Resolution: 0.1mm
Channel Configuration
PA : 16:64
Cvt’l UT : 2 CH
Physical Specification
Display: 11-inch 800X600 TFT color display
Transducer Ports: I-PEX 160-pin PA transducer port; Lemo-00
conventional transducer Port, for either T-R or T/R
II/O Ports: USB 2.0 (Qty:2) ; HDMI; LAN (GB Ethernet);
WIFI; GPS; GSM; 2D encoder
Registers: In-Built: 16G RAM+4GB FLASH SD
card; External: USB drive
Weight: 5.5Kg (with batteries)
Dimension (mm): 298(L) x 198(H) x 106(W)
Power Supply: AC (100V-240V); DC(12V)
Charging: external charger
Battery Life: 6 hrs
Working Power: 24W
Language: English
IP: 54
Temperature Conditions: ambiance(-20℃~50℃);
storage(-20℃~60℃)
Performance Specification – PA
PRF: 50Hz～ 10kHz
Voltage: Bipolar ±45V ~±100V, 5V per step
Pulse Width: 20ns～ 800ns, 5ns per step
Damping: 50Ω
Sampling Rate: 100MHz
Delay Precision: 2.5ns
Rx Delay: 0us～ 40us
Bandwidth: 0.5MHz～ 20MHz
Gain: 0.0dB～ 90dB
Filter: 0.5～ 9.7MHz、4.0～ 12.5MHz、6.7～
20.8MHz optional
Rectification: FW
Rejection: 0～ 80%
Scan Mode: L/S/C -scan
Triggering: Encoder
Scan Lines: Max 128
Angle: L-scan(-85°～ +85); S-scan (-85°～
+85°)
Auto-Cal: TCG、ACG
Reach: 0.0mm～ 1000mm; min available (1mm)
Displaying Delay(Max): 1000mm
Unit: mm
Gate: A/B
Gate Start: available within the reach
Gate Width: available within the reach
Gate Height (Threshold): 5%～ 95%
Alarming: buzzer/LED
Measurement Spot: crest/flank
Readout: amplitude; beampath; horizontal; depth
Measurement Resolution: 0.5mm
Performance Specification – Conventional UT
PRF：50Hz～ 10kHz
Voltage: negative square wave -75V~-250V ; 25V
per step
Pulse Width: 20ns~800ns; 5ns per step
Damping: 80Ω、400Ω
Sampling Rate: 200MHz
Bandwidth: 0.5MHz～ 15MHz
Gain: 0.0dB～ 110.0dB
Filter: wideband; narrowband
Rectification: FW
Rejection: 0～ 80%
Scan Mode: A-scan
Auto-Cal: DAC/AVG
Reach: 0.0mm～ 2000mm
Displaying Delay (Max): 2000mm
Displaying Shift (Max): 2000mm
Unit: mm
Gate: A/B
Gate Start: available within the reach
Gate Width: available within the reach
Gate Height (Threshold): 5%～ 95%
Alarming: buzzer/LED
Measurement Spot: crest/flank
Readout: amplitude/beampath/horizontal/depth
Measurement Resolution: 0.1mm
