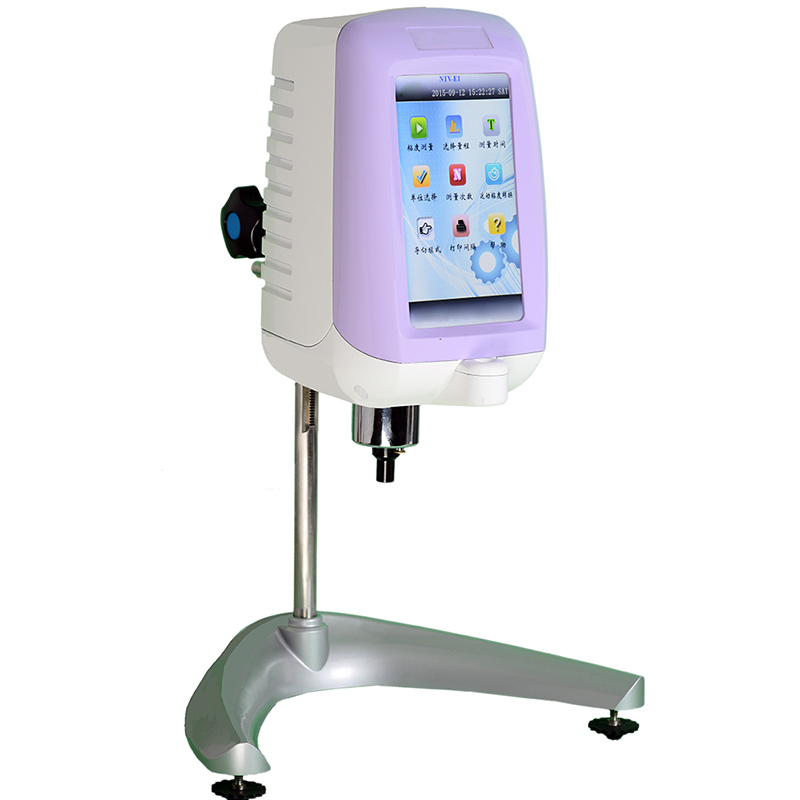

7 inch touch screen digital viscometer caplastometer viscosity meter
Features:
-7 inch wide touch screen, easy to operate, rich display information
-anti-static shell, metal lifting pole design
-Built-in RTD temperature probe 4: ARM chip processor, faster data processing speed
-Durable New Shaft Design 6: Powerful Human-Computer Interaction Interface
-Gigabit Ethernet port data communication transmission, transmission data fast and reliable.
-support external U disk data storage; single point, continuous, timing three kinds of preservation options.
-The password protects temperature and viscosity correction coefficients, allowing users to self-correct temperature and viscosity correction coefficients on the premise of reliable and accurate data.
-Supporting CVT to measure viscosity, any input speed directly reflects the full range of each rotor, which is convenient for users to select test conditions.
-Automatic Conversion of Dynamic Viscosity and Kinematic Viscosity 12: Arbitrary Interchange of Various Viscosity Units
-Interchange of user interfaces with various human operation styles 14: Random and powerful operation guide help
-Viscosity value shows continuous change 16: Alarm sound warning beyond measurement range
-Computer full range linear correction 18: AC power adapter 100V-240V, good anti-interference
Optional accessories:
1:SNB Data Acquisition and Drawing Software
2: Special Viscosity Measurement Constant Temperature Flume
3: super low viscosity adapter
4: small sample adapter.
5: standard solution
6: micro printer.
7: outer circulation glass beaker
Application:
Ink, glue, latex, solvent-based adhesive, polymer solution, petroleum paint, paint, solvent, cosmetics, milk products, pharmaceutical juice, etc.
Specification:
Model number | NTV-S1 | NTV-S2 | NTV-S3 | NTV-SI |
Measuring range (mPa.s) | 1-600000 | 1-6000000 | 4-80000000 | 1-6000000、4-80000000 |
Rotation speed (r/min) | 1-60 | 0.1-100 | 0.1-100 | 0.1-200 |
measurement method | Hand movement | Hand and intelligence | ||
Number of rotors | 1, 2, 3, and 4 four kinds of rotors (turner No. 0 is optional) | |||
Measurement accuracy | ±1.0% (full scale) | |||
Repeatability | 0.5% |
