All in one
vibration meter
vibration analyzer tester
Functions:
Easy operation, all functions can be completed with one button
Data Hold: √ (auto data hold when releasing the measure key)
Low battery indication: √
Auto Power Off: √ (auto power off 1 minutes after releasing the measure key)
Display Modes: Digital display
Battery Life: Continuous measuring time > 20 hours
Maximum Display: 1999
Specifications:
Model: UT311 All in one
Vibration Acceleration(O-P): 0.1~199.9m/s2 Frequency response: 10~1500Hz, Amplitude error: ≤±5%
Amplitude linear error: ≤2.0m/s2, ≤±10%; >2.0m/s2, ≤±5%
Vibration Velocity(RMS): 0.1~199.9mm/s ; Frequency response: 10~1500Hz, Amplitude error: ≤±5%
Amplitude linear error: ≤2.0mm/s, ≤±10%; >2.0mm/s, ≤±5%
Vibration displacement(P-P): 1~ 1999μm ; Frequency response: 10~500Hz, Amplitude error: ≤±5%
Amplitude linear error: ≤20um, ≤±10%; >20um, ≤±5%
General Characteristics:
Battery: 1 * 6F22/9V battery(not included)
Product Net weight: About 205g
Product Size: 185mm * 68mm * 30 mm
Product Colour: Red and Grey
Package Size: 29 * 22.5 * 6.8cm / 11.4 * 8.8 * 2.4in
Package Weight: 935g / 2.1lb

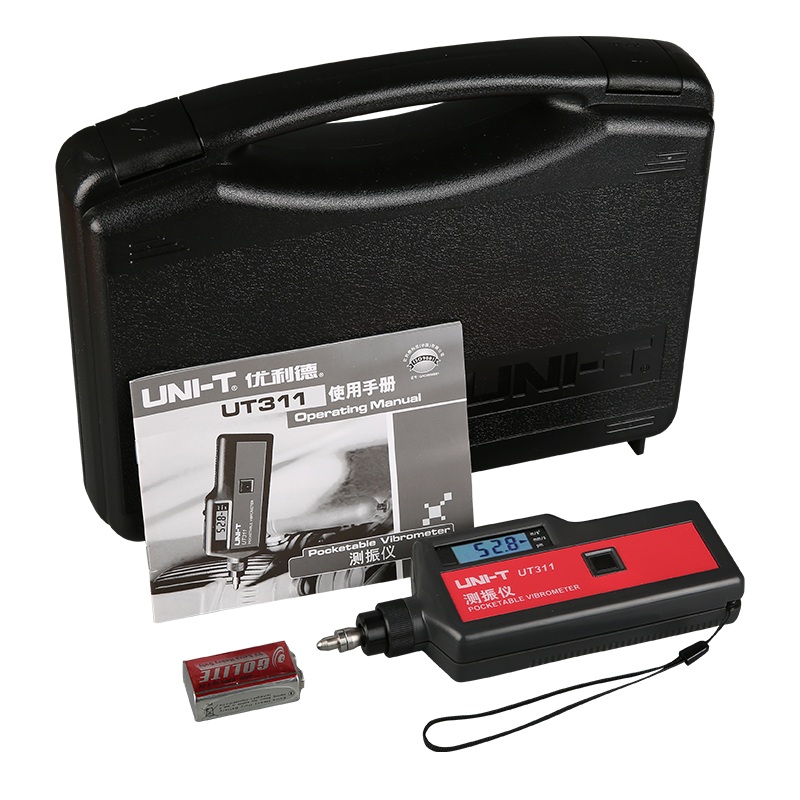

Package List:
1 * UNI-T UT311 Vibration Tester
1 * Carrying Case
1 * Manual
