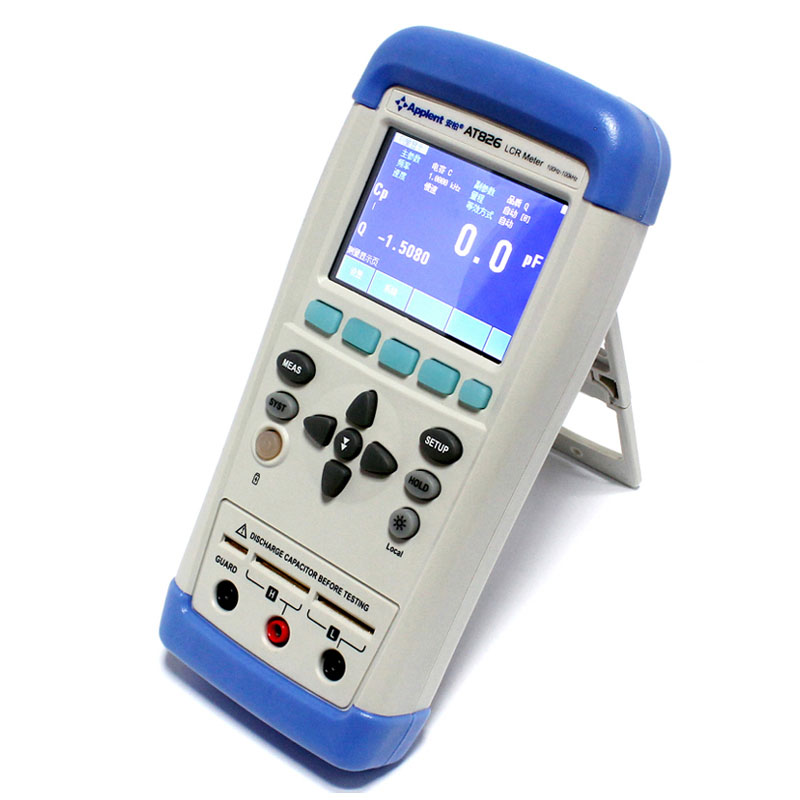

Automatic Or Manual Handheld Digital LCR Meter ESR Tester
Part No.: LCRM-826
Features:
-2.8 inch true-color 16M color TFT-LCD display;
-Touch screen(AT825A None),
-Data hold function;
-USB Port,
-Compatible SCPI instruction set;
-Witch in both English and Chinese;
-Adjustable back light; automatic power off
-Open/short scan frequency reset for each range
-Compare main parameters
-Open/short scan frequency reset for each range
-Compare main parameters
Specification:
| Parameters | L,C,R,Z |
| Monitor Parameters | D,Q,(deg),(rad)ESR |
| Accuracy | 0.2% |
| Frequency | 100Hz,120Hz,1kHz,10kHz,100kHz |
| Display Range | L: 0.01H-9999H D,Q: 0.0001 -9999 C: 0.01pF – 99.99mf (deg):-179.99-179.99 R,Z:0.0001 – 99.99M (rad):-3.1416 -3.1416 |
| Source Resistance | 100 |
| Range | Automatic or Manual |
| Display Max | Principle Parameter: 49999 Sub Parameter:49999 |
| Signal Level | 0.6Vrms |
| Speed | 4 times/second,1.5 times/second |
| Comparator | 1 sets, compare main parameters |
| Adjustment | Open/short scan frequency reset for each range |
| Interface | Build-in Mini-USB interface(virtual interface) Charging interface |
| Others | 2.8 inch true-color 16M color TFT-LCD display;touch screen(AT825A none),data hold function;USB communication,compatible SCPI instruction set;switch in both English and Chinese;adjustable back light; automatic power off |
| Adapter | Input:100-240V~50/60Hz 0.35A Output:9V 1A DC |
| Dimension & Weight | Outside(m):90(Width)x190(Height)x31(Depth) 400g |
| Accessories | ATL501C four-terminal Kelvin test clip ATL909 DC adapter ATL805 Li-battery *ATL105Mini-USB Communication cable *ATS826 Data acquisition software |
Package:
-ATL501C four-terminal Kelvin test clip
-ATL909 DC adapter ATL805 Li-battery
-ATL105Mini-USB Communication cable
-ATS826 Data acquisition software
