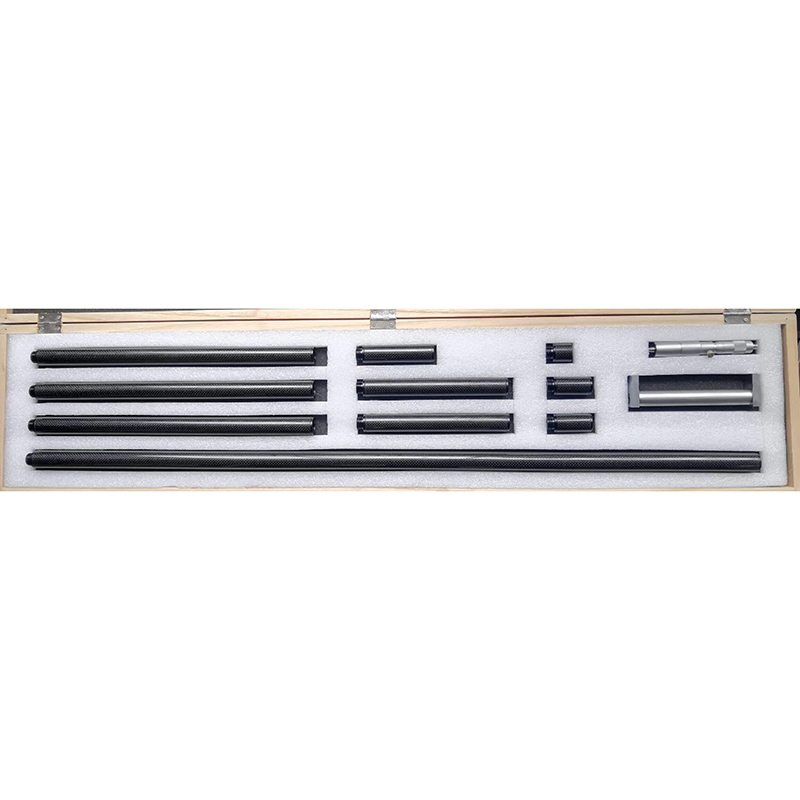

Carbon fiber tubular inside micrometer 100-6000mm
Very strong material and easy to carry. better quality than steel rods type.
- – Light in weight. Easy to handle for large size micrometer, Largly reduce the international shipping cost and easy to carry from one place to another.
- – High stiffness, high tensile strength, High Rigid
- – High chemical resistance, Anti acid
- – High temperature tolerance and low thermal expansion
- -More Accurate
Specification:
Order NO. | Range | Rods | Resolution |
---|---|---|---|
IM-250201 | 100-1000mm | 25,50,100(2pcs)200,400 | 0.01mm |
IM-250202 | 100-1200mm | 25,50,100(2pcs),200(2pcs),400 | 0.01mm |
IM-250203 | 100-1400mm | 25,50,100(2psc),200,400(2pcs) | 0.01mm |
IM-250204 | 100-1500mm | 25,50,100,200(2pcs),400(2pcs) | 0.01mm |
IM-250205 | 100-2100mm | 25,50,100,200,400(4pcs) | 0.01mm |
IM-250206 | 150-2100mm | 25,50,100(2pcs)200,400 | 0.01mm |
IM-250207 | 1000-2000mm | 25,50,100(2pcs)200,500 | 0.01mm |
IM-250208 | 1000-3000mm | 25,50,100(2),200,500,1000 | 0.01mm |
IM-250209 | 150-3000mm | 25,50(2),100,200(2),400(3),1000 | 0.01mm |
IM-250210 | 150-4000mm | 25,50(2),100,200(2),400(3),1000(2) | 0.01mm |
IM-250211 | 150-5000mm | 25,50(2),100, 200(2),400(3),1000(3) | 0.01mm |
IM-250212 | 150-6000mm | 25,50(2),100, 200(2),400(3),1000(4) | 0.01mm |
