Center Pitch Distance Offset Digital Caliper With Conical Tipped Jaw 500mm1000mm 1500mm

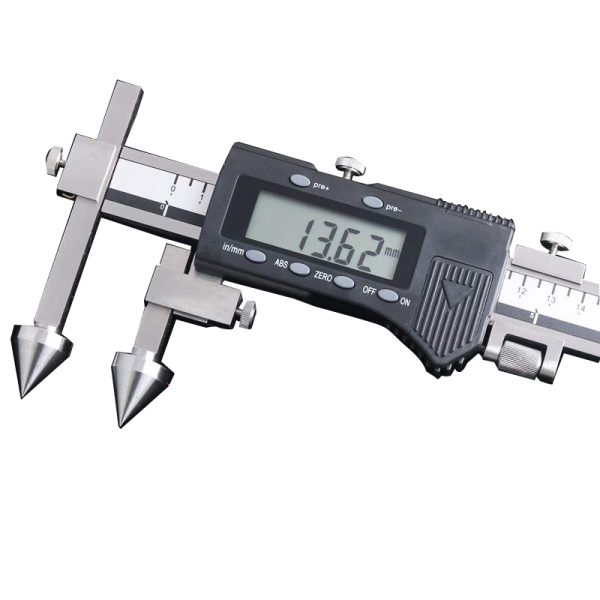

The caliper is featured with two conical measuring tips, which can measure distance of hollow holes. It is widely used in truck and car manufacturing, or other engineering inspection.
Features:
Specification:
Range | Part No | Resolution | Error | b mm | c mm | Φ mm |
10-150 mm | CPDC-11201 | 0.01 mm | ±0.04mm | 80 | 30 | 10 |
10-200 mm | CPDC-11202 | 0.01 mm | ±0.05mm | 80 | 30 | 10 |
10-300 mm | CPDC-11203 | 0.01 mm | ±0.07mm | 80 | 30 | 10 |
20-500 mm | CPDC-11204 | 0.01 mm | ±0.09mm | 125 | 45 | 20 |
20-600mm | CPDC-11205 | 0.01 mm | ±0.09mm | 125 | 45 | 20 |
20-1000 mm | CPDC-11206 | 0.01 mm | ±0.18mm | 125 | 45 | 20 |
20-1500mm | CPDC-11207 | 0.01mm | ±0.022mm | 20 |
