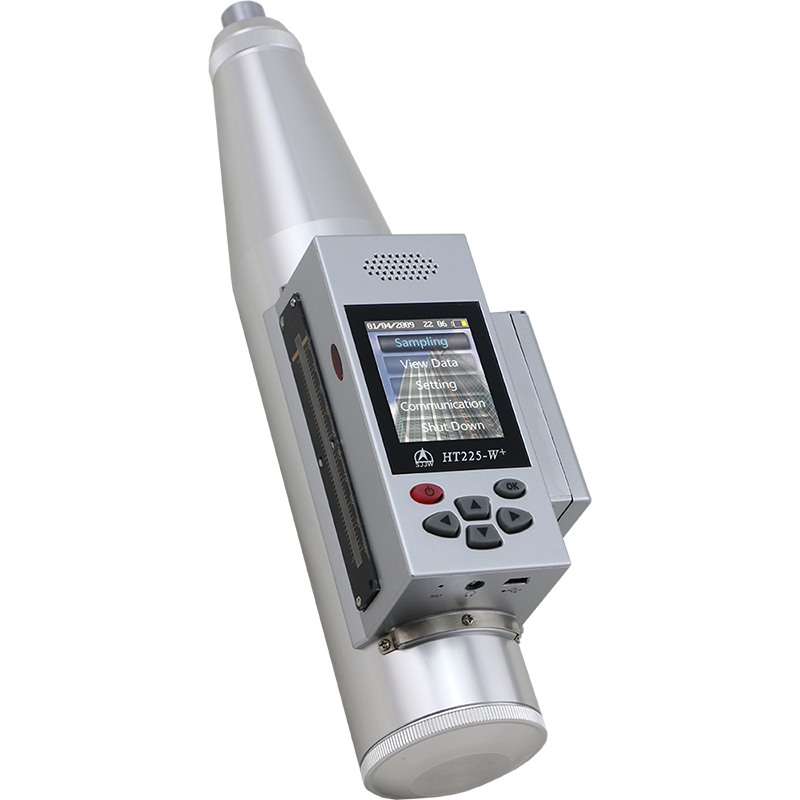

Concrete rebound test hammer sclerometer
Features:
-Unigu design Integrated sensor and body.
-Color LCD disply , Easy to read the data on the site.
-Powered by 4 pcs of AA alkaline batteries, Easy to change the battery and easy to find battery in the local market.
– Non-contact metal reflection grating + reflective encoder sensing, high accuracy (Market products for ordinary transmission-type grating -optocoupler sensor)
– Voice reported, LCD and scale readings are triple guarantee the accuracy of the data. Field work without electricity and still can get the measured results through using the scale readings. Voice reported can improve the efficiency of work at special environment. (Peer-products in the market have no voice and ruler functions.)
– Using USB port, Easy to output data to computer
– Easy to operate, Can set toloerance , the outliers can be automatically removed.
– Test hammer using imported parts, mechanical parts machining high precision, long service life. Superior price than the market peer-products.
Specification:
Measuring ranges: 10-60MPa
Impact energy: 2.207J
Spring constant: 785N/m
Spring extension: 75mm
The consistency of the sample showing values:≤±0.5 (Digital output sampling value difference with the cursor readings)
The average rebound values on steel anvil: 80±2
Display: 16-bit true color, 176 * 220 resolution, 5 grades backlight adjustment
Data storage: 255*100*16=408000 testing results, 20 special test strength curves could also be requested to add of their own.
Power: 4 AA alkaline batteries, 20000 times test.
Communication interface:USB2.0 full-speed
Weight:1.1Kg
