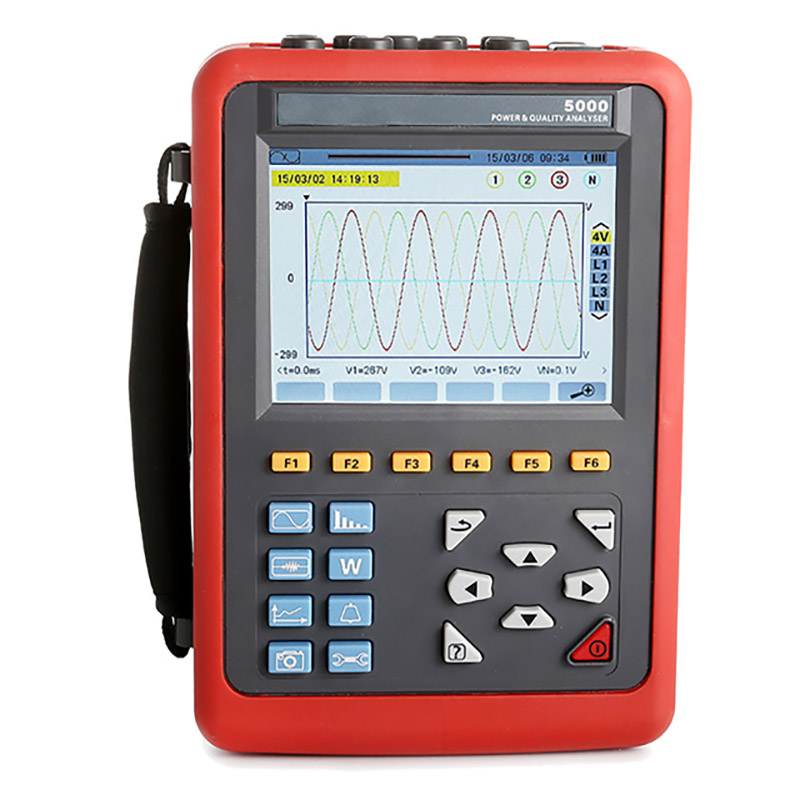

Digital Power Quality Analyzer 3 Phase 4 Channel Current And Voltage
Part No: PQAN-5000
Features:
Measure and analyze All type of voltage, current, power quality
Different Clamps can be choose
4 channel current and voltage.
Specification
fluence quantity | Test item | Datum condition | Working conditions |
ambient temperature | All parameters | (23+ 2) | -10C~ 40C |
relative humidity | All parameters | 40%~60% | <80% |
Phase voltage | All parameters | (100+ 1%) V | 1.0V~ 1000V |
Line voltage | True RMS value of line voltage | (200+ 1%) V | 1.0V~ 2000V |
Electric current | True RMS value | (5+ 1%) A | 10mA~ 1000A |
Power grid frequency | All parameters | 50Hz + 0.1Hz | 40Hz~70Hz |
phase shift | Active power measurement | CosPhi =1 | CosDiameter: 0.2~ 1 |
Reactive power and reactive power measurement | SinPhi =1 | SinDiameter: 0.2~ 1 | |
harmonic | All parameters | <0.1% | 0%~ 100% |
Voltage unbalance degree | All parameters | <10% | 0%~ 100% |
Instrument operating voltage | All parameters | DC9.8V+ 0.1V | DC9.5V~ 10.5V |
External electric field and magnetic field | All parameters | Should avoid | |
Measured wire position | Measurement of current related parameters | The measured conductor in the approximate position of the geometric center of the jaw |
2General specification
Power Supply | Rechargeable lithium battery pack 9.6V, external charger. |
Battery indicator | Battery symbol5grid Show the power, when the battery power is too low, prompted 1 minutes after the automatic shutdown. |
Power waste | Current 490mA, the battery is full of electricity for about 8 hours of continuous work. |
display mode | LCDColor screen, 640dots * 480dots, 5.6 inch display domain 116mm * 88mm. |
Jaw size | 008BTip small current clamp: 13Mm * 7.5mm;
040BCircular current clamp: 35mm * 40MM; 068BCircular current clamp: 68mm * 68mm. |
Instrument size | Long and wide:240mm*170mm*68 mm. |
Channel number | 4Road voltage, 4 current. |
Line voltage | 1.0V~2000V. |
Phase voltage | 1.0V~1000V. |
Electric current | 008BCurrent clamp: 10mA~10.0A;
040BCurrent clamp: 0.10A~100A; 068BCurrent clamp: 1.0A~1000A; Optional transformer: instrument port input current 1mA~500mA. |
frequency | 40Hz~70Hz. |
Electric quantity parameter | WVA, Var, PF, DPF, cos, Tan, Phi Phi. |
Electric energy parameters | Wh, Varh, Vah. |
harmonic | Yes, 0~50Time. |
Total harmonic distortion | Yes, 0~50Times, each phase. |
Expert mode | Yes. |
Transient recording | 150Group. |
Voltage flicker | Yes. |
Starting current mode | Yes, 100 seconds. |
Three-phase unbalance degree | Yes. |
Record | 300Day (record 20 parameters simultaneously, 1 points per 5 seconds). |
Min / Max
Record value |
There are, can be measured for a period of time the maximum and minimum value. |
Give an alarm | 40Different types of parameter selection, 12800 groups of alarm log. |
Peak value | Yes |
Phasor diagram display | Automatically. |
Screenshot capacity | 60A. |
Menu language | English and chinese. |
communication interface | USB |
Automatic shutdown | In the alarm / trend chart recording / transient capture mode (waiting or in the middle), the instrument does not automatically shut down. |
In other test mode, no button operation within 15 minutes, 1 minutes after the automatic shutdown. | |
Backlight function | There is, for the dark places and at night. |
Instrument quality | Host: 1.6kg (with battery); |
008BTip small current clamp: 170g * 4; | |
040BRound shape current clamp: 190g * 4; | |
068BRound shape current clamp: 510g * 4; | |
Test line and power adapter: 900g; | |
Total mass: about 7.8kg (including packaging). | |
Voltage test line | 3m |
Current clamp length | 2m |
Working temperature and humidity | -10C~ 40 degrees C; 80%Rh below. |
Storage temperature and humidity | -10C~ 60 degrees C; 70%Rh below. |
Input impedance | The input impedance of the test voltage is 1M. |
Pressure | The instrument circuit and the outer shell withstand 3700V/50Hz sine wave alternating current voltage for 1 minutes. |
insulation | Between the instrument line and the jacket shell is larger than 10M. |
structure | Double insulationInsulation anti vibration jacket.Digital Power Quality Analyzer 3 PhaseDigital Power Quality Analyzer 3 PhaseDigital Power Quality Analyzer 3 Phaseharmonic |
