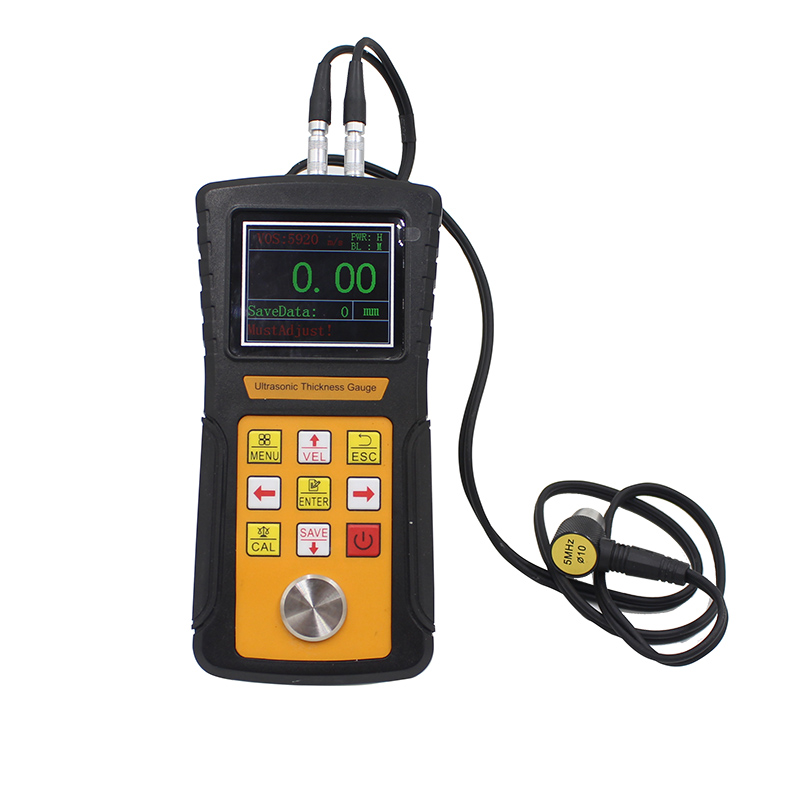

Digital ultrasonic thickness gauge with 3000 values of saved data
Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
Specification:
Display:128*64 LCD with LED backlight;
Measuring Range:(0.75~600)mm(Steel)
Velocity Range:(1000~9999) m/s;
Resolution:0.01mm
Measuring accuracy:: ±(0.5%H+0.04mm);H is thickness value;
Measurement cycle:Single point measurement 6 times/per;
Storage:3000 values of saved data
Connect: R232 port
Power Source:2pcs 1.5V AA size
Working Time:more than 50 hours (LED backlight off).
Outline Dimensions:145mm*74mm*32 mm
Weight:245g
Function:
Capable of performing measurements on a wide range of material, including metals,plastic,ceramics,composites,epoxies,glass and other ultrasonic wave well-conductive materials.
Can collocate variety different frequencies,wafer sizes of probes;
Sound Velocity Calibration function as a known thickness;
Coupling status indicator showing the coupling status;
EL backlight, and convenience to use under dark environment;
Have the battery indicator function, can real-time display the remaining power
Auto sleep and auto power off function to conserve battery life;
Smart, portable,high reliability, suitable for bad environment, resist to vibration, shock and electromagnetic interference.

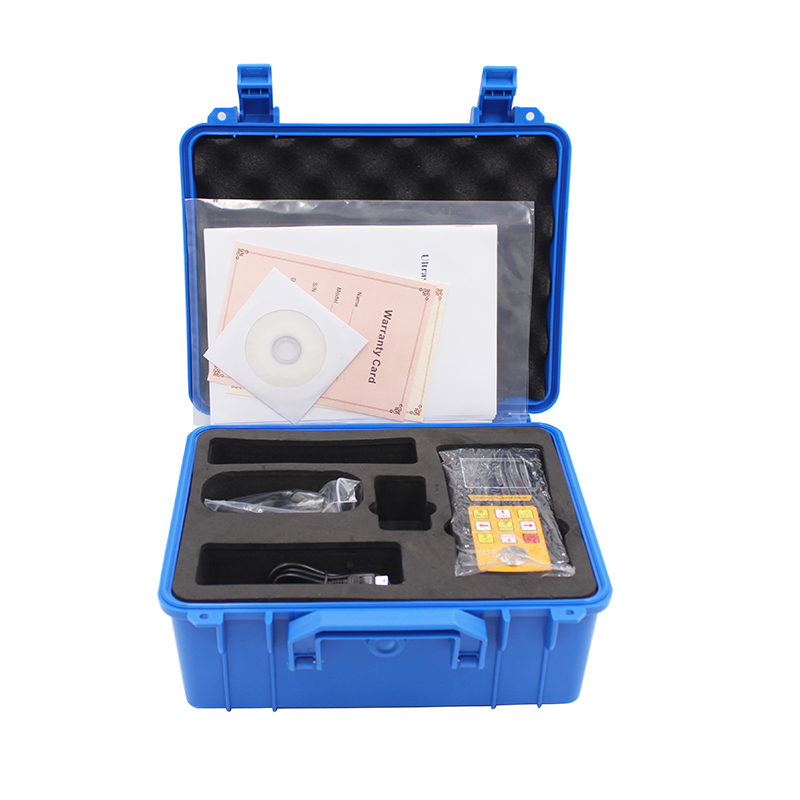

Packing List
No. | Name | QTY | Notes | |
Standard Configuration | 1 | Main Body | 1 set | |
2 | Standard Probe(5MHz,D10mm) | 1 pc | ||
3 | Couplant | 1 pc | ||
4 | ABS Case | 1 pc | ||
5 | Product Certificate | 1 pc | ||
6 | Warranty Card | 1 pc | ||
7 | Manual | 1 pc | ||
8 | 1.5V AA size | 2 pcs | ||
Optional
Accessories |
9 | Large diameter probe(2.5MHz) | ||
10 | Large range probe(2MHz) | |||
11 | Micro-diameter probe(7MHz) | |||
12 | High temperature probe(5MHz) | |||
13 | High temperature couplant |
