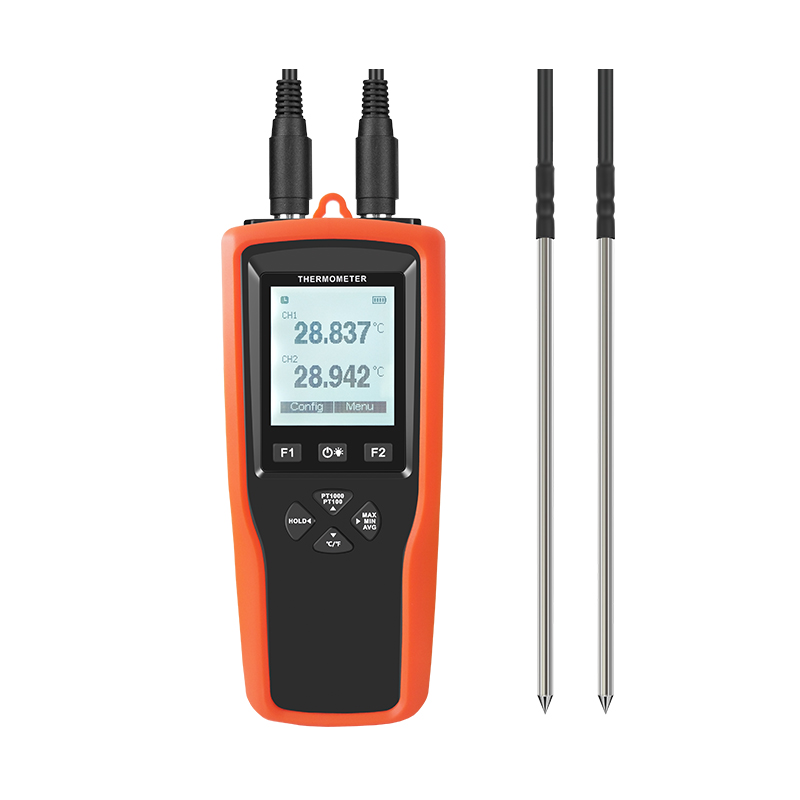

Dual channel thermometer with PT100 and PT1000 supported
【FEATURES】
· 32-bit high-speed low-power MCU
· Dual channel
· PT100 and PT1000 supported
· Resolution up to 0.001℃
· Factory accuracy up to ±(0.05%|t|+0.05)℃
· Accuracy up to ±0.015℃ after point calibration
· Measuring range -200~800℃
· Temperature difference value between two channels displayable
· Display temperature graph
· Temperature over-limit alarm
· Maximum, minimum and average data displayable
· Sample interval 1 time/second
· 20000 groups of readings recordable (INTH-1208B)
· 4 different formats of files generated (INTH-1208B)
· Multiple power supply supported
· Large dot matrix LCD screen with high quality backlight
Specification
Model | INTH-1208A | INTH-1208B |
Channel | 2 | |
Data Recording Function | NO | YES |
Probe Type | PT100 and PT1000 | |
Unit | ℃, ℉ | |
Measuring Range | -200~800℃ | |
Resolution | PT100: 0.01℃(-200~800℃)
PT1000: 0.001℃(-99.999~99.999℃) 0.01℃(Others) |
|
Accuracy | PT100: ±(0.05%|t|+0.10)℃
PT1000: ±(0.05%|t|+0.05)℃ |
|
Measuring Speed | 1 time/second | |
Calibration | Multi-point calibration | |
Data Storage Capacity | NO | 20000 groups of readings |
Sample Interval | NO | Adjustable from 1~86399 seconds |
File Format | NO | Txt, csv, xls, dlg |
Compatibility | NO | Windows XP/Vista/7/8/10 |
Display | Dot matrix LCD display with backlight | |
Operation Temperature | -10~50℃(Non-condensing) | |
Storage Temperature | -20~60℃(Without battery) | |
Power Supply | 3 PCS 1.5V AAA alkaline battery
3 PCS 1.2V AAA rechargeable battery 5V USB (Not recommended) |
|
Battery Life | About 120 hours (Condition: Instrument continues to work, backlight is off, battery capacity is 1200mAh and environment temperature is 25℃) | |
Protection Class | IP52 | |
Dimension | 174*73*40mm | |
Weight | About 210g (Not including batteries and probe) | |
Warranty | 12 months |
Packing list:
thermometer *1
manual*1
K type probe 1 set
