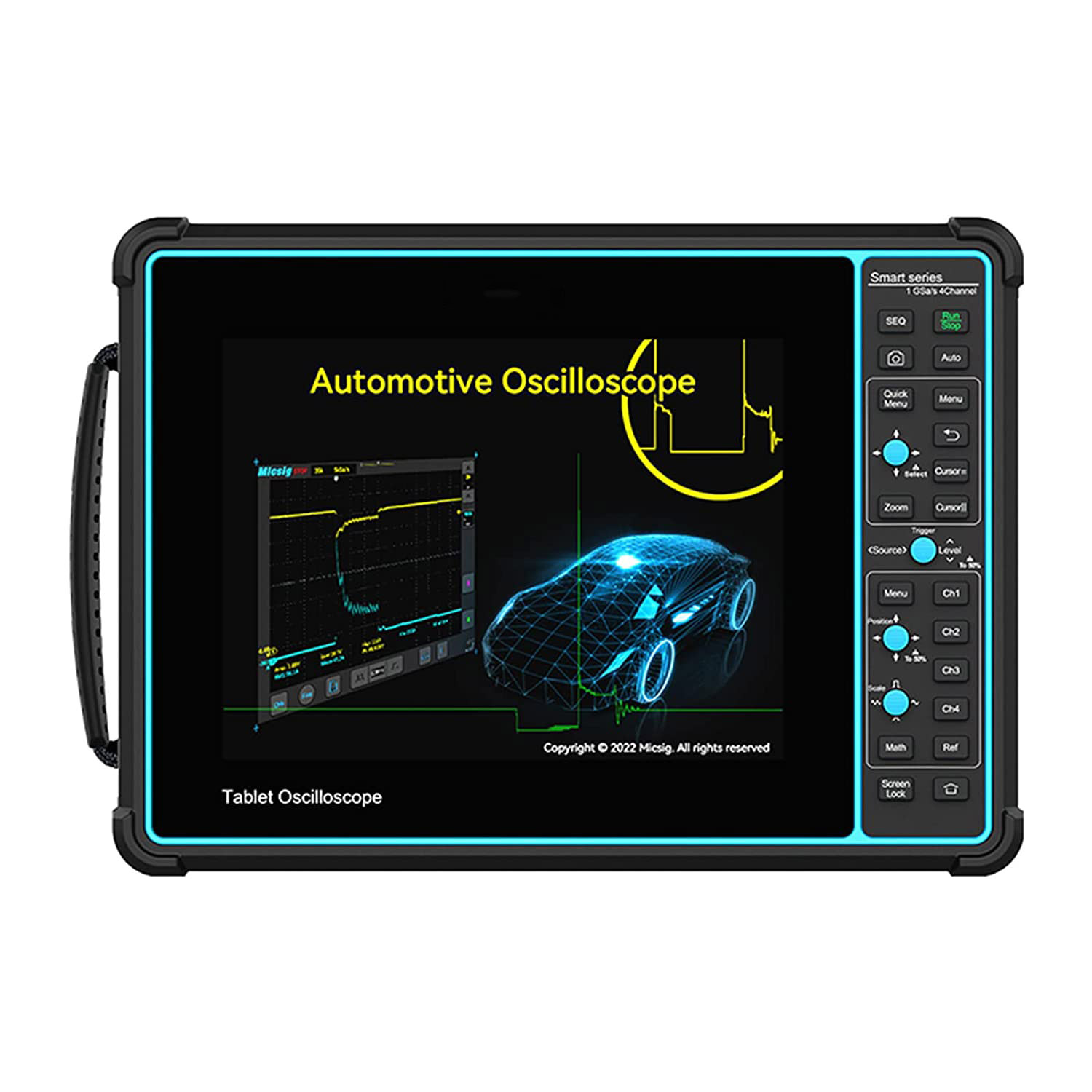

Handheld digital automotive oscilloscope
Specifications
Bandwidth | 100 MHz |
Sample rate | 1 GSa/S (single channel) |
Memory depth | 70 Mpts (single channel) |
Capture rate | 130.000 wfm/s |
Vertical scale | 1 mV/div – 10 V/div |
Horizontal scale | 2 ns/div – 1 ks/div |
Decoding type | UART, I2C, SPI, CAN, LIN |
Display | 8″ Touchscreen LCD, 800 x 600 px. |
Internal storage | 32 GB |
Interfaces | Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out |
Battery | 7500 mAh (approx. 5 hours) |
Dimensions | 265 x 192 x 50 mm |
Weight | 1.9 kg (with battery) |

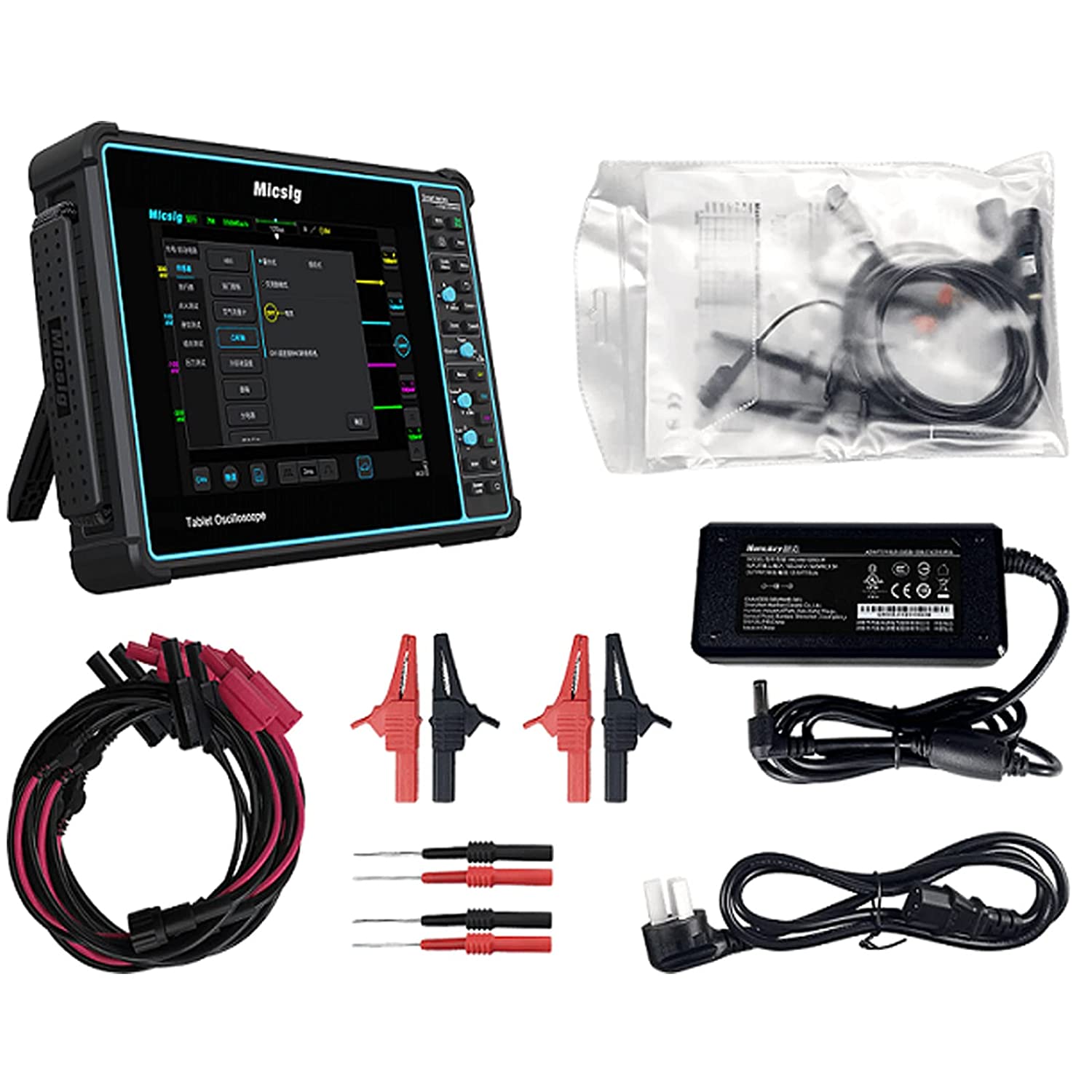

Accessories
The SATO1000 series are shipped with the following:
- Battery (built-in)
- 2x Passive probe
- 4x BNC – banana cables
- 2x Pair of test needles
- 2x Pair of alligator clips
- Screen protector
