HomeProductsDimensional ToolsMicrometer IP 54 water proof digital 3 point internal micrometer 6-100mm
Previous product
IP54 water resistance digital 3 point inside micrometer 6-12mm
Back to products
Next product
Three Point Internal Micrometer 50-300mm
Hot
digital three point micrometer
Click to enlarge

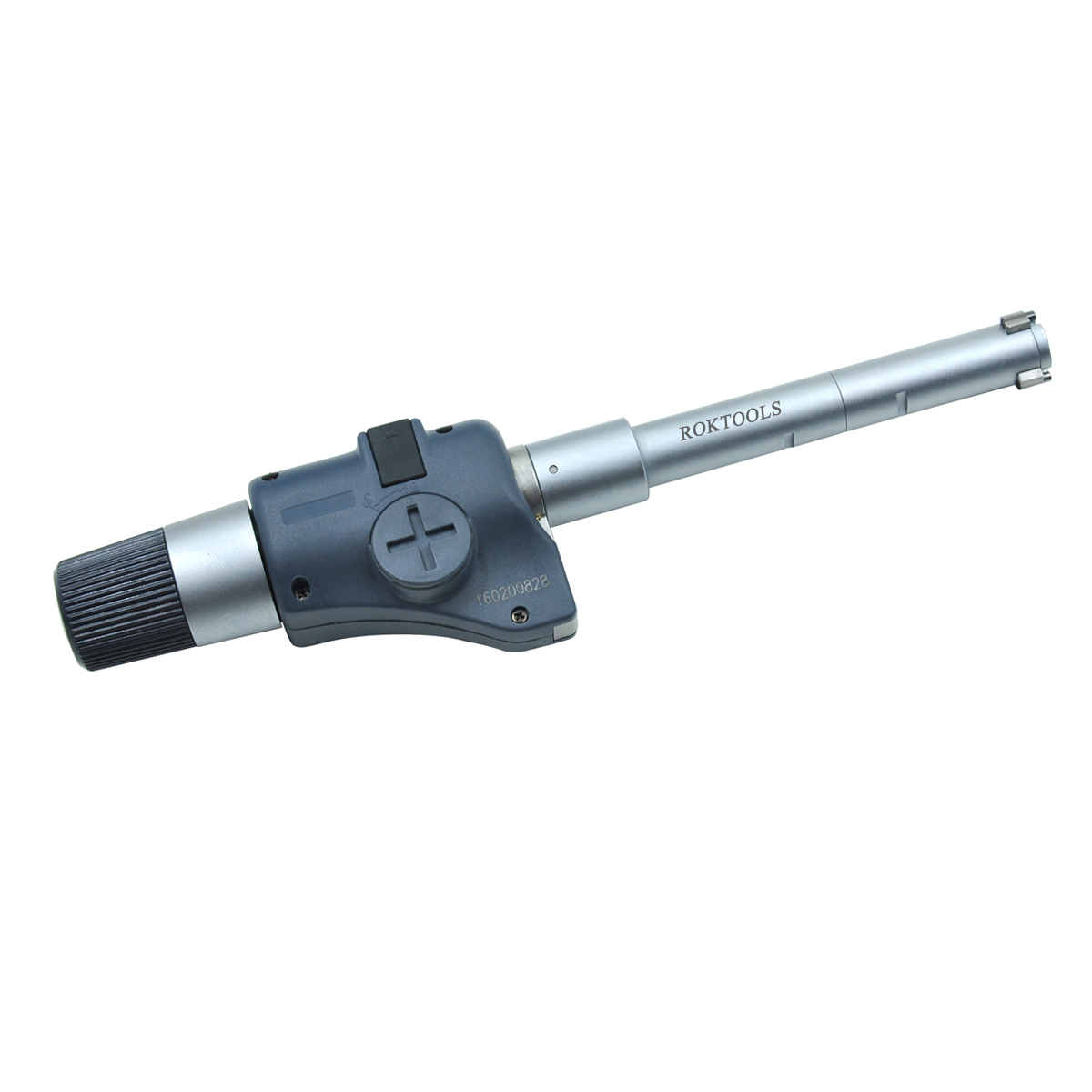

IP 54 water proof digital 3 point internal micrometer 6-100mm

Part NO: IM-321201

INQUIRE NOW
Categories: Inside Micrometer, Dimensional Tools, Micrometer Tags: 3 point internal micrometer, digital 3 point micrometer, internal micrometer
Share
  • Description
  • Shipping & Delivery
  • Shipping Methods
  • Payment Methods
Description

IP 54 water proof digital 3 point internal micrometer 6-100mm

Features:

     Large display.
     Resulution: 0.001mm/0.00005inch
     Can measure deep hole with extension rod.
Metric
Order No. Range Accuracy Setting Ring Measuring Depth Rods
IM-321201 6-8mm 0.004mm 6mm 54.5mm 100mm
IM-321202 8-10 0.004mm 8mm 54.5mm 100mm
IM-321203 10-12 0.004mm 10mm 54.5mm 100mm
IM-321204 12-16 0.004mm 16mm 80mm 150mm
IM-321205 16-20 0.004mm 16mm 80mm 150mm
IM-321206 20-25 0.004mm 25mm 90mm 150mm
IM-321207 25-30 0.004mm 25mm 90mm 150mm
IM-321208 30-40 0.004mm 40mm 97mm 150mm
IM-321209 40-50 0.005mm 40mm 97mm 150mm
IM-321210 50-63 0.005mm 62mm 114mm 150mm
IM-321211 62-75 0.005mm 62mm 114mm 150mm
IM-321212 75-88 0.005mm 87mm 114mm 150mm
IM-321213 87-100 0.005mm 87mm 114mm 150mm
Shipping & Delivery

Shipping policy:

All the weight is based on weight and size weight (bulk weight) calculated by courier or post. ROKTOOLS will not be liable for delays in delivery or other services caused by acts of God, acts or threats of terrorism, computer or electronic disruptions, failure of suppliers to deliver on time, or other circumstances beyond roktools control

Shipping time:

Most of order will be shipped within 3-90 business days with the courier, sea, land , train customers chosen.  For special products or OEM products, the delivery time is indicated on the page.  Do not place order when you are in urgent.  And we do not accept any claim or refund on delivery time. Placing order means customers accept delivery time.

Courier or post Delivery time:

We cannot order or control courier delivery time once we hand the products to courier or post.  Any question, please call them for updated information.

Remote fee charged by courier

Courier will charge extra fee for remote  , you can vist  DHL , FedEx  UPS , TNT  to see if your area is in the remote list.  We cancel the order if you fail to pay such fee.

Delivery areas:

We deliver to the following countries: Germany, Austria, Switzerland and Belgium, Bulgaria, Denmark, Estonia, Finland, France, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Liechtenstein, Luxembourg, Netherlands, Norway, Poland, Portugal, Romania, Russia, Sweden, Switzerland, Slovakia, Slovenia, Spain, Czech Republic, Hungary, USA. Please find information about delivery costs below. We usually do, but currently do NOT ship to: UK and Norway. Please visit this site frequently for updates or contact our customer service.
Shipping Methods

By courier: such as DHL, UPS, TNT, FedEx  3-15 days

By post:  China Post, Dutch Post, HK Post 15-60 days

By sea  For large bulk products, it normally need 15-45 days.

Pick up by customers forwarder

We accept Exwork, FOB, DAP Terms

Payment Methods
Payment Methods
We accept main currencies: USD , EUR, GBP, CAD, AUD, JPY NZD, CHF, RMB
We have local account in Europe, Austria, United Stead,  Customers don't need to remit currency. It is like your local transfer without any fee ( business only, do not accept personal transfer)
Westernunion
Moneygram
Credit card
Payoneer
PayPal(6% fee)
