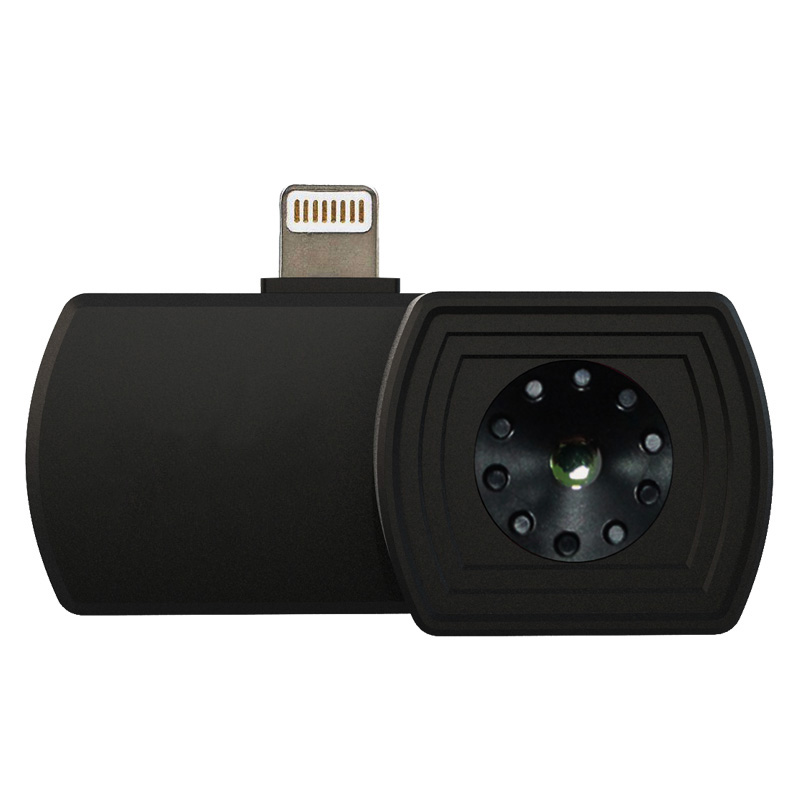

Mobile phone IR Imager temperature thermal imaging camera
Features:
1. Thermal imaging can be used both day and night, as long as the object (heat energy) emits infrared light, it can receive the image within a certain distance.
2. Easy to use, simple operation. Just download the “software” on the mobile phone, and then plug the thermal imager into the mobile phone, the software will be automatically opened and used immediately.
3. We have equipped you with a micro USB adapter, which can be used easily even if your phone is not a Type-C interface.
4. Made of high-quality materials, strong practicability and long service life.
5. Equipped with a high-level storage box, can protect the thermal imager, high-level waterproof.

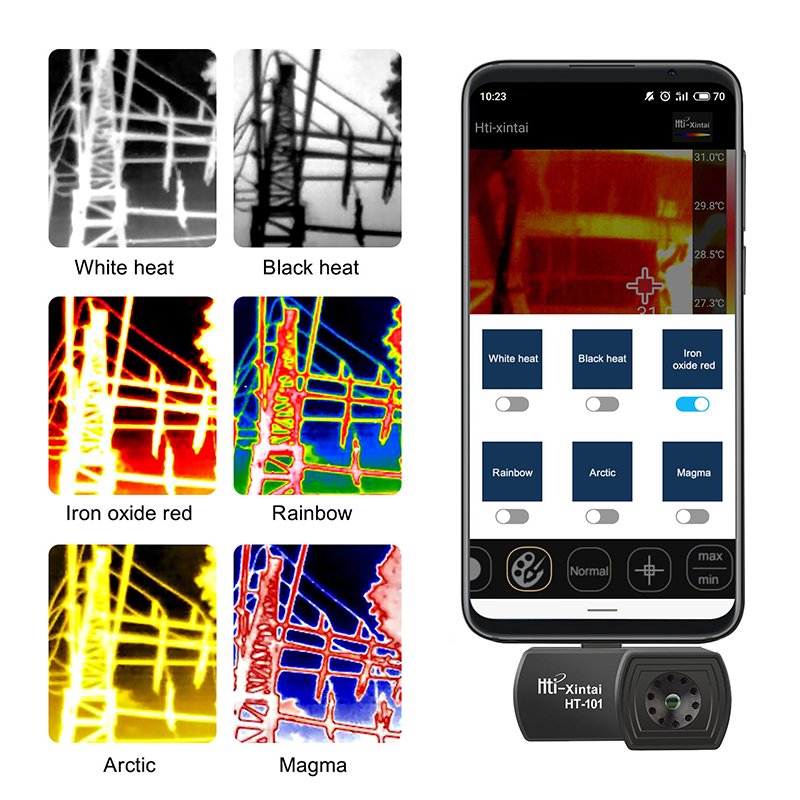

6. Functions: center point temperature display, point temperature measurement, image fusion, mirroring, temperature unit setting, color palette setting, face detection on/off, photo, video, picture/video viewing.
Specification:
Temperature measurement range: -40℃ to 330℃
Working band: 8 -14μm
Field of view/focal length: 27°×35°
Infrared image resolution: 220×160
Picture format: jpg
Video format: mp4
Frame rate: 9Hz
Focal length: fixed
Detection range: 300m
The shortest focal length: 0.15m
Target size: cover 4 pixels
Operating temperature range: 0 ℃ to 40 ℃
Storage temperature range: -20℃ to 60℃
Plug: Type-C (with micro USB adapter)
Power supply: 5V (power supply for external equipment)
Weight: 40g
Package Includes:
1 x Mobile Phone External Thermal Imager
1 x Micro USB adapter
1 x Advanced Waterproof Storage Box
1 x User Manual
