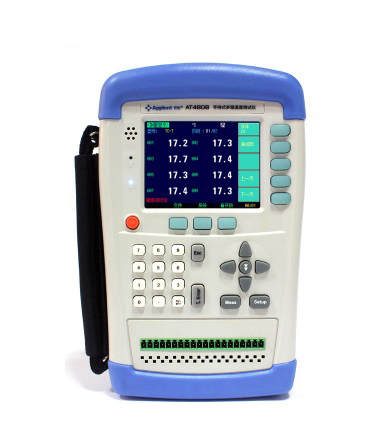

Multichannel handheld temperature tester meter
Feature:
1. It is a handheld multi-channel temperature tester controlled by ARM microprocessor. Sampling multi-channel parallel test, 8-channel temperature acquisition, alarm and communication transmission are carried out.
2. Compatible with a variety of temperature sensors, fast response, stable data, and with the function of couple fault detection.
3. It has good compatibility with large capacity memory and strong PC communication ability.
4. Use of strong vibration resistant shell, can work in harsh environment, fully isolated digital and analog signals, safe and reliable.
5. Suitable for household appliances, electric motors, heating appliances, thermostat, transformer, oven, thermal protector, power supply, lighting, electric power, LED, etc.
6. Wide adaptability, support K/N/E/J/T/R/S/B thermocouple, the test range is from -200℃ to 1300℃.
Specification:
Condition: 100% Brand New
Item Type: Temperature Tester
Material: ABS+Metal
Model AT4808
Graduation Thermocouple: J/K/T/E/S/N/B Type
Accuracy 0.2%+1℃
Measuring Range -200℃~1300℃(The test range varies with the graduation)
Resolution 0.1℃
Channel
8 Channel, can be extended to 128 channels
Scanning Speed Fast: 100ms/ channel
Medium Speed: 500ms/ channel
Slow Speed: 1s/ channel
Calibration Error correction per channel
Comparator Over/Below Alarm
Each channel sets up and down the value separately
Standard Interface U Disc Port
USB Communication Interface
Standard Software ATS45 Data Acquisition Software
Cold Junction Compensation Accuracy: 0.5℃
Others TFT-LCD True color liquid crystal display, couple detection function
Power Requirements Input:100-240V ~ 50/60Hz 0.35A
Output:9V 1A DC
7.4V, Li, 2200mAh Rechargeable Battery
Size and Weight Size(mm):130.23(Width)x210.76(Height)x37.88(Depth)/ 5.1×8.3×1.7in
Weight:1660g / 58oz
Package List:
1 x Host
1 x T Type Thermocouple
1 x DC Power Adaptor
1 x Bag
1 x Li Battery
1 x Mini-USB Communication Cable
1 x U Disc
1 x Instruction
