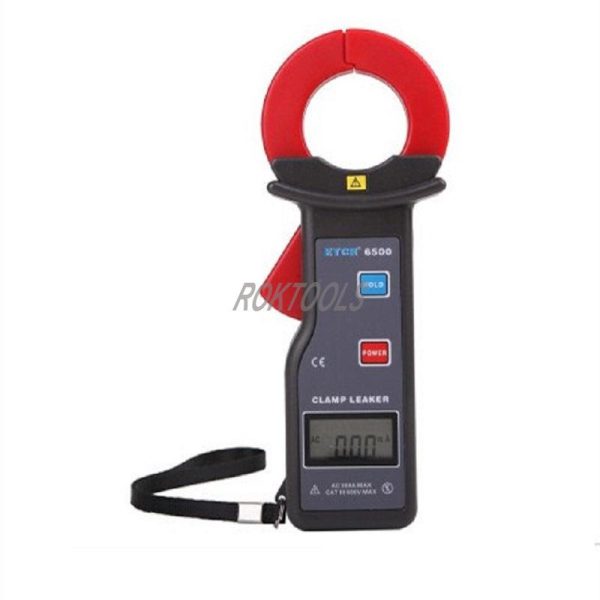

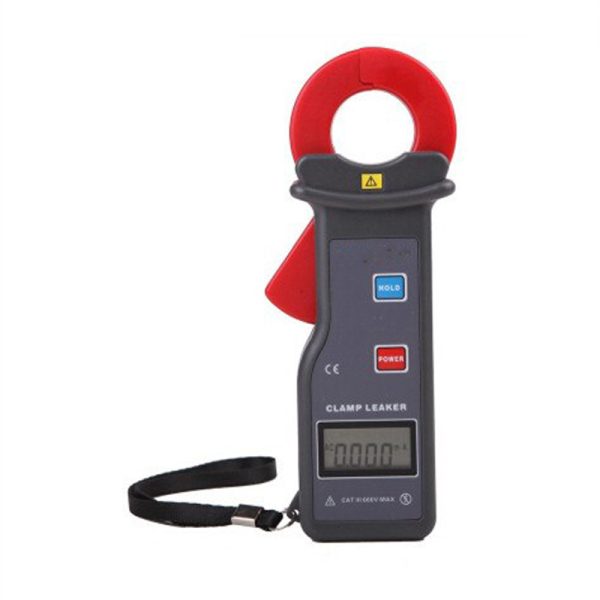

On-Line AC Leakage Current Clamp Meter Tong Tester
Product description
Function: Measurement of DC leakage current, DC current, Car leakage
Power: Zn-Mn dry battery,6F22, 9V DC, continuous use for 60 hours
Test Mode: Clip-on CT, Magnetic modulation
Clamp Size: 25mm×30mm
Range: 0.0mA~6.00A DC
Resolution: 0.1mA DC
Accuracy: ( 23°C±3°C, below 70%RH)0.0mA~300.0mA DC: ±2%rdg±5dgt0.30A~6.00A DC: ±2%rdg±5dgt
DimensionLWH:175mm×70mm×38mm
LCD Dimension: 35mm×21.5mm; display domain:32mm×15mm
Sampling Rate: About 2 times/s
Range Shift: 0.0mA~6.00A DC Automatically
Zero-Adjustment: Yes, calibrate zero before measuring
Polarity Indication: Auto identified and display”-”
Test Position: Tested wire in the jaw center
Line Voltage: 600V DC
USB Interface: Data stored in the memory of the meter via USB upload to PC, or on-line monitoring
Data Memory: 99units,FULL blinks when the memory is full
Peak Hold: Push HOLD without release, the meter will show the peak value during the pushing period
Reading Hold: DH indicating the reading is hold
Out of Range: OL indicating the current is out of range
Auto Power-off: 5 Minutes after power on, it will power off automatically to lower the power consumption
Battery Voltage:Indicating the battery voltage is lower than 7.2V. Then the battery have to be changed
Weight: 120g( including the battery)
Working Current: 20mA
Limit Temperature Error: -10°C~0°C and 40°C~50°C,within 2%rdg
Temperature and HumidityWorking : -10°C~50°C,below 80%rhStorage : -10°C~60°C,below80%rh
Insulating Strength: AC3700V/rms(between the alloy of the clamp and the housing)
Applicable Safety Rules: IEC1010-1, IEC1010-2-032, Pollution degree 2, CAT III (600V)
Chart
| Function | AC leakage measurement, AC current measurement, On-line AC current measurement |
| Power Supply | 6F22,9V (Not include) |
| Process Type | Clamp CT, Integral Approach |
| Display Type | 4 Digits LCD |
| Clamp Size | 25mm×30mm |
| Meter Dimension | LWH: 175mm×70mm×38mm |
| LCD Dimension | 35mm×21.5mm; Display Dimension: 32mm×15mm |
| Sampling Rate | 2 Times/Second |
| Frequency | 50Hz, 60Hz Automatic identification |
| Shifting | Automatic Shift |
| Measuring Range | 0.000mA~60.00A |
| Resolution | 1uA |
| Accuracy | ±1.5%±5dgt (23℃±3℃, below 70%RH) |
| Line voltage | Below AC 600V |
| RS232 Interface | With RS232 interface, Data stored in the memory can be uploaded to the computer, with software monitoring |
| Data Memory | 99 sets, “FULL” Blinking when memory is full |
| Peak Maintaining | Peak value capture hold function, press HOLD without Release to display peak value |
| Reading Hold | Reading hold function: “DH” symbol display |
| Overflow display | Range overflow function: “OL” symbol display |
| Automatic Shutdown | 5 minutes after the boot |
| Battery Detection | When battery voltage is lower than 7.2V, low battery symbol will shown to remind battery replacement. |
| Meter Weight | 120g (With battery) |
| Rated Power | 5mW |
| Working Temperature and Humidity | 0℃~40℃; below 80%rh |
| Storage Temperature and Humidity | -10℃~60℃; below 70%rh |
| Insulation Strength | AC2kV/rms (between core and box) |
| Safety Provisions | IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V) |

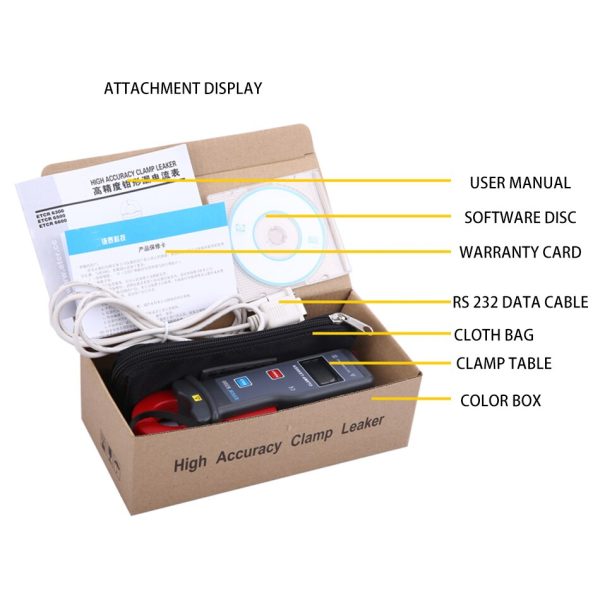

| Accessories | Meter: 1 piece, RS232 Com-cable:1 piece; Software Disk: 1 piece; |
