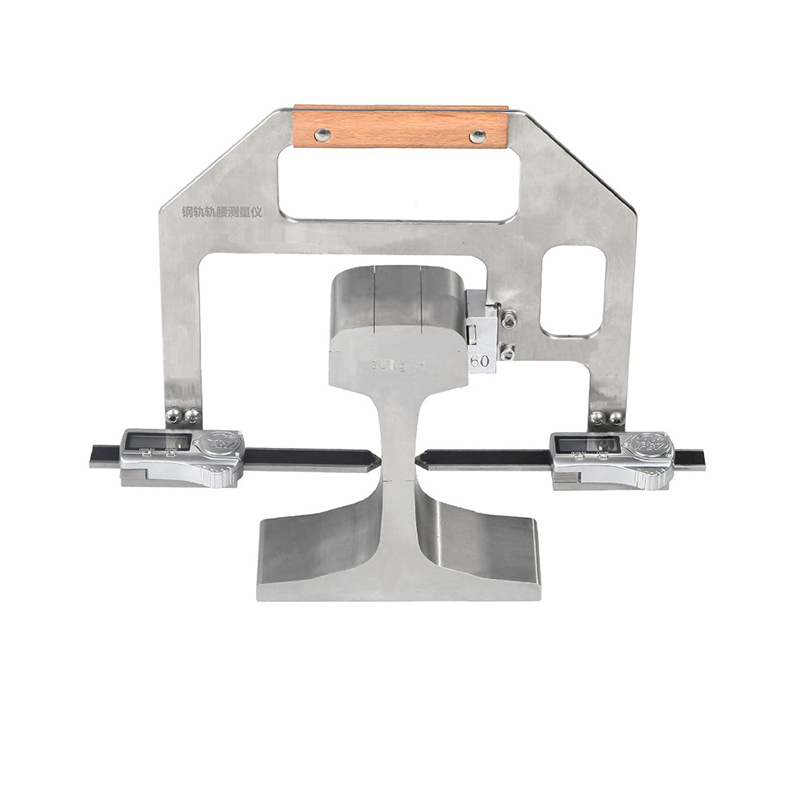

Rail web thickness gauge
It is an special tools for measruing rail web thickness by two calipers attached, the gauge is featured with magnetic locationer, fast measurement, for different rails, the inspector only change the locator blocks.
Part NO | Web | Standard |
RATT-11309-43 | To Foot 62.5mm | 14.5mm |
RATT-11309-50 | To Foot 68.5mm | 15.5mm |
RATT-11309-60 | To Foot 79mm | 16.5mm |
RATT-11309-75 | To Foot 80.4mm | 20mm |
Specification:
Range: 0-120mm
Accuracy: 0.05mm
Type: Digital
Power: 1.5V LR44 battery
Working Temp: -10-~40 cel degree
