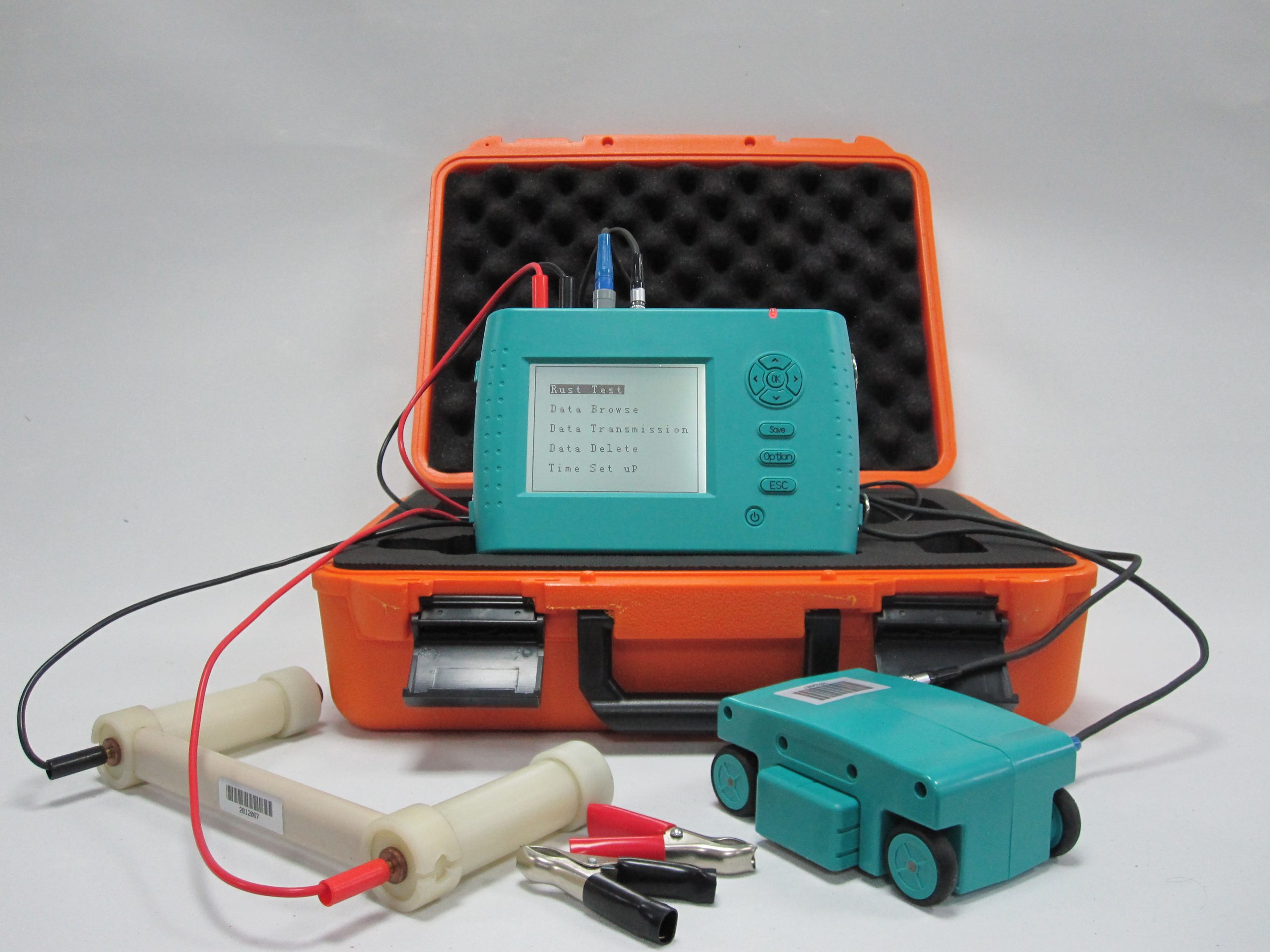

Rebar locator / rebar corrosion detector
–Test concrete member internal reinforcement position, rebar spacing, reinforcement position distribution.
–Estimation bar diameter
–Detection of Cable and Plumbing pipe
–Detection of steel corrosion extent
Bar diameter application range(mm) | Φ6 – Φ50 | |
maximum value permissible error of Bar diameter | ≤±1 | |
Protective layer thickness measuring range | ||
The first measuring range (mm) | 6 – 90 | |
The second measuring range (mm) | 7-180 | |
The maximum error of reinforced protective layer thickness test value | ||
The first measuring range (mm) | The second measuring range (mm) | |
6 – 59 | 7 – 79 | ≤±1 |
60 – 69 | 80 – 119 | ≤±2 |
70 -90 | 120 – 180 | ≤±4 |
Work temperature ℃ | -50 | |
relative humidity RH | < 90% | |
power supply mode | Alkaline cell X 6 |
Measuring Potential | ±2000mV |
Test accuracy | ± 1mV |
Measuring Space | 1-99 cm (adjustable) |
Ambient Temperature | -10℃~+40℃ |
Environment Requirement | to avoid direct exposure to the sun for a long time. |
Relative Humidity | <90%RH |
Electromagnetic Interference | no strong alternating electromagnetic field |
