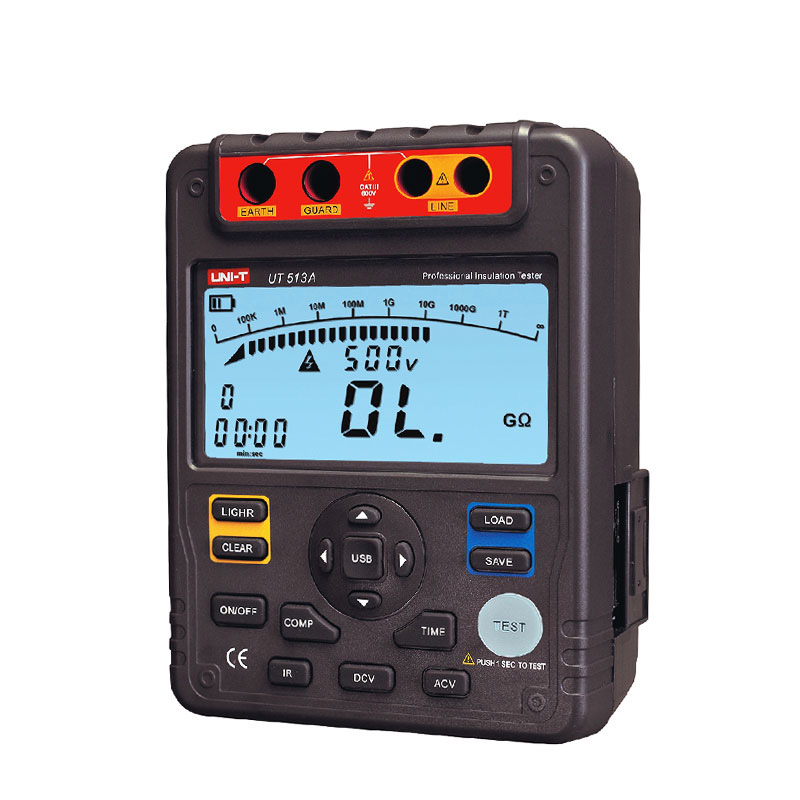

Secondary Display 500V-5000V Autoranging Insulation Resistance Tester
Features:
Part No.:UT513A
– Large 9999 display with 30-segment analog bar graph to show tolerance
Specification:
Specifications | Range | UT513A | |
Insulation resistance (Ω) | Test voltages | 500V~5000V | 0%~20% |
500V | 0.5MΩ~20GΩ | ±(3%+5) | |
1000V | 1MΩ~40GΩ | ±(3%+5) | |
2500V | 2.5MΩ~100GΩ | ±(3%+5) | |
5000V | 5MΩ~1000GΩ | ±(3%+5) | |
DC voltage (V) | 600V | ±(2%+3) | |
AC voltage (V) | 600V | ±(2%+3) | |
Short-circuit current | >3mA | ||

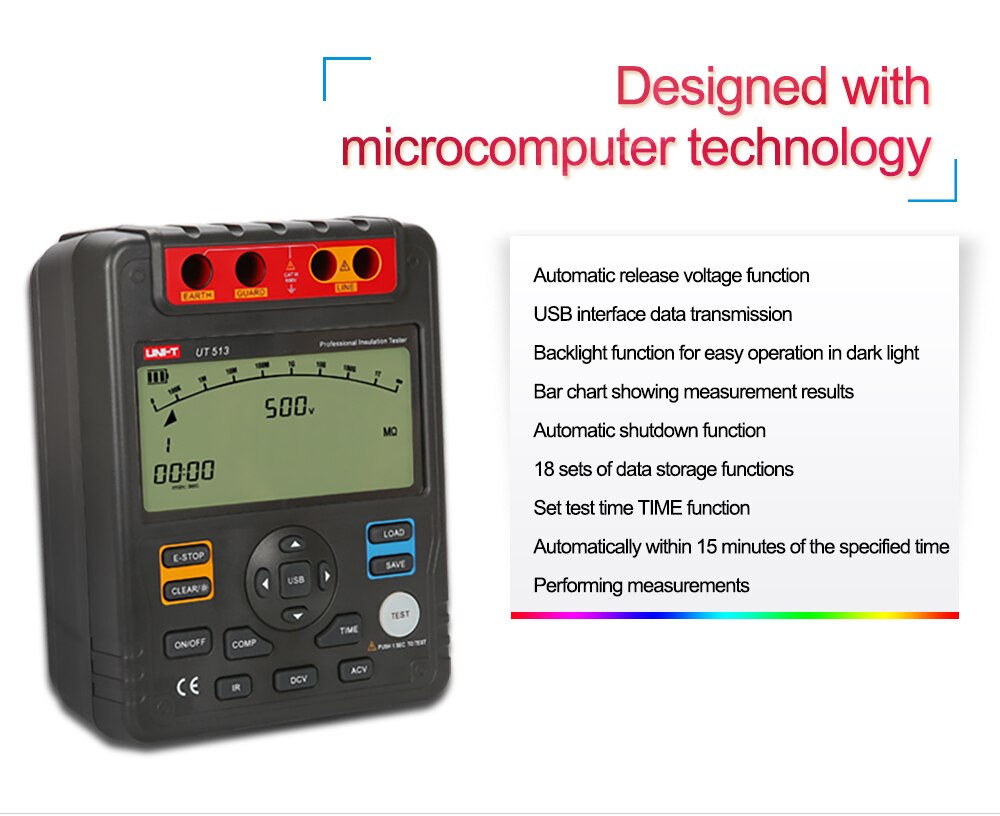

Features | |||
Auto range/Auto power off | YES | ||
Test voltage secondary display | YES | ||
Low battery indication | YES | ||
Data storage | 18 | ||
Comparison measurement | YES | ||
Polarization index (PI) | YES | ||
Dielectric absorption ratio (DAR) | YES | ||
USB interface | YES | ||
Analog bar graph | 30 | ||
LCD backlight | YES | ||
Over-range warning | YES | ||
High voltage indication | YES | ||
Timing measurement | Around 15 minutes | YES | |
Meets IEC 61557 | 61557-1:2007; 61557-2:2007 |

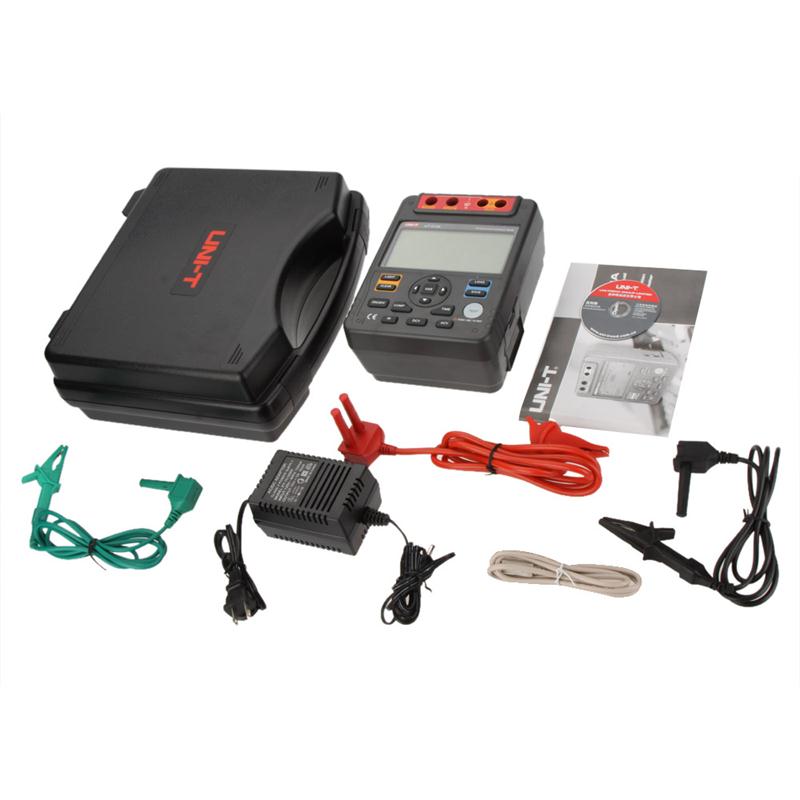

Packing List:
2pcs of one plug test lead to one alligator clip (black and green),
1pcs of two plugs test lead to one alligator clip (red),
USB cable,
PC software CD,
power adaptor
