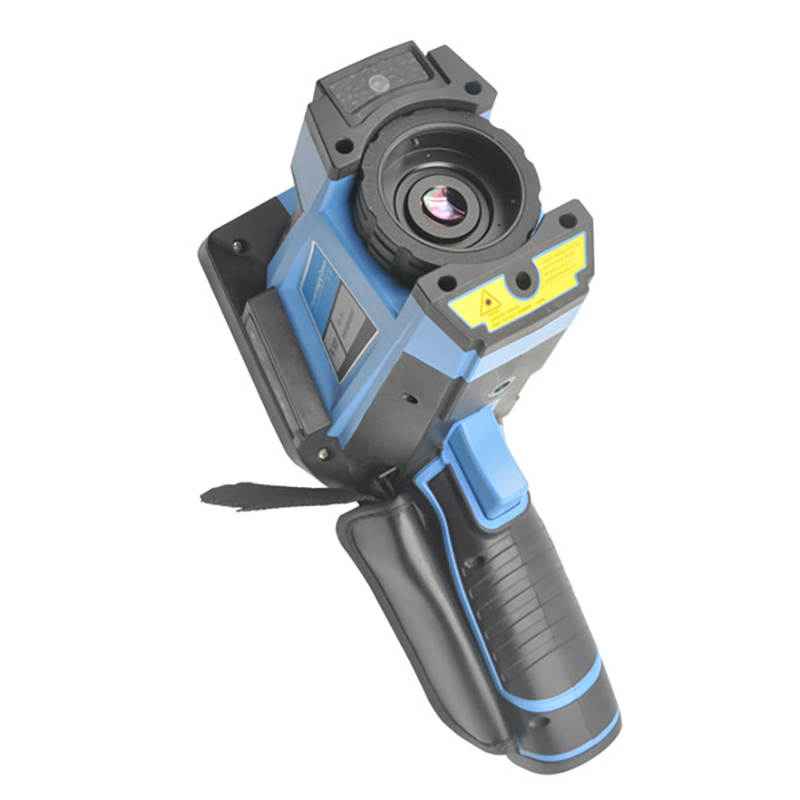

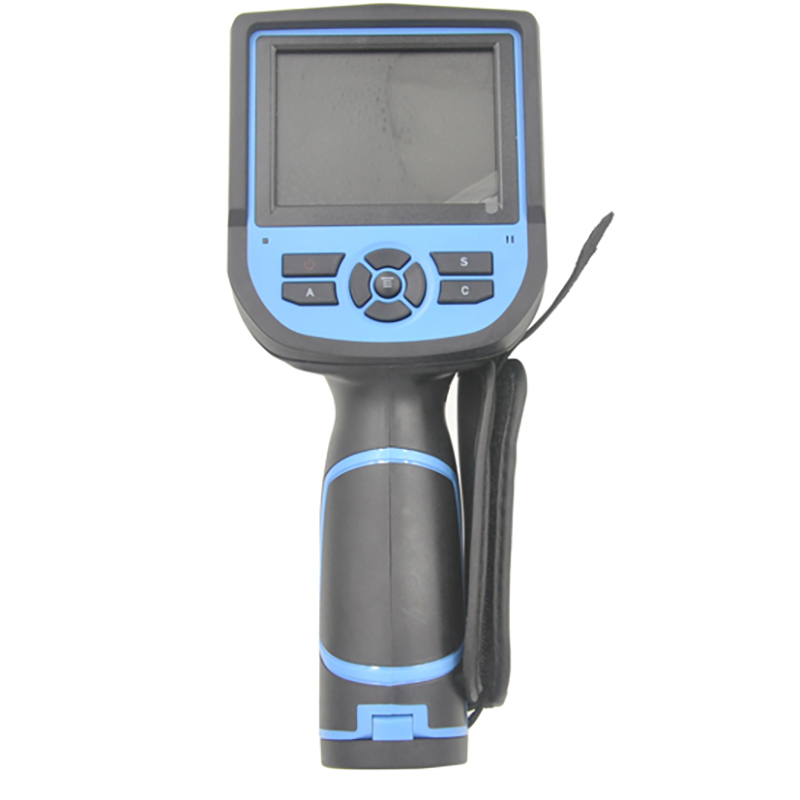

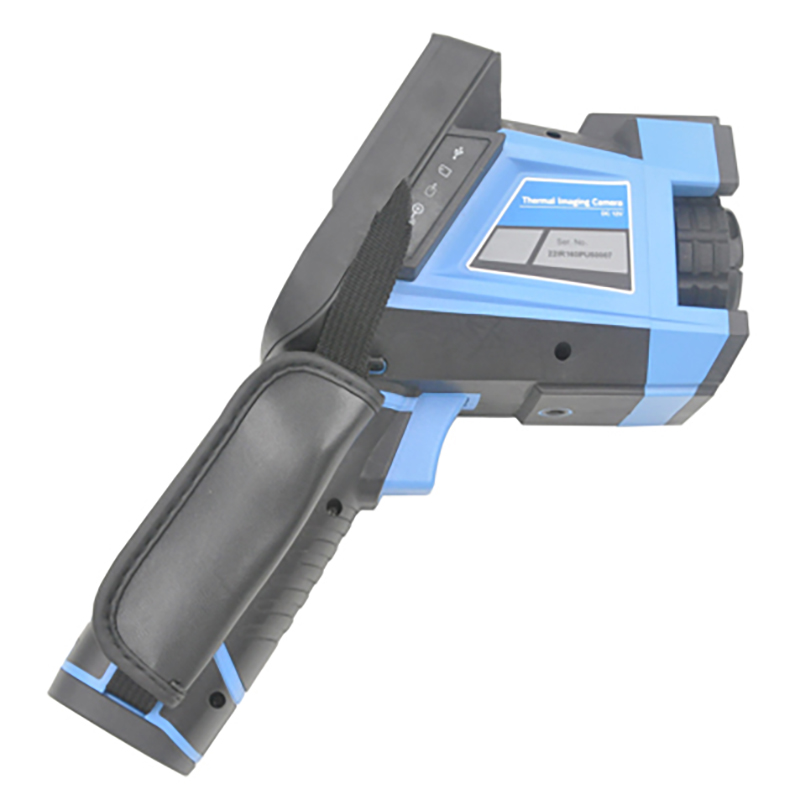

Thermal imaging camera 11 color palettes thermographic camera
Features:
- °C, °F or K measurement scale
- 11 user selectable color palettes
- 11 user selectable languages
- Hot temperature spot measurement
- Cold temperature spot measurement
- 4 removable spot measurements
- High temperature Alarm setting
- T Reflect – Reflected temperature compensation
- 2X digital zoom
- Freeze screen for viewing current image
- Video Output – NTSC or PAL
- 3 Areas measurements
- 2 lines measurements
- Image storage via TF card
- CMOS visible image and storage Audio recording
- Isotherm Alarm
- T Correct – Measurement Offset correction
- Built in Emissivity Table list of common materials
Applications: Preventive maintenance , Construction science
Specification:
Image manage:
- Field of view/min focus distance: 25o×19o /0.1m
- Spatial resolutions(IFOV): 2.72mrad | 1.36mrad
- Thermal sensitivity: ≤0.06℃@30℃ | ≤0.05℃@30℃
- Frame rate: 50/60Hz
- Focus: Manual
- Spectral range: 8~14um
- Built-in visible light: Yes
Image display:
- LCD display:2.7″TFT color LCD,640×480
- Image adjustment: Auto/manual gain and brightness
- Color palette: Color palette 11 palettes changeable
Measurement:
- Temperature ranges: -20℃~+350℃ (can expand to 650℃) | -20℃~+650℃
- Accuracy: ±2℃ or ±2% of reading, whichever is greater
- Measurement correction: Automatic/manual
- Measurement mode: Up to 4 movable spots. Up to 3 movable areas(maximum, minimum and average temperatures).Up to 3 movable lines.Line profile. Isotherms. Temperature difference. Alarm(voice,color)
- Setup functions: Date/time, temperature unit, language
- Emissivity correction: Variable from 0.01 to 1.0
- Backgroud temperature correction: Automatic correction according to user input
- Atmospheric transmission correction:Automatic correction according to user input object distance, humidity and temperature
Image storage:
- Storage Card: 2G SD card, max 16G
- Storage mode: Automatic/manual single file saving, IR and Visual image link saving
- Thermal file format: JPEG with original thermal measurement data
- Visual file format: JPEG
- Voice annotation: A built-in microphone Up to 60 seconds of digital voice clip with each cared thermal imaging
Laser pointer:
- Laser pointer: Class 2,1mw/635nm(red),IEC 60 285
Power supply:
- Battery type: Li-Ion, rechargeable
- Battery operating time: 3 hours continuous operation
- Charging system: Intelligent charger or power supply adaptor 12V (optional) to random charge
- Power saving: Auto dormancy and auto-shut down
Environment:
- Operating temperature: -15 ℃ – +50 ℃
- Storage temperature: -25 ℃ – +60 ℃
- Encapsulation: IP54
- Anti-shock: 25G , IEC 68-2-29
- Vibration resistance: 2G , IEC 68-2-6 grade
- Drop resistance: 2 meters
- Humidity: ≤ 90% non-condensing
Physical characteristics:
- Weight: 0.98kg
- Dimensious: 230mm×105mm×245mm
- Handrail: Can be installed on both sides
- Tripod: 1/4″-20-UNC
Interface:
- Memory card slot: Micro SD(TF)
- External DC input: Yes
- Video output: Yes
- USB: Mini-USB Image,measurement data transfer
