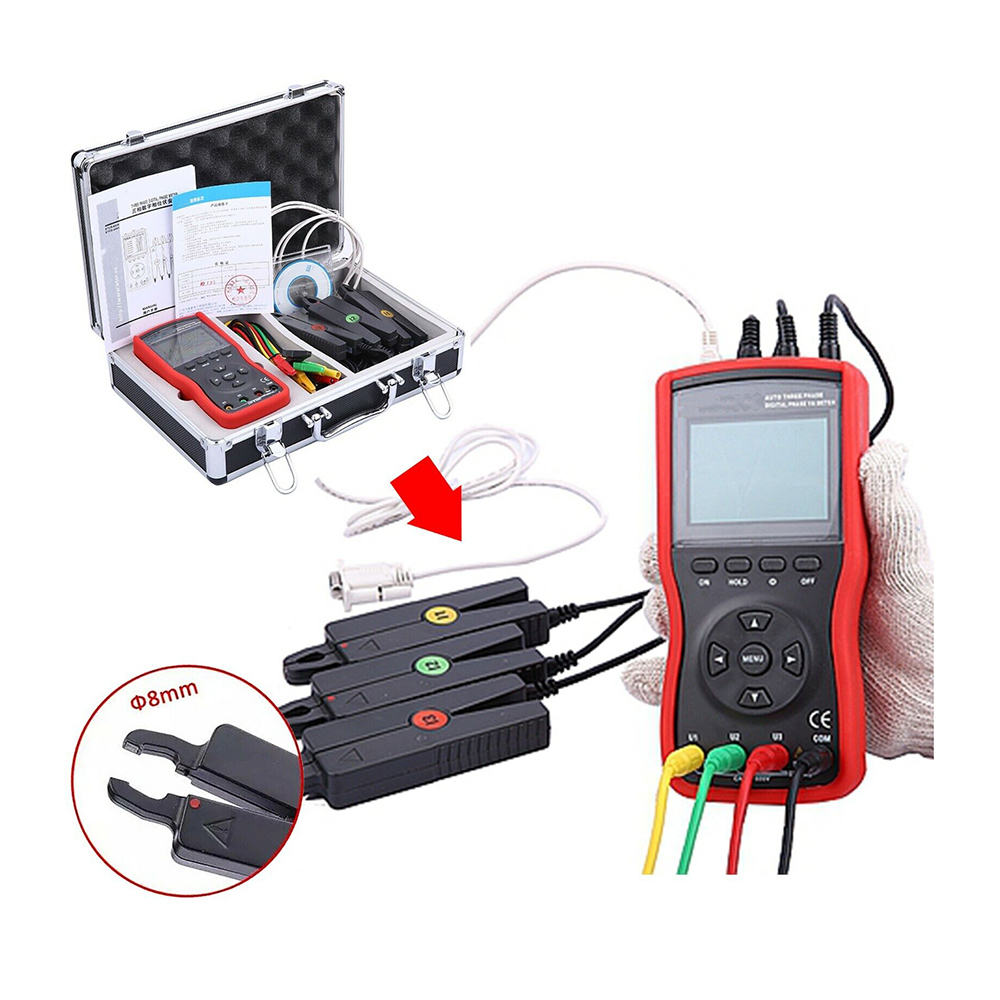

Three phase digital volt and amp meter 600V voltmeter frequency tester
Specification:
Category
|
Measurement Range
|
Resolution
|
Intrinsic Error
|
Voltage
|
AC 0.0V~600V
|
0.01V
|
±(1.5%rdg+3dgt)
|
Current
|
AC 0.0mA~20.0A
|
0.1mA
|
±(1.5%rdg+3dgt)
|
Phase
|
0.0°~360°
|
0.1°
|
±1°
|
Active Power
|
0.0W~12kW
|
0.1W
|
±(3%rdg+3dgt)
|
Reactive Power
|
0.0VAR~12kVAR
|
0.1VAR
|
±(3%rdg+3dgt)
|
Apparent Power
|
0.0VA~12kVA
|
0.1VA
|
±(3%rdg+3dgt)
|
Frequency
|
45HZ~65HZ
|
0.01HZ
|
±(2%rdg+3dgt)
|
Power Factor
|
-1~+1
|
0.001
|
±0.03
|
Power consumption:
The maximum power consumption can be 80mA if the backlight is turned on, and the battery can work continuously for 10 hours The power consumption can be 50mA if the backlight is turned off, and the battery can work continuously for 16 hours
Display modes: LCD display, 240dots×160dots
Dimensions of meter: L×W×: 196mm×92mm×54mm
Dimensions of Clamp: 7.5mm×13mm
Voltage range: AC 0.00V~600V
Current range: AC 0.0mA~20.0A
Phase range: 0.0°~360.0°
Frequency range: 45.00Hz~65.00Hz
Active power range: 0.0W~12kW
Reactive power range:0.0W~12kVAR
Apparent power range: 0.0W~12kVA
Power factor range: -1~+1
Current vector sum: 0mA~60.0A
Resolution:
Voltage: AC 0.01V
Current: AC 0.1mA
Phase: 0.1°
Frequency: 0.01Hz
Active power: 0.1W
Reactive power: 0.1VAR
Apparent power: 0.1VA
Power factor: 0.001
Current vector sum: 1mA
Phase sequence:
Positive phase: U1, U2, U3 or I1, I2, I3 cursor flashes sequentially from left to right
Negative phase: U1, U2, U3 or I1, I2, I3 cursor blinks sequentially from right to left Tested rate:About 2s/time
Data retention: Press HOLD during the test to keep the data, and the symbol “HD” will be displayed.
Data storage: 500 sets
RS232 interface: USB-RS232 interface; all data stored are uploaded to the computer, to provide the convenience for data analysis and management.
Automatic shutdown: The meter automatically shuts down about 15 minutes after start-up, as to reduce the battery consumption.
Backlight function: Available, suitable for use in dark places or at night
Length of test line: 1.5m
Length of current clamp wire: 2m
Working temperature and humidity: -10°C ~ 40°C; below 80%Rh
Storage temperature and humidity: -10°C ~ 60°C; below 70%Rh
