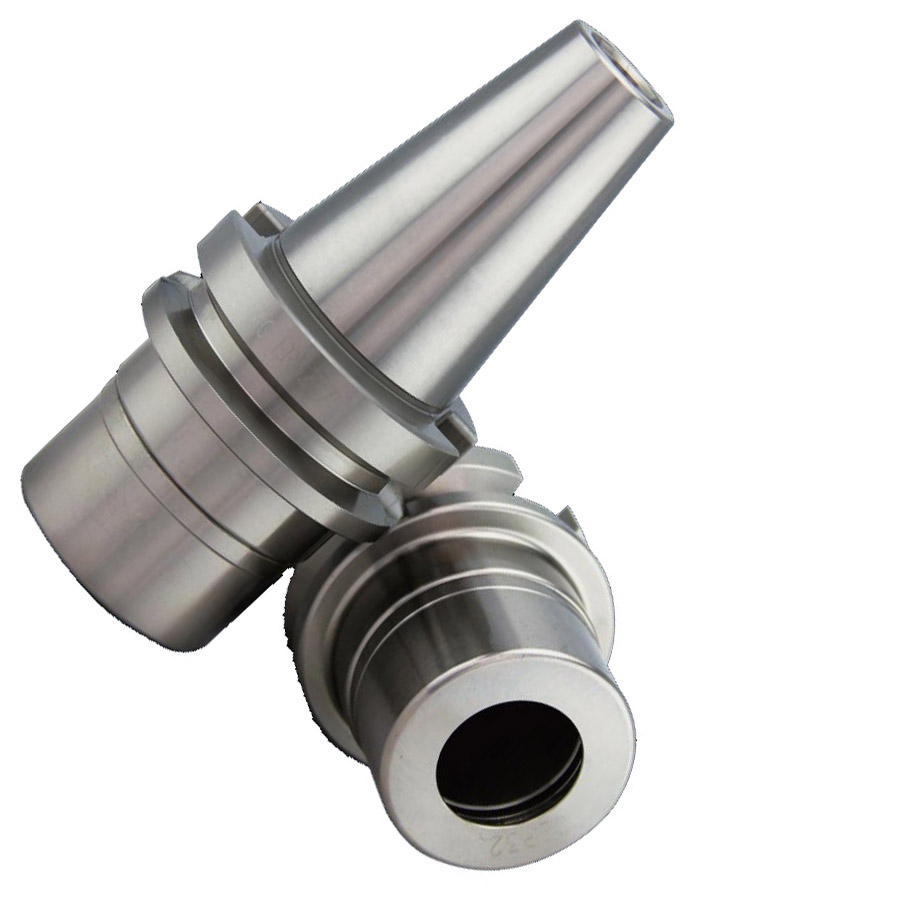

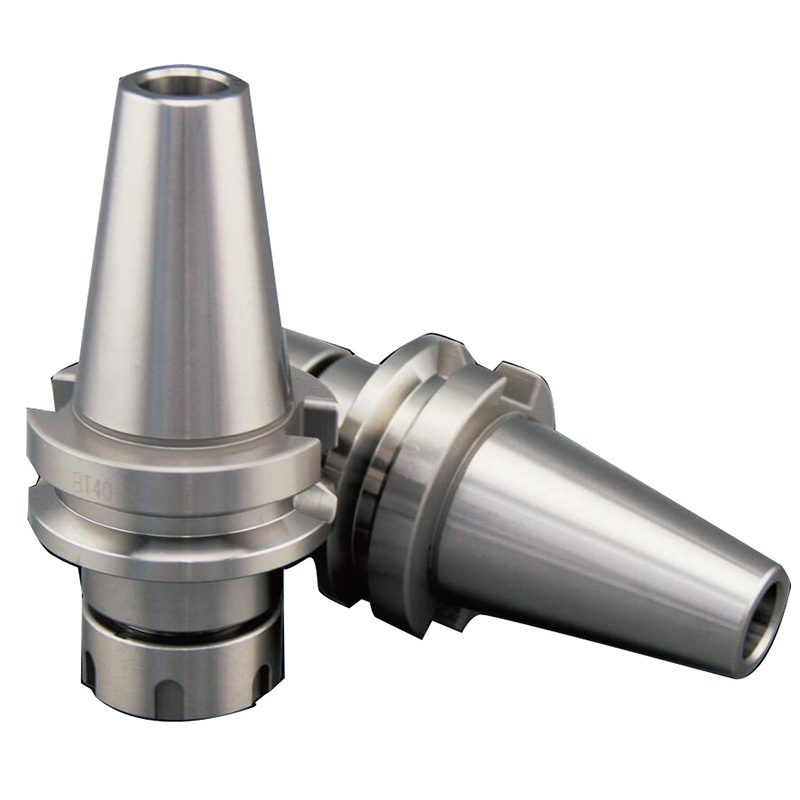

Tool holder ER collet chuck DIN6499 CNC

Description

Tool holder ER collet chuck DIN6499 CNC

Specification:

D25-63

D1: 69.85

Model	D	D1	L1	Clamping Range	Wt (kg)
BT50-ER 16-70	28	69.85	70	0.5-10	3.64
BT50-ER16-100	28	69.85	100	0.5-10	4.30
BT50-ER16-150	28	69.85	150	0.5-10	4.50
BT50-ER20- 70	34	69.85	70	0.5-13	3.67
BT50-ER20-100	34	69.85	100	0.5-13	4.30
BT50-ER20-150	34	69.85	150	0.5-13	4.70
BT50-ER20-200	34	69.85	200	0.5-13	5.40
BT50-ER25- 70	42	69.85	70	0.5-16	3.70
BT50-ER25-100	42	69.85	100	0.5-16	4.54
BT50-ER25-150	42	69.85	150	0.5-16	4.80
BT50-ER25-200	42	69.85	200	0.5-16	5.50
BT50-ER32- 70	50	69.85	70	1-20	3.73
BT50-ER32-100	50	69.85	100	1-20	5.20
BT50-ER32-150	50	69.85	150	1-20	4.97
BT50-ER32-200	50	69.85	200	1-20	5.73
BT50-ER40-80	63	69.85	80	2-26	3.76
BT50-ER40-100	63	69.85	100	2-26	4.44
BT50-ER40-120	63	69.85	120	2-26	5.77
BT50-ER40-150	63	69.85	150	2-26	6.66
