5 IN 1 security camera testers PoE TDR cable test IPC
– 5 inch IPS touch screen, 1920×1080 resolution
– 8MP CVI/ TVI/ AHD camera test
– H.265/H.264, 4K video display via mainstream
– DC12V 3A, 48V PoE power output
– HDMI output 1080P
– Auto HD, auto recognize HD coax camera type and resolution
– RJ45 TDR cable test, cable opens ,shorts ,length test ,max 180M .
– UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
Camera test:
– 5 inch IPS touch screen, 1920*1080 resolution
– H.265 & H .264 IP, 4K video display via mainstream
– Analog camera test, PTZ controller
– 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu
– 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
– 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
– Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu
– Rapid ONVIF, Auto log in and display image, create testing report
– IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate cameras. Jump to ONVIF interface and test tools.
– Camera test, enter ONVIF app, input username and password to test
– IP and analog display image at the same time
– IPC TEST (Non-ONVIF test)
– DC12V/3A power output, camera can be powered from DC 12 Voltage
– Rapid video, just by one key to detect all network cameras and auto display
– Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
Cable test:
– Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
– RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report
– Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time * (Optional function,if you require add it ,please contact us )
Other Functions:
– Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
– Tester Play: Tester, android version mobile phone and PC display at the same time
– Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
– Customers self-update software, you can install apps with android version
– Media player, 4K video files and MKV/MP4 media files play
– Display its genuine resolution of the IP camera images
– Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
– 7.4 V /2600mAh Lithium Ion Battery, after 3-4 hours charging, working time lasts 5 hours (only for 1500 )
Item series
| Features/ Model |

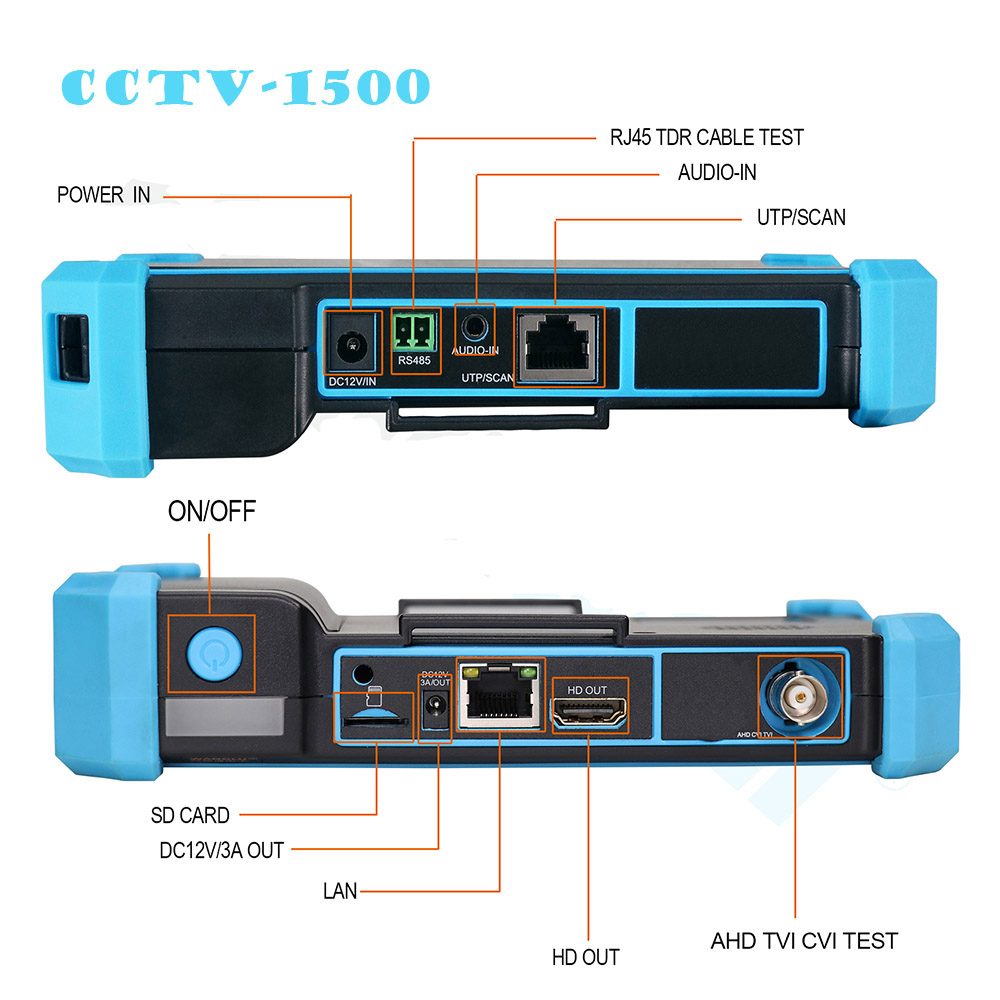

CCTV-1500 |
CCTV-1501 |
CCTV-1502 |
|
8MP AHD/8MPTVI/8MPCVI |
√ |
√ |
√ |
|
4K IP /Analog |
√ |
√ |
√ |
|
DC12V 3A /48V PoE output |
√ |
√ |
√ |
|
HD-SDI/3G-SDI/EX-SDI 2.0* |
X |
X |
√ |
| HDMI output,1080P |
√ |
X |
X |
|
HDMI INPUT 4K 30 FPS* |
X |
√ |
√ |
|
VGA IN* |
X |
√ |
√ |
|
Battery |
2600mAh |
3350mAh |
3350mAh |
| Working hours | 5 hours | 6 hours | 6 hours |
|
Digital Cable tracer* |
Optional |
Optional |
Optional |
|
Advanced UTP cable test, check fault point of the RJ45 cable plug |
√ |
√ |
√ |
