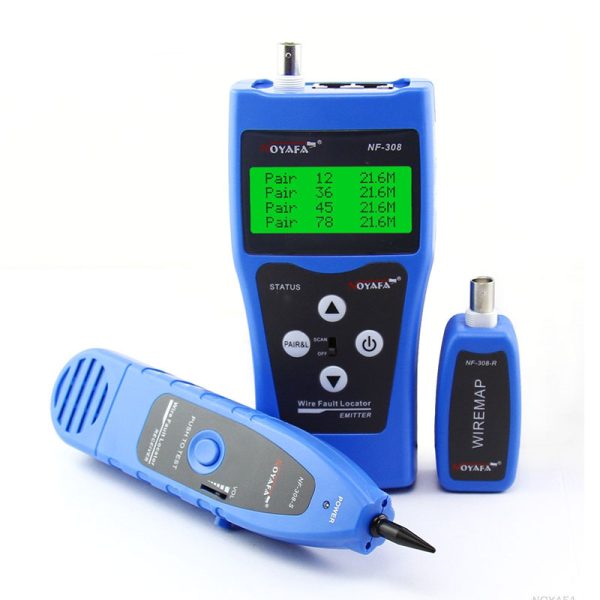

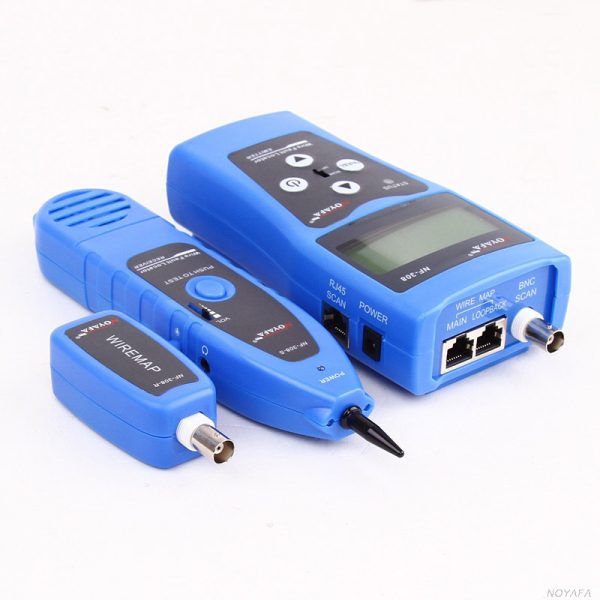

LAN cable length tester cable wire tracker
Features:
1. Directly search 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.
2. Hub blink for locating network port by the flashing port light on Hub / Switch.
3. Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection.
“4. Locate the wiring or connection error.
5. Measure cable length up to 1000m and locate the breakage point.
6. polarity test function measure DC voltage (0.5-60 V)
7. Memory and storage for calibration data.
8. Automatically time-delay shut off and Low battery alarm function.
Specification:
NF-308 Transmitter specifications
Indictor LCD 53×25 mm, with back light
Tone frequency 225 Hz
Max. distance of transmission 2 km
Max. distance of cable map 1 km
Max. working current Less than 70mA
Tone mode 2 Tone adjustable
Compatible connectors RJ11,RJ45,Coacial, USB
Max. signal voltage 15Vp-p
Function selection 3 position buttons & 1 power switch
Function and faults LCD display LCD display ( wiremap, Tone, short, , No adapter, Low battery )
Cable map indication LCD (#1-#8)
Shielded indication LCD ( #9)
Voltage protection AC 60V/DC 42V
Battery Type DC9.0V(NEDA 1604/6F22 DC9V x 1pcs)
Dimension(LxWxD) 185x80x32mm
NF-308 Receiver specifications
Frequency 225kHz
The Max. working current Less than 70mA
Earjack 1
LED illumination 2
Battery Type DC9.0V(NEDA 1604/6F22 DC9V) x1pc
Dimension(LxWxD) 218x46x29 mm
NF-308 Remote unit specifications
Compatible connectors RJ45, BNC
Dimension(LxWxD) 107x30x24mm
