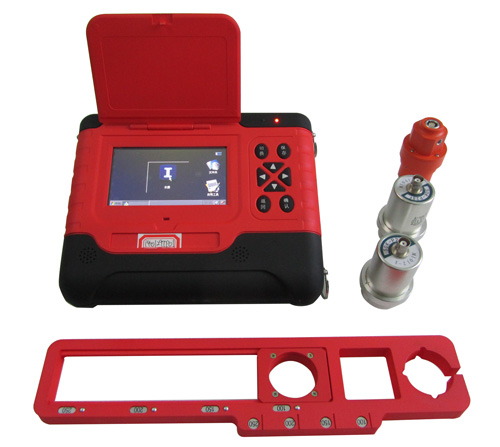

Concrete crack width and depth integrated detector 10mm-500mm
- Standard and senior color microscopic magnification probe are available for selection to meet the different needs of width measurements.
- Two kinds of depth measurement methods: standard and simple depth measurement. The users can make standard depth measurement according to the specified procedures, or use simple method to quickly measure the crack depth by two points across the crack which greatly simplifies the operating process.
- Standard ultrasonic transducer bracket, precise and adjustable; free from scene marking-out, which can greatly improve the detection efficiency. Touch screen makes the operation simple and quick.
- Image automatic recognition and width intelligent computing technology, crack positions needn’t be adjusted, on-site testing becomes more convenient;
- Crack automatic identification and calculation, real-time display, high degree of intelligence.
- Using high-efficiency, energy-saving rechargeable lithium battery.
- Low power consumption
Technical Specifications:
Product name | Concrete Crevice Width/Depth Tester |
Crack Width Test Rang | Standard Probe: 0.01mm~6.5mm |
Crack Width Test Accuracy | Standard Probe:≤±0.02mm;High Grade Probe: ≤±0.01mm |
Crack Depth Test Rang | 10mm~500mm |
Crack Depth Test Accuracy | ≤±5% |
Power Supply | Rechargeable Lithium Battery |
Working Time | ≥28 Hours |
Working Temperature | -10℃~+50℃ |
Working Humidity | ≤90%RH |
Hardware Platform
|
Embedbed ARM9 Hardware Platform ,WinCe5.0 Operating System,True Color TFT Touch Screen |
Weight | 5KG |
Packing Size | 46x35x16cm |
