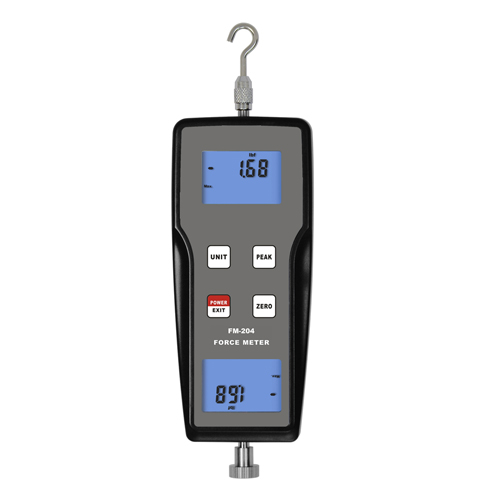

Digital force gauge electornic push and pull gauge
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With data memory function, can memorize 99 groups of data.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 6V DC power.
* Use USB/RS-232 data output to connect with PC.
Specification:
Model |
FM-204-
1K
|
FM-204-
2K
|
FM-204-
5K
|
FM-204-
10K
|
FM-204-
20K
|
FM-204-
50K
|
FM-204-
100K
|
Force Range | ±1kgf | ±2kgf | ±5kgf | ±10kgf | ±20kgf | ±50kgf | ±100kgf |
±1000gf | ±2000gf | ±5000gf | | | | | |
±9.8N | ±19.6N | ±49N | ±98N | ±196N | ±490N | ±980N | |
±2.2Lbf | ±4.4Lbf | ±11Lbf | ±22Lbf | ±44Lbf | ±110Lbf | ±220Lbf | |
Resolution | 0.001kgf | 0.001kgf | 0.001kgf | 0.001kgf | 0.01kgf | 0.01kgf | 0.01kgf |
1gf | 1gf | 1gf | | | | | |
0.001N | 0.01N | 0.01N | 0.01N | 0.1N | 0.1N | 0.1N | |
0.001Lbf | 0.001Lbf | 0.01Lbf | 0.01Lbf | 0.01Lbf | 0.1Lbf | 0.1Lbf |
