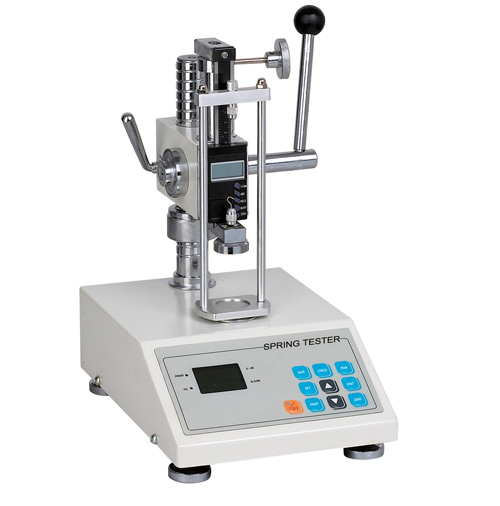

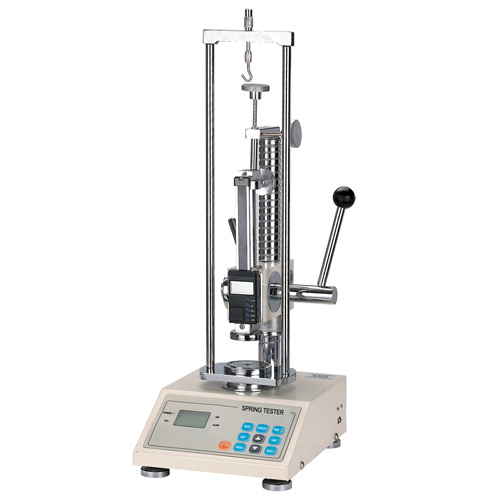

Digital spring tester with stand
2:Max distortion value stroke: 10N~30N is 70mm, 50N~500N is 90mm, 1000N~5000N is 150mm
3:Distortion value resolution eH: 0.01mm
4:Distortion value display interface: Five figures and “-” position liquid crystal display;
5:Max working load: According to measuring range;
6:Load resolution eP: 0.02N
7:Platen diameter: 49mm
8:Shows value error: ±1%
9:Power source: Exchanges 220V-50Hz
10:Power: 13W
11:Operating temperature: 20±10℃
12:Storage and transport temperature: -27℃~+70℃
13:Relative humidity: 15%~80%RH.
Part Number |
SSTS-80010 |
SSTS-80020 |
SSTS-80030 |
SSTS-80050 |
SSTS-80100 |
SSTS-80150 |
SSTS-80200 |
SSTS-80300 |
SSTS-80500 |
SSTS-81000 |
SSTS-82000 |
SSTS-83000 |
SSTS-85000 |
Maximum testing load |
10N |
20N |
30N |
50N |
100N |
150N |
200N |
300N |
500N |
1000N |
2000N |
3000N |
5000N |
Minimum resolution |
0.001N |
0.01N |
0.1N |
||||||||||
Diameter of the platen |
34mm |
48mm |
108mm |
||||||||||
Maximum free length of measurable spring |
80mm |
150mm |
200mm |
||||||||||
Length of travel of the displacement scale |
60mm |
90mm |
150mm |
||||||||||
Division value of the displacement scale |
0.01mm |
||||||||||||
Indication error |
±1% |
||||||||||||
Power Supply |
AC 110-220V, 50HZ-60HZ |
||||||||||||
Power capability (without printer) |
13W |
||||||||||||
Power capability (with printer) |
20W |
||||||||||||
Working temperature |
20±10℃ |
||||||||||||
Temperature of storage and transportation |
-27℃~+70℃ |
||||||||||||
Relative temperature |
15%~80%RH |
