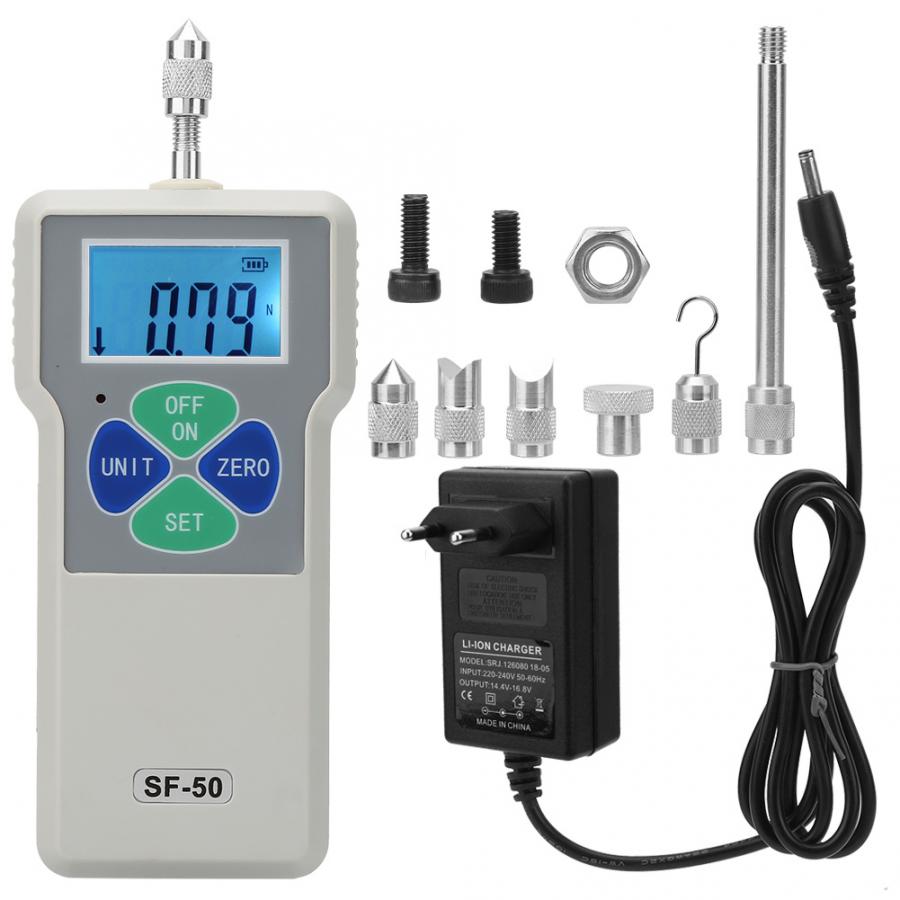

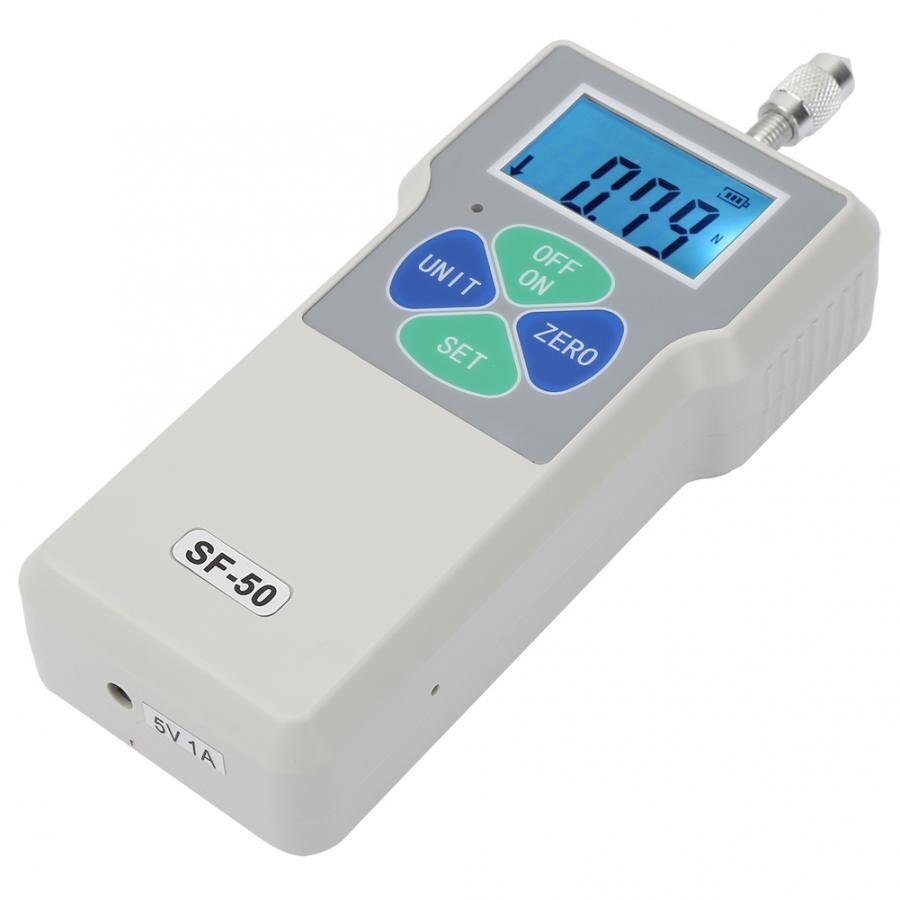

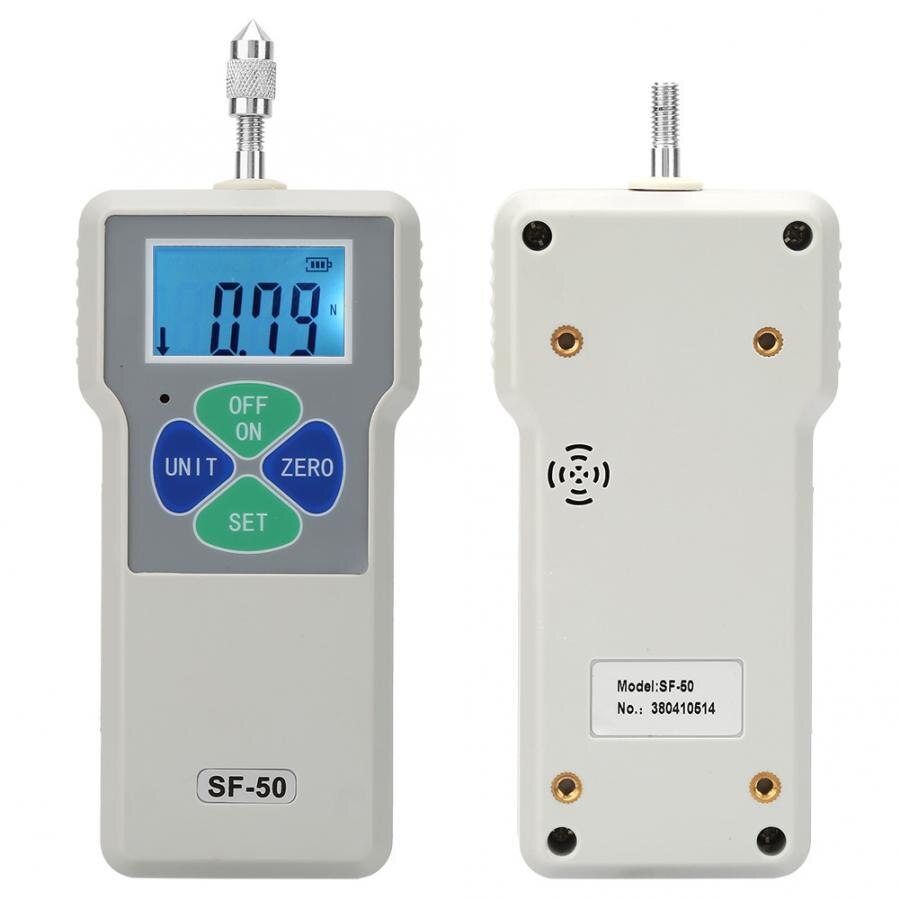

Compact force gauge LCD push and pull gauge 2-500N Dynamometer
Features:
1.Digital display,easy reading;
2.In light weight,small size,easy to carry;
3.Unit display:Lb,Kg,N
4.The battery has overload protection in case of short circuit and leakage of electricity .It also can tell you when the battery is running low.It adopt the 3.7V lithium battery and auto shut off with no operation in 10 minutes at the same time.
Model |
FOGA-6002 |
FOGA-6003 |
FOGA-6005 |
FOGA-6010 |
FOGA-6020 |
FOGA-6030 |
FOGA-6050 |
FOGA-6100 |
FOGA-6200 |
FOGA-6300 |
FOGA-6500 |
The maxload value |
2N |
3N |
5N |
10N |
20N |
30N |
50N |
100N |
200N |
300N |
500N |
0.2kg |
0.3kg |
0.5kg |
1kg |
2kg |
3kg |
5kg |
10kg |
20kg |
30kg |
50kg |
|
0.45Lb |
0.65Lb |
1.1Lb |
2.2Lb |
4.5Lb |
6.5Lb |
11Lb |
22Lb |
45Lb |
65Lb |
110Lb |
|
Load ValueResolution |
0.001N |
0.01N |
0.1N |
||||||||
0.001KG |
0.001KG |
0.01KG |
|||||||||
0.001Lb |
0.001Lb |
0.01Lb |
|||||||||
The sensor |
sensor inside |
||||||||||
Precision |
±0.5% |
||||||||||
Power |
3.7V lithium battery |
||||||||||
Charging time |
4~6 hours |
||||||||||
Continuoususage time |
About 15 hours |
||||||||||
Battery life |
≥ 300 times |
||||||||||
Charger |
Input:AC100- 240V 50-60Hz Output: DC 5V 1000mA |
||||||||||
Working temp. |
5 ℃ ~35 ℃ |
||||||||||
Transportation temperature |
-10 ℃~60℃ |
||||||||||
Relative humidity |
15%~80%RH |
||||||||||
Work environment |
No focus ,Non-corrosive in surroundings |
