Digital three point internal micrometer set electronic bore micrometer
ROK International Industry supplies full range solution for hole measurement. With package sets, Inspector can measure different size of hole without littering. The micrometer sets reduces the cost of production and package. It is cheaper than buying one by one. 50-100mm is the best selling in our companies
Features:
-Strong box to hold the micrometer
-Fast delivery
Metric
Order No | Range | Ring | Anvil | Rod |
IM-321401 | 2-2.5mm, 2.5-3mm | Φ2.5 | / | / |
IM-321402 | 3-4mm,4-5mm,5-6mm | Φ4,Φ5,Φ6 | / | / |

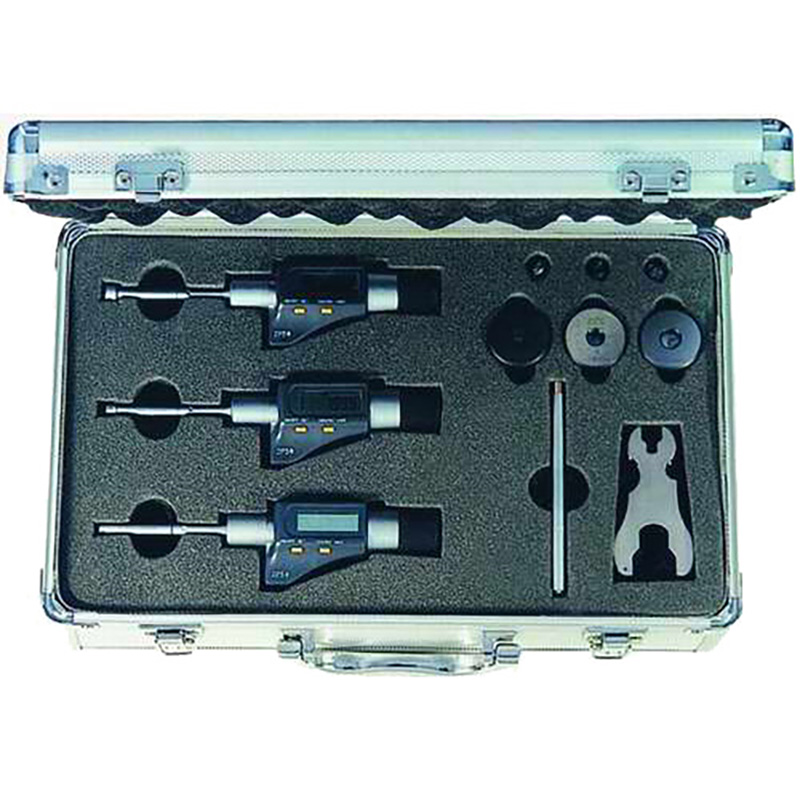

IM-321403 | 6-8mm, 8-10mm,10-12mm | Φ6, Φ8, Φ10 | 0.5mm | 100mm |
IM-321404 | 6-8mm, 8-10mm,10-12mm | Φ6, Φ8, Φ10 | 1.5mm | 100mm |
IM-321405 | 12-16mm, 16-20mm | Φ16 | 0.5mm | 150mm |
IM-321406 | 20-25mm, 25-30mm, 30-40mm | Φ25, Φ40 | 0.5mm | 150mm |
IM-321407 | 20-25mm, 25-30mm, 30-40mm, 40-50mm | Φ25, Φ40 | 0.5mm | 150mm |
IM-321408 | 40-50mm, 50-63mm,62-75mm, 75-88mm,87-100mm | Φ40, Φ62,Φ87 | 0.5mm | 150mm |

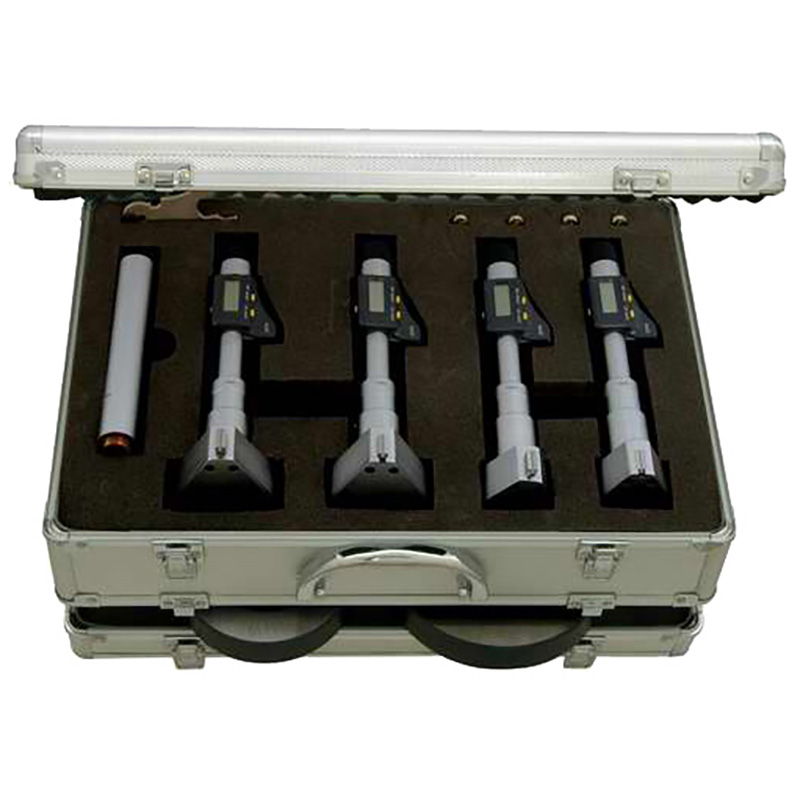

IM-321409 | 50-63mm, 62-75mm,75-88mm,87-100mm | Φ62,Φ87 | 0.5mm | 150mm |
