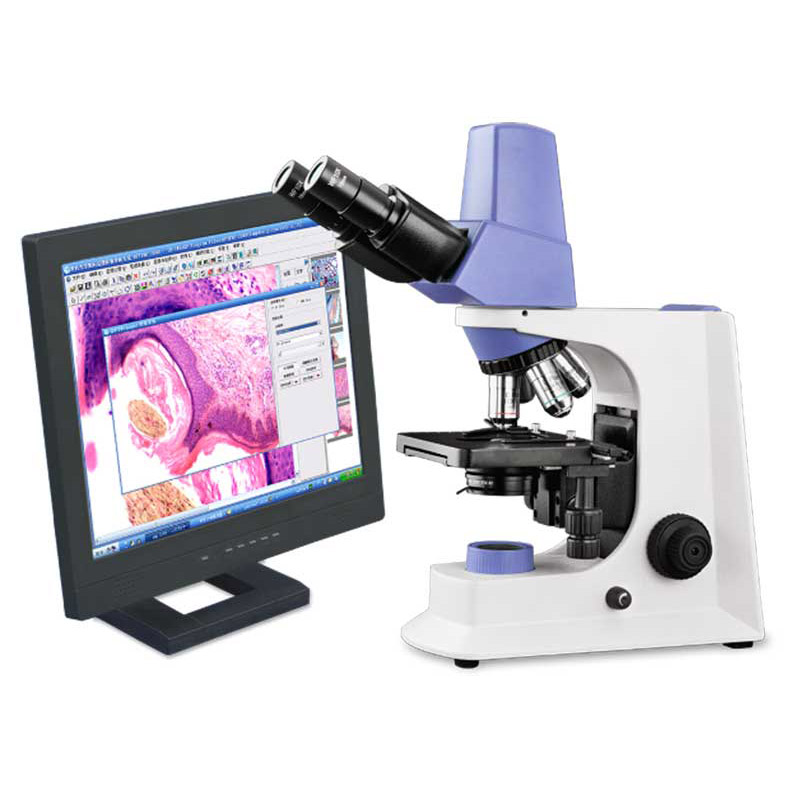

Dustproof biological microscope Rotatable 360 degree
Features:
-Dustproof, moisture-proof, built-in chip.
– Light distribution 20:80, eyepiece observation synchronized with digital imaging without switching.
– Built-in 3MP/5MP digital camera system,1/2’’CMOS color sequential scanning.
– USB2.0 connection without external power supply.
– Available for WINDOWS system.
Specification:
Items | Specification | BIMI-21553 | BIMI-21555 |
Eyepiece | WF 10X-20mm | ●● | ●● |
Infinity EPlan Objective | 4X | ● | ● |
10X | ● | ● | |
40X/0.65 (S) | ● | ● | |
100X/1.25 (Oil) (S) | ● | ● | |
Seidentopf Binocular Head | Inclined 30°,Rotatable 360°,Interpupilary Distance: 50-75mm | ● | ● |
Nosepiece | Quadplex | ● | ● |
Mechanical Stage | Stage Size: 145mm×140mm Travel: 76mm×52mm, Scale: 0.1mm,Two Slide Holder |
● | ● |
Condenser | Abbe N.A. 1.25(Iris Diaphragm) | ● | ● |
Illumination | LED Illumination Systems | ● | ● |
6V/20W Halogen Lamp | ○ | ○ | |
6V/30W Halogen Lamp | ○ | ○ | |
Image Systems | 3.2MP Pixel | 5 MP Pixel |
