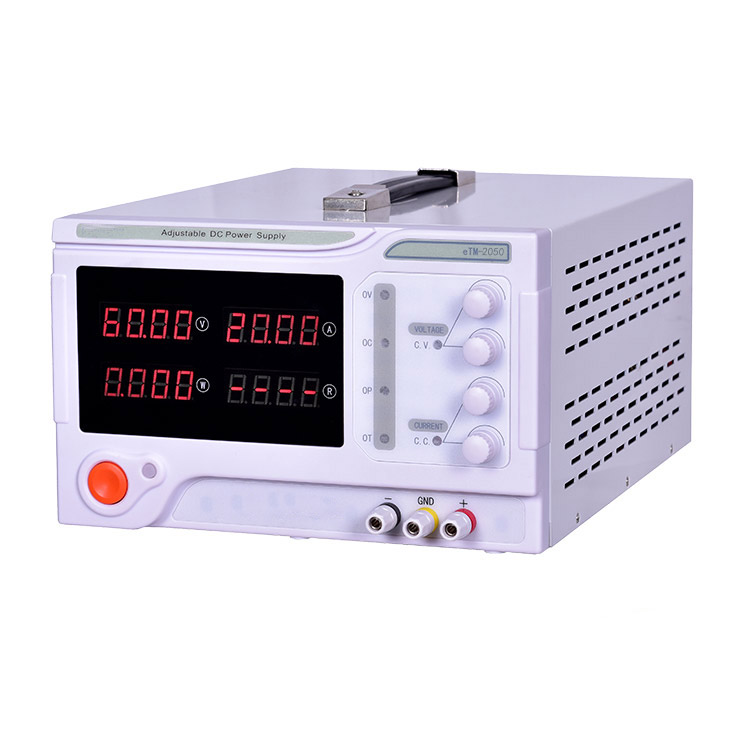

Encoder Four Digit Adjustable DC Power Supply
Part NO: POSU-tem-1560c
Features:
Voltage and current can be settable
Voltage, current, power,Equivalent resistance Simultaneously display
Over voltage, over current, over Power, over temperature , Short circuit protection.
Dural frequency
With fine and wide adjustment
Specification:
Part NO | eTM-1560c | eTM-2050c | eTM-3020c | eTM-3030c | eTM-6010c | eTM-6015c | eTM-6020c | eTM-5020c | eTM-10010c |
Voltage | 0-15V | 0-20V | 0-30V | 0-30V | 0-60V | 0-60A | 0-60A | 0-50V | 100V |
Curent | 0-60A | 0-50A | 0-20A | 0-30A | 0-10A | 0-10A | 0-20A | 0-20A | 10A |
Voltage stability:Less than 2%Current stability: Less than 0.5%
Load stability: Less than 0.5%
Ripple and db: Less than 1%
Display resolution:
Voltage: < 100V 10mV
Current: More than 100V, 0.1V
Power:<10W: 2mW
≥10W:10mW
≥100W: 0.1W
≥1000W: 1W
Load: <10R: 1mR
≥10R: 10mR
≥100R: 0.1R
≥1000R: 1R
Output Voltage preset Accuracy: 0.1V
OUtput Current preset accuracy: 0.1A
