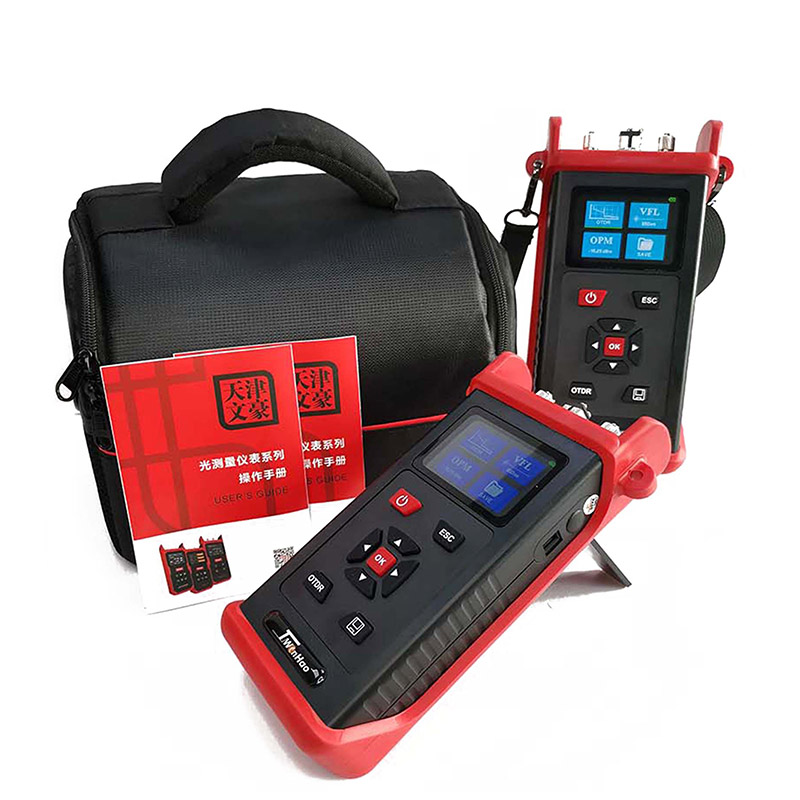

3 In 1 PON OTDR tester FTTH optical fiber network OPM VFL
Features:
Independent 1625nm Wavelength Design
Adopts single-wavelength 1625nm.
Tested with 1:64 splitter
Real-time online testing
Pon OTDR OPM VFL 3 in 1
One Key mode operation
Swift and convenient data save and printing
Ultra high cost efficiency ratio.
Built-in optical isolator
Only applicable to the network of PC or UPC connector
Small in Size, Light in Weight
OPM Function:
Optical Power measurement range: -70~+6dBm or -50~+26dBm.
The two measurement ranges have been determined before delivery, it’s unchangable
Multi-wavelength measurement: 850nm、1300nm、1310nm、1490nm、1550nm、1625nm。 Other measurement wavelengths can be customized according to customer’s require.
VFL Function:
1. Power of VFL is optional :1mW/10mW/20mW, standard 10mW.
2. Universal fiber optics connector, suitable for FC / ST / SC fiber optics connector type.
3. Constant light or flashing mode can be selected.
Model | |
Test Dead Zone | ≤3m |
Dead Zone of Reflective Event | ≤10m |
Dead Zone of Attenuation Event | ≤30m |
Distance Resolution | 1m |
Pulse Width | 10ns-10us |
Distance Uncertainty | ±(0.8m ± 0.01% * Test distance ±Resolution) |
Threshold of Loss | >0.8dB |
Resolution of Loss | 0.1dB |

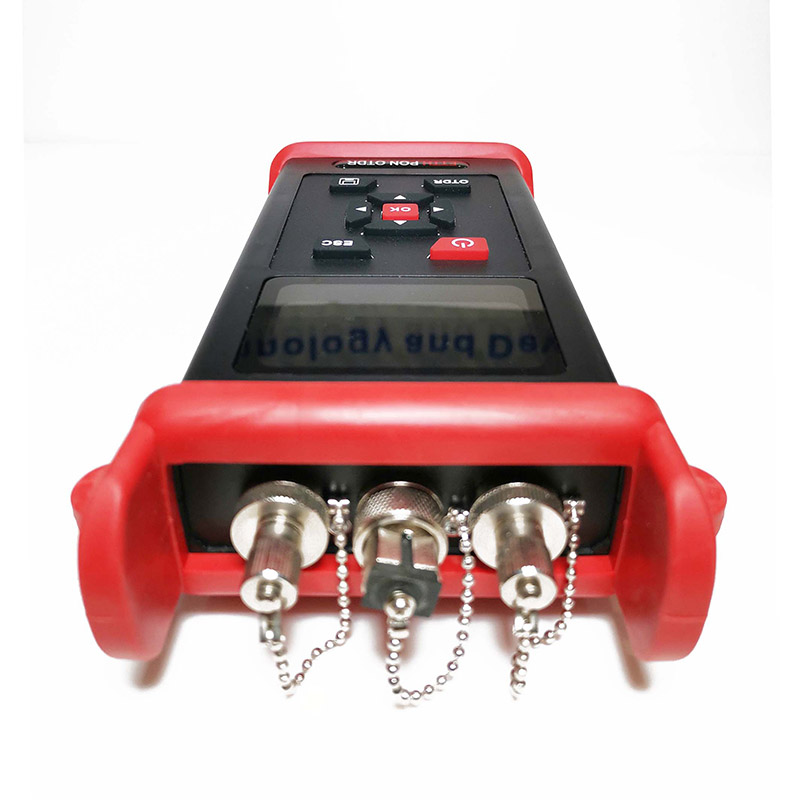

Connector | FC /PC |
OPM Supported Wavelength | (850,1300,1310,1490,1550,1625)nm |
VFL | 10mw (standard)
1mw, 5mw, 20mw (customized item) |
Storage Ability | 100 items |
Display | 2.4” TFT color screen |
Portal | Mini USB |
Power Supply | 5# AA battery, Rechargeable battery,
offer power supply with USB line |
Working Time | Standby>15 Hours ,Test>8 Hours |
Dimension(LxWxH) | 210x 120x 55 mm (including protective case) |
Weight | About 450g |
Storage Temperature | -20~ +60 ℃, < 90% RH |
Working Temperature | -10 ~ +50 ℃, < 90% RH |
