Mini PRO OTDR optical time domain reflectometer
Features:
Short event blind area less than 0.8m, testing optical fiber jumper is easy.
Integrated color TFT LCD display
Dynamic range: 22/20dB
Built-in stable light source function 1310/1550nm dual wavelength
Built-in optical power meter test function
Built-in visual red light fault location (VFL)
Built in optical fiber connector end face check; support USB probe (matching)
Network line test
Dual-wavelength OTDR
1LOM-Event Map

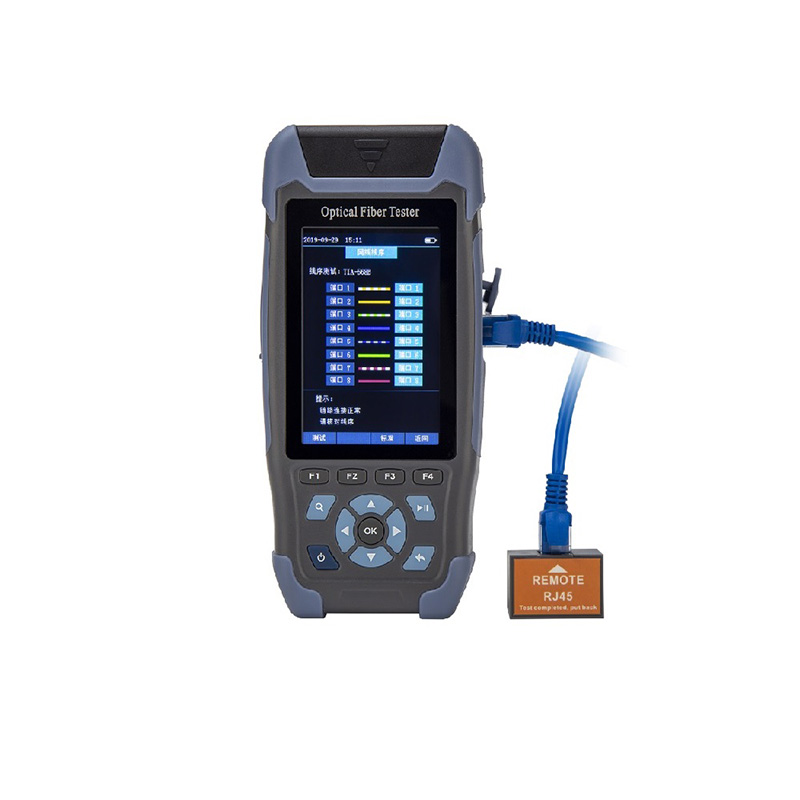

RJ45 Cable Length Measurement RJ45 Line-Tracker Function
Specification:
Part No: OTDR-2123 OTDR-2125
OTDR
Wavelength OTDR-2123 1550run士20run OTDR-2125 1310nm/1550nm士20nm
Fiber Type G.652
Dynamic Range OTDR-2123 22dB 24dB/22dB
Event Blind Zone 3m
TT Blind Zone 8M
Test Range 500m-60km
Pulse Width 3ns-10us
Ranging accuracy 土 (lm+ Sampling interval +0.005 %xTest distance)
Loss accuracy 土0.2dB/dB
Sampling Points 16k-128k
Sampling resolution 0.05m-8m
Reflection accuracy 士3dB
Data Storage Internal: 乏600; External: TF Card
Laser Safety Level Class II
File format SOR Standard file format

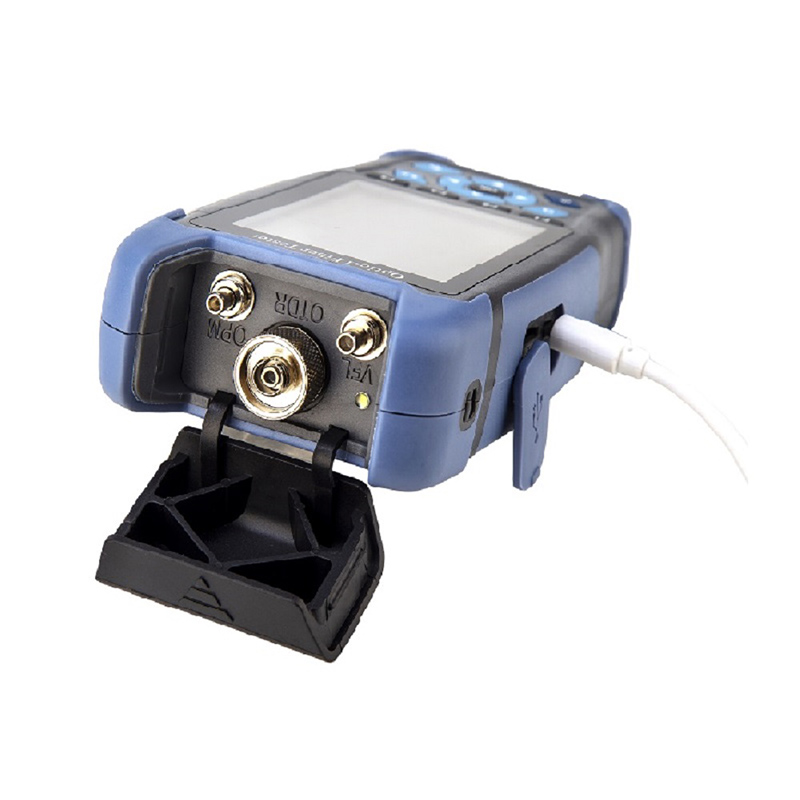

Connector FC/UPC (Interchangeable SC, ST
OPM
Wave Range 800nm
