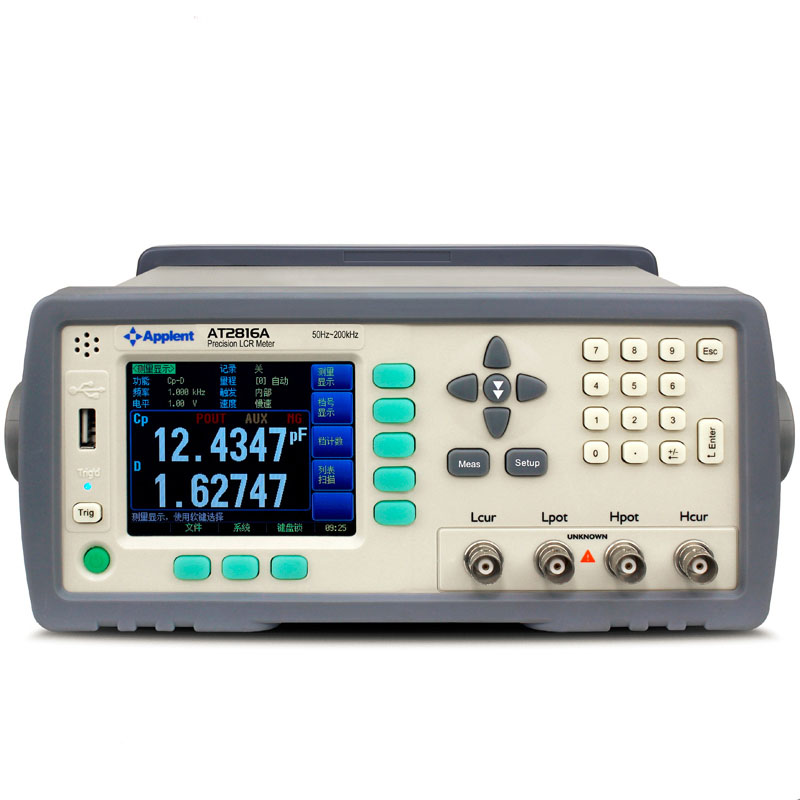

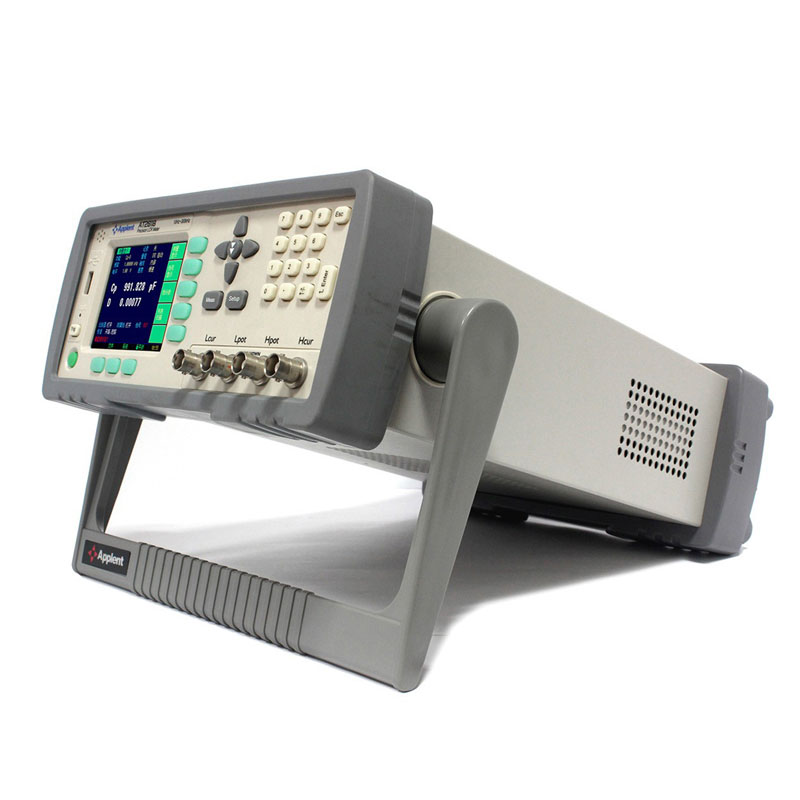

Multi-level Multi-frequency Test Digital LCR Meter 50Hz-200kHz
Part No.:LCRM-2816A
Features:
True color TFT-LCD display
-Calibration : full range open circuit and short circuit sweep frequency clear, three groups of user point frequency calibration.
-Multi-frequency test: support 10 frequency sweep tests
-Multi-level test: support 10 level sweep test
-File management: 10 sets of internal storage and 10 sets of USB disk storage.
-Enhanced comparator (sorting) function: programmable P1~P9 nine-level sorting, main parameters HI, IN, LO display and output, NG, AUX, SREJ, IDX, EOM, etc. display and output.
-Absolute deviation (ABS) comparison method, relative deviation (PER) and sequence (SEQ) comparison methods.
-Switchable secondary parameters (AUX) sorting.
-Customize the sorting result buzzer.
-Built-in RS232C interface and Handler interface.
-Built-in RS485/USB interface. (Rev.E version applies)
-Optional GPIB interface. (Rev.E version applies)
-1000V super impact protection
