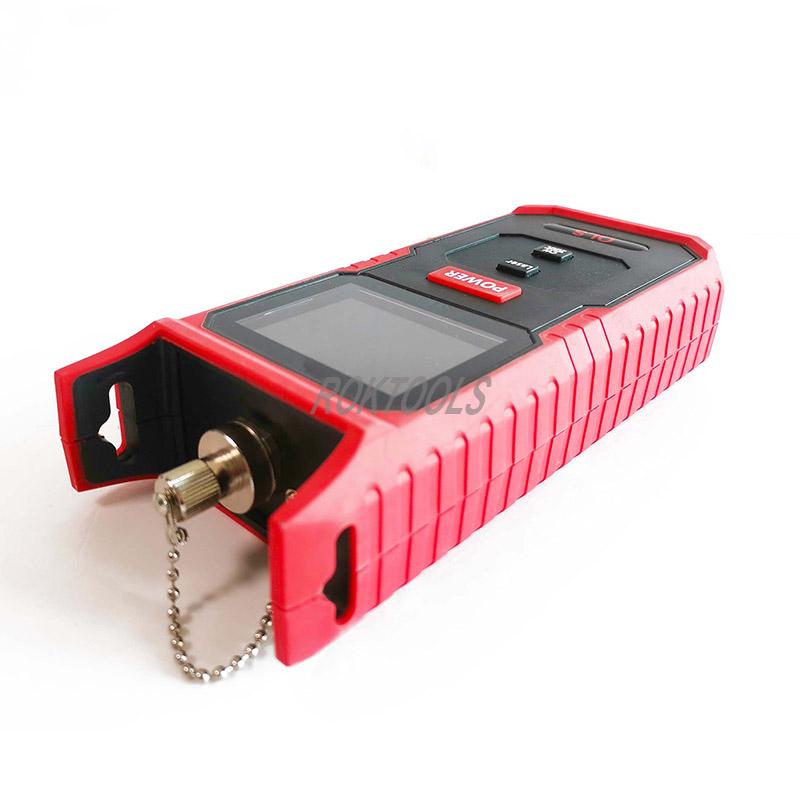

Optical light source FP-LD
OPIN-32001 Optical Light Source Series adopts high-quality lasers with stable output, high sensitivity, multi-wavelength (applicable to single-mode or multi-mode wavelengths), and large dynamic range. Quick response after start-up, no need to warm up, stable output instantly. Color screen design, high definition, suitable for working in dark area or bright environment. Hand-held design, light weight, small size, long standby time, simple operation.
Main features:
Universal optical connector, support FC/SC/ST fiber connector;
Multiple output wavelength selection: 850nm & 1300nm; 1310nm & 1550nm; 850nm, 1300nm, 1310nm, 1550nm four wavelength output.
Color LCD screen. Can be read in dim or bright area.
Quick response after start-up, no need to warm up, stable output instantly;
Classic soft rubberized integrated shell, more shockproof.
Technical parameter:
Model | OPIN-32001 | OPIN-32002 | OPIN-32003 |
Operating wavelength (nm) | 850/1300 | 1310/1550 | 850/1300/1310/1550 |
Laser type | FP-LD | ||
Output power (dBm) | -6~-7 | ||
Modulation | 270Hz,1KHz,2KHz | ||
Fiber category | SM , MM | ||
Optical port | 2.5mm universal connector + FC or SC | ||
Working temperature(℃) | -10~+60 | ||
Storage temperature(℃) | -25~+70 | ||
Automatic shutdown time(min) | 10 | ||
Power supply | 3 AA batteries (optional rechargeable battery) | ||
Battery continuous working time(h) | 18.5 (3x1500mAh) | ||
Dimensions(mm) | 76 * 177.5*40 | ||
Power supply | 5V2A (1) | ||
Weight (KG) | 0.275(2) |
Note: (1)When rechargeable battery is selected, the accessory contains a 5V2A power adapter.
(2)Weight without battery.
