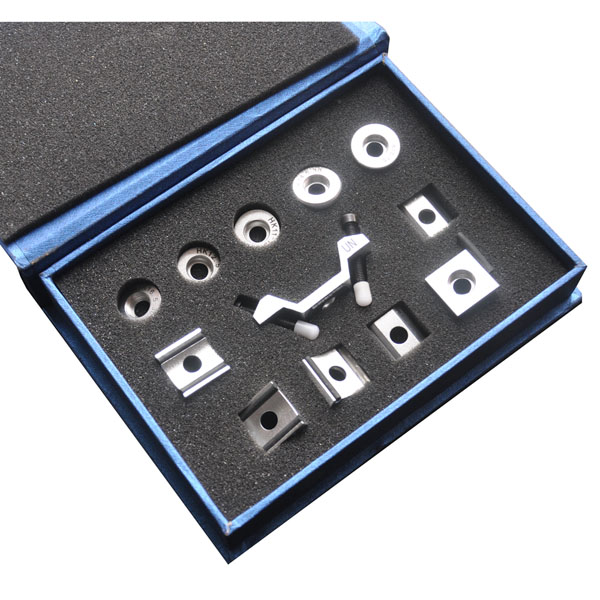

Portable hardness tester accessories support ring
Package Includes:
For hardness testing of cylindrical outside diameter surfaces such as pipe, this set includes:
Z 10-15 (for testing cylindrical OD with a 10 to 15 mm radius)
Z 14.5-30 (for testing cylindrical OD with a 14.5 to 30 mm radius)
Z 25-50 (for testing cylindrical OD with a 25 to 50 mm radius)
For hardness testing cylindrical inside diameter surfaces, this set includes:
HZ 11-13 (for testing cylindrical ID with an 11-13 mm radius)
HZ 12.5-17 (for testing cylindrical ID with a 12.5 to – 17 mm radius)
HZ 16.5-30 (for testing cylindrical ID with a 16.5 to – 30 mm radius)
For hardness testing spherical outside diameter surfaces, this set includes:
K 10-15 (for testing spherical OD with a 10 to 15 mm radius)
K 14.5-30 (for testing spherical OD with a 14.5 mm to 30 mm radius)
For hardness testing spherical inside diameter surfaces, this set includes:
HK 11-13 (for testing spherical ID with a 11 to 13 mm radius)
HK 12.5-17 (for testing spherical ID with a 12.5 to 17 mm radius)
HK 16.5-30 (for testing spherical ID with a 16.5 to 30 mm radius)
Includes: 1pc Universal Stand
Includes: Concave Support Rings,11-13mm round, 12.5-17mm round, 16.5-30mm round,11-13mm square, 12.5-17mm square, 16.5-30 square
Includes: Convex Support Rings, 10-15mm round, 14.5 – 30mm round, 10-15mm square, 14.5 – 30mm square, 25-50mm square
