1000A AC DC Digital Clamp Meter Voltage Current AMP Meter
Features:
-High Accuracy
-AC DC Measurement
-Measure Voltage, Current, Resistance, Capacitance(UT208A)
-Frequency Measurement
Specification:

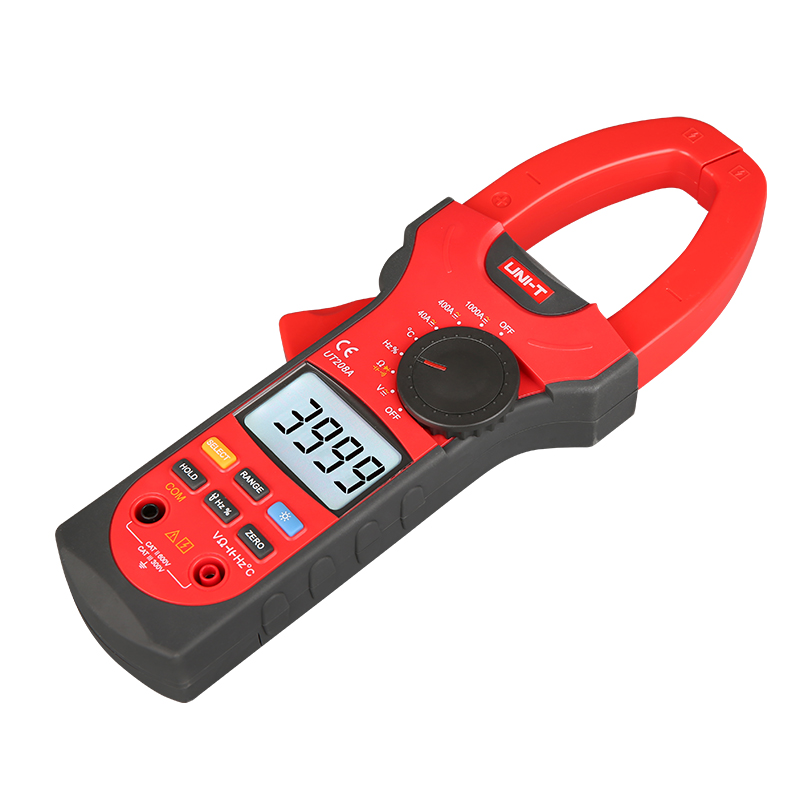

UT208A With temerature measurement, Capacitance

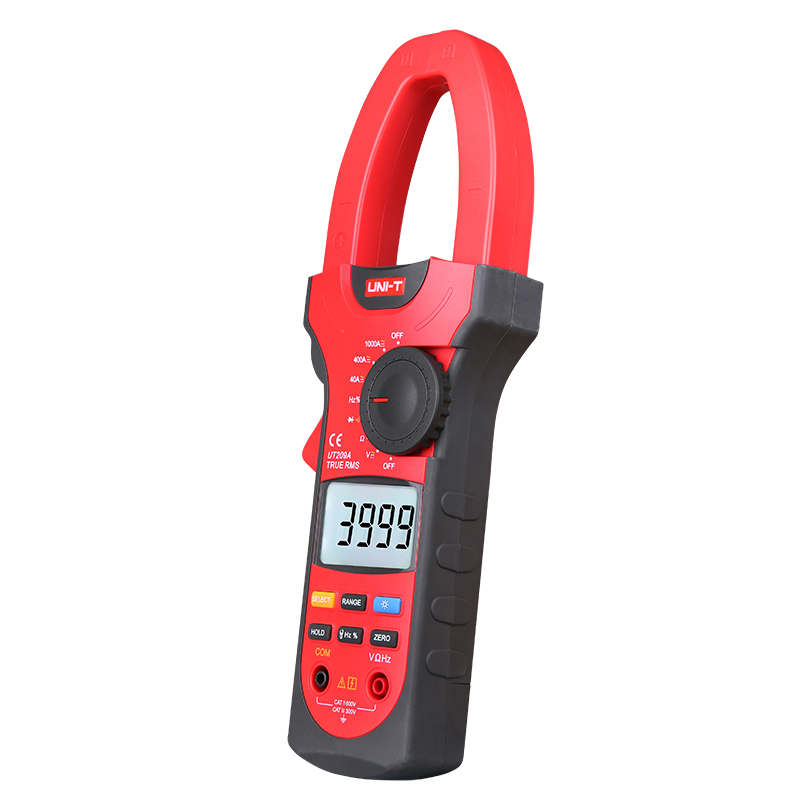

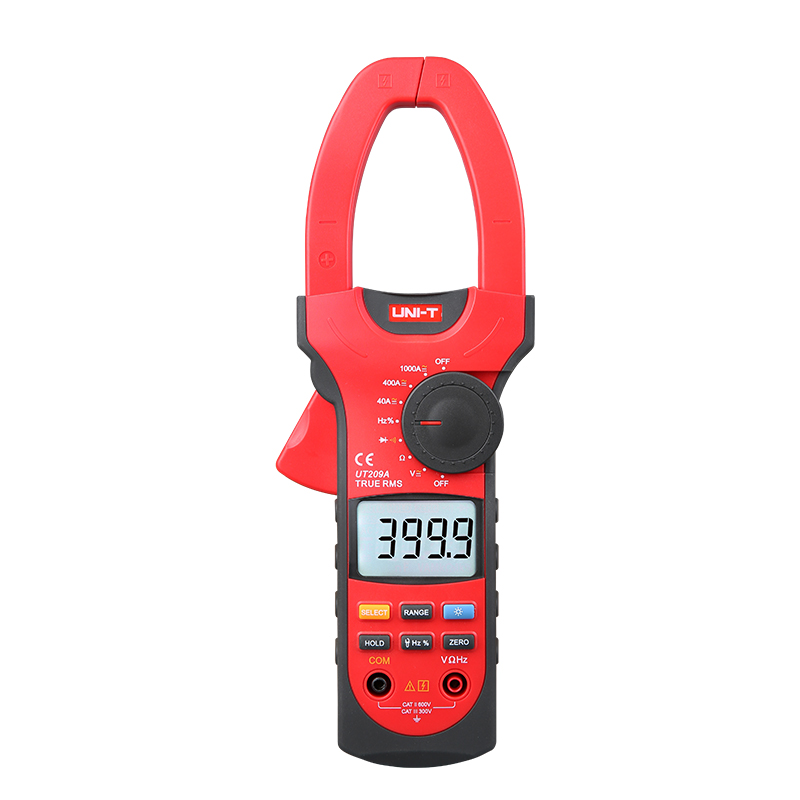

UT209A With True RMS
| Specifications | ||||
| Model | UT207A | UT208A | UT209A | |
| AC Current (A) | 40A/400A/1000A | ±(2%+2) | ±(2%+2) | ±(2%+8) |
| DC Current (A) | 40A/400A/1000A | ±(1.5%+5) | ±(1.5%+5) | ±(1.5%+8) |
| AC Voltage (V) | 400mV/4V/40V/400V/750V | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+5) |
| DC Voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 4nF/40nF/400nF/4μF/40μF/100μF | ±(4%+3) | ||
| Frequency (Hz) | 10Hz/100Hz/1kHz/10kHz/1MHz/10MHz | ±(0.1%+3) | ±(0.1%+3) | ±(0.1%+3) |
| Temperature (°C) | -40 °C ～ 1000°C | ±(2.5%+3) | ||
| Features | ||||
| Display Count | 4000 | 4000 | 4000 | |
| Auto Range | √ | √ | √ | |
| Jaw Capacity | 55mm | 55mm | 55mm | |
| True RMS | AC Voltage/AC Current | √ | ||
| Duty Cycle | 0.1%~99.9% | √ | √ | √ |
| Diode | √ | √ | √ | |
| Auto Power Off | √ | √ | √ | |
| Continuity Buzzer | √ | √ | √ | |
| Low Battery Indication | √ | √ | √ | |
| Data Hold | √ | √ | √ | |
| LCD Backlight | √ | √ | √ | |
| Input Impedance for DCV | Around 10MΩ | √ | √ | √ |
