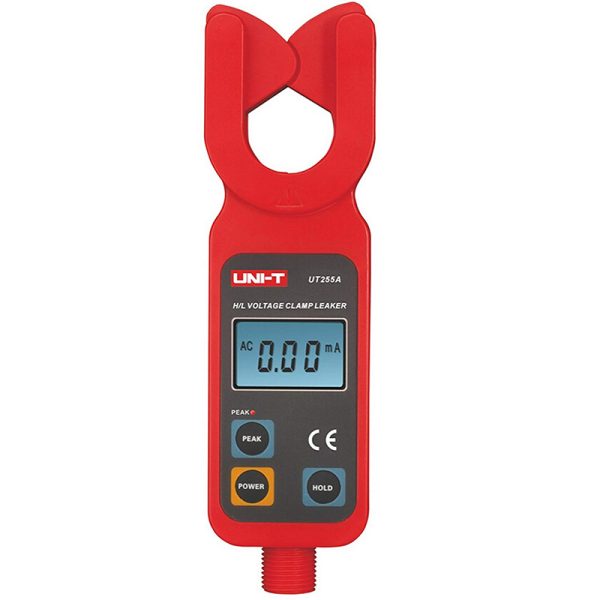

High Voltage Leakage Current Clamp AMP Meter Ammeter Tester

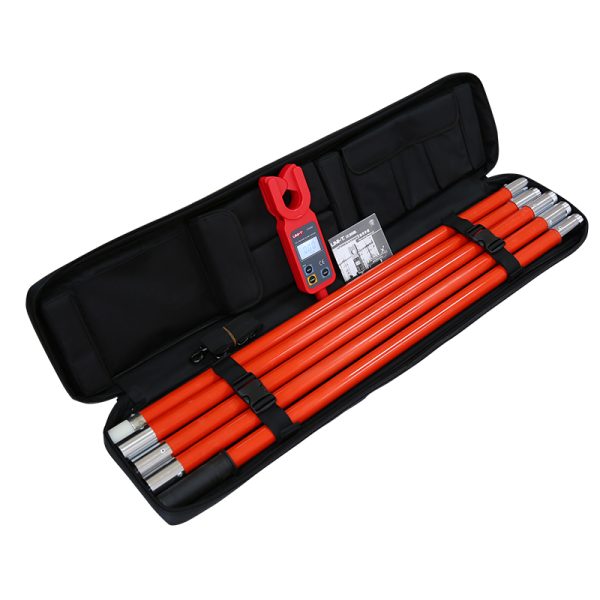

69KV High-voltage Leakage Current Clamp Ammeter Tester It is designed for the online measurement of high voltage transmission line current, leakage current to determine the operation of the MOA. The latest CT and shielding technology with high voltage insulation rodcomposed by a dedicated high voltage detector. Without the use of insulated rods, can also be used as a precision low-voltage clamp leakage current meter, ammeter, can accurately measure the 0.01mA leakage current or current. If the focus for a very small leakage current or current testing, and the best selection of wireless transmission type, to facilitate the timely display.
*Leakage Current(A):0.01mA~100.0A ±(1%+5)
*100.0A~600.0A:±(2%+5)
*Voltage(Freq.):0V~69KV(50Hz/60Hz) √
*General Characteristic
*Power:1.5V Alkaline Batteries(LR03)X 4
*LCD Size:47mm X 28.5mm
*Product Color:Red and Grey
*Product Net Weight:335g
*Product Size:68mm X 245mm X 40mm
Specifications | Range | Best Accuracy |
Leakage Current | 0.01mA – 100.0A | ±(1%+5) |
100.0A – 600.0A | ±(2%+5) | |
Voltage (freq) 0V – 69kV (50Hz/60Hz) | N/A | |
Display Mode | 4 Digits Display LCD | |
Jaw Capacity | 33mm | |
Auto Range | Yes | |
Wireless Transmission | ≤30m | |
Data Recall | Yes | |
Datalogging | 99 Records | |
Peak Value | Yes | |
LCD Backlight | Yes | |
Data Hold | Yes | |
Auto Power Off | Around 15 Mins | |
Low Battery Indicator | Yes | |
Over-Range Display | Shows ‘OL’ | |
Test Mode | Clamp CT, Integral Approach | |
Sample Rate | About 2 Times/Second | |
Power | 1.5V Alkaline Batteries (LR03) x 4 | |
LCD Size | 47mm x 28.5mm | |
Product Size | 68mm x 245mm x 40mm |
