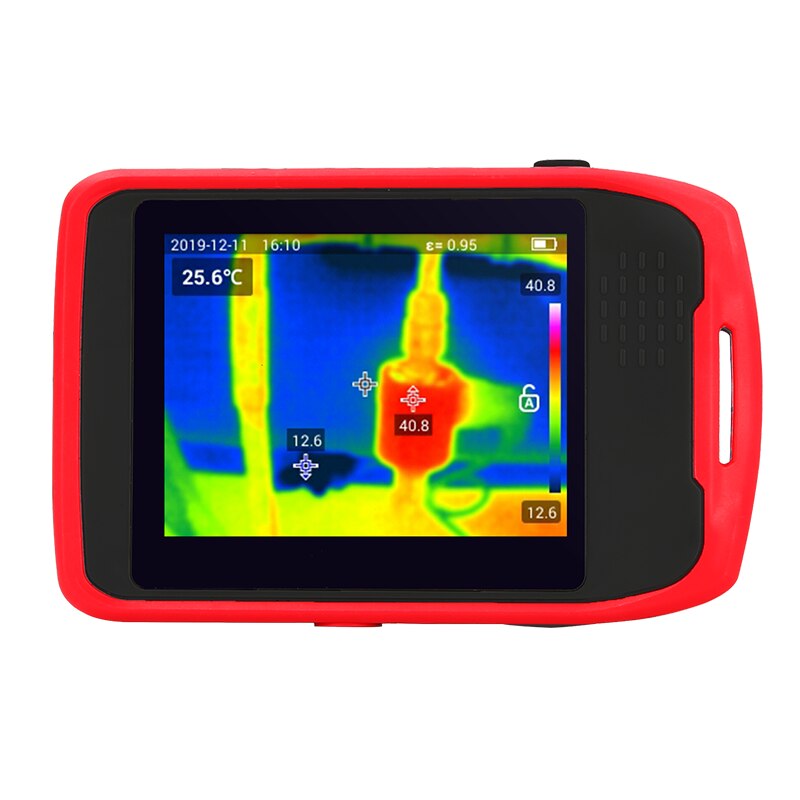

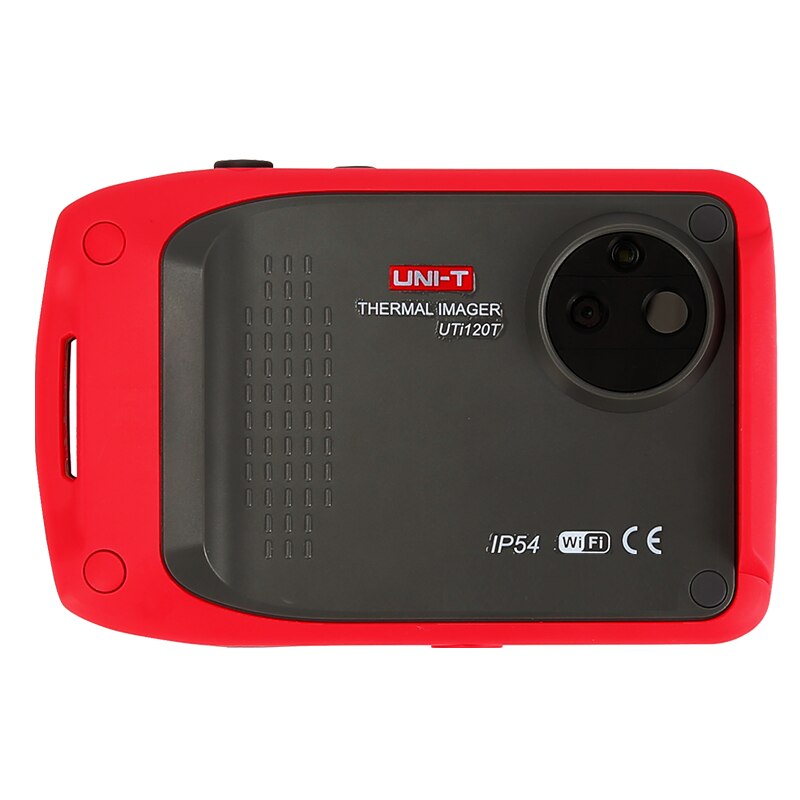

Thermal imaging camera 7.6mrad wifi thermal imager
Why use the camera?
1. Intuitive, efficient and convenient, making users directly “see” the temperature variation.
2. Thermal condition of different locations for comprehensive analysis, providing more information for judgment
3. Avoiding judgment errors, reducing labor costs, and discovering poor heat dissipation and hidden trouble points
4. PC software for data analysis and report output
SPECIFICATIONS
Temperature range -20~400ºC
IR resolution 120×90 pixels
Field of view (FOV) 50°×38°
Thermal sensitivity (NETD) <60mk
Spatial resolution (IFOV) 7.6mrad
Frame rate 25Hz/9Hz
Digital zoom 2×, 4×, 8×
Display modes Thermal, image blending, visible light
Powered by 3.7V 5000mAh Li-ion battery (not included)
Size 205mm x 124 mm x 65mm
Weight 212g
