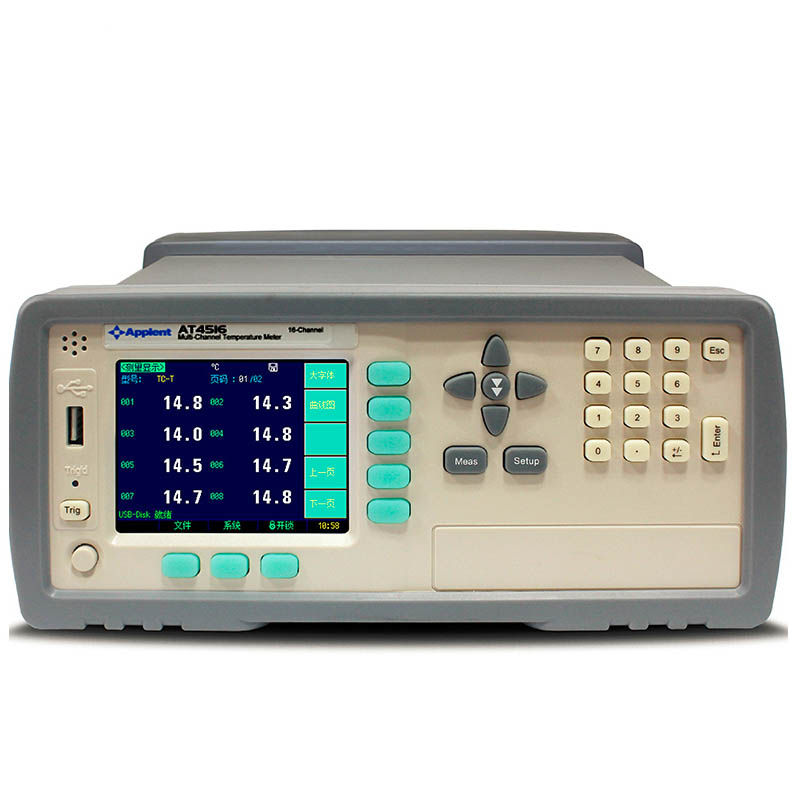

Thermocouple J K T E S N B temperature meter
Feature:
-Scan speed: Fast/Med/Slow
-Cold Junction Compensation
-TFT True Color LCD Display.
-Interface: RS232C and USB Slaver Interface-USB-Disk Interface
-16 Channel thermocouple types: J, K, T, E, S, N andB
-Full colour LCD screen
-Broken thermocouple checking
-High Accuracy
Specification:
Graduation | thermocouple:J/K/T/E/S/N/B |
Accuracy | 0.2%+1ºC |
Range | -200ºC~1300ºC(Varying depend on graduation) |
Resolution | 0.1ºC |
Channels | 16 channels; 128 channels are available |
Speed | Fast: 100ms/channel Medium: 500ms/channel Low: 1s/channel |
Correction | Error correct for each channel |
Comparator | High/low beep Individual setting high/low value for each channel |
Interface | RS232C interface U-disc interface USB communication interface |
Softer | ATS45 data acquisition software |
Cold Junction | Accuracy: 0.5ºC |
Other | TFT-LCD True-color LCD display, broken thermocouple checking function |
Power Supply | Voltage: 85VAC-260VAC Frequency: 50Hz/60Hz Power: 10VA |
Dimension & Weight | 216mm(Width)x88mm(Height)x300mm(Depth) 3kg |
Accessories | AT4516: K thermocouple 16 teams |
