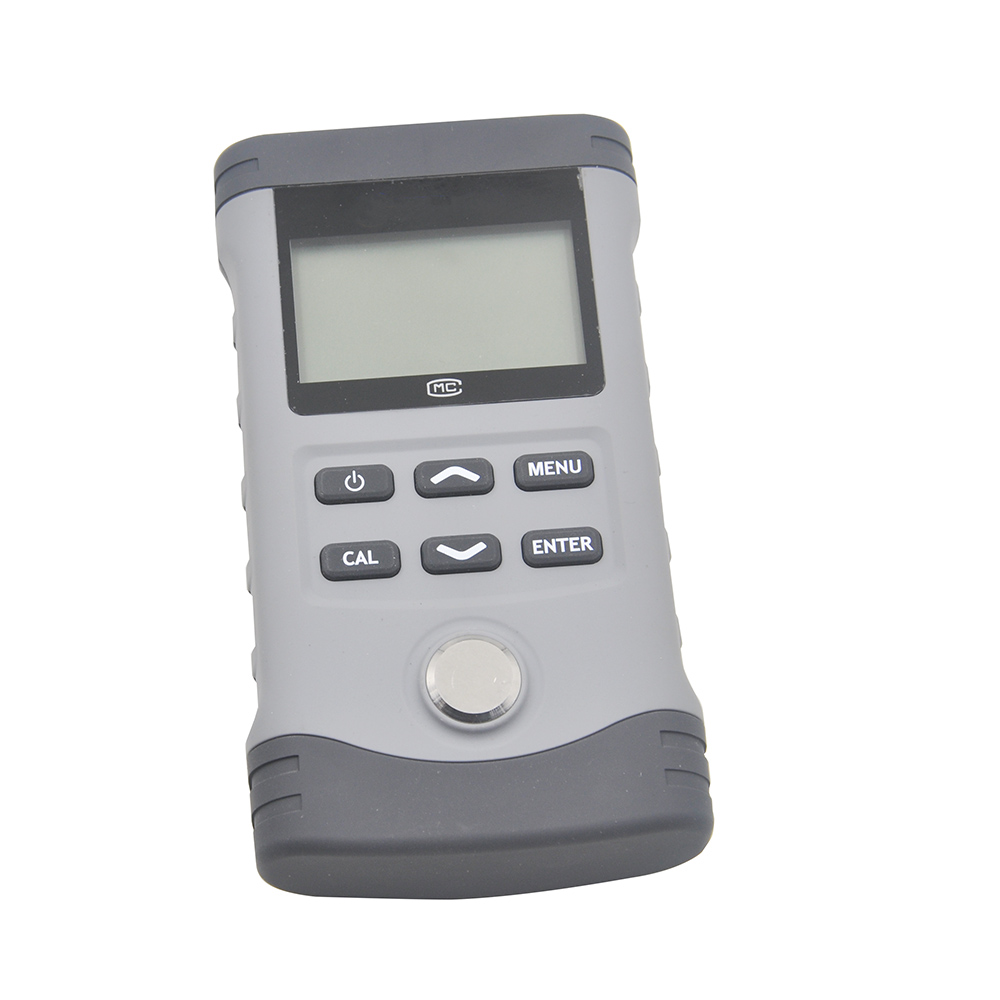

Ultrasonic thickness gauge echo pulse two model
Features
1. Two measurement methods: a bottom wave and echo- echo
2. Pulse ~ echo mode (standard mode, used for ordinary thickness measurement)
3. Echo ~ echo mode (coating mode, used for measurement without removing the paint layer)
4. Reverse sound velocity measurement: the sound velocity of the material can be measured back according to the thickness of the known material
5. Automatic sensitivity gain optimization Automatically adjust the sensitivity to make the measurement more accurate
6. The probe is automatically recognized, a variety of probes can be selected, and the upper and lower limitalarm thresholds can be set
7. Minimum scan mode, 10 times per second, quickly measure and capture the minimum
8.Difference mode: compare the measured thickness with the set base value, and display the difference on the screen
Specification:
1 Measuring range: launch-echo mode, 1-500mm (according to the specific probe); echo-echo mode, 3.0-20mm (E-E10 probe).
2. Sound velocity range: 1000~9990m/s
3. Display digits: four digits
4. Indication accuracy: 0.1mm (measuring greater than 100mm); 0.01mm (measuring less than 100mm).
5. Measurement error: H<10mm, ±0.05; H≥10mm, ±(0.01+H/200). (H is the measured thickness value)
6. Operating environment: temperature: -10°C~60°C; relative humidity is less than 90%.
7. Measurement method: manual storage measurement
8. Storage capacity: Divided into 6 groups, each with 100 measurement points, a total of 600 measurement points
9. Dimensions: 146mm*81mm*30mm
10. Weight: 300g (including battery)
11. Power supply: two AA batteries
