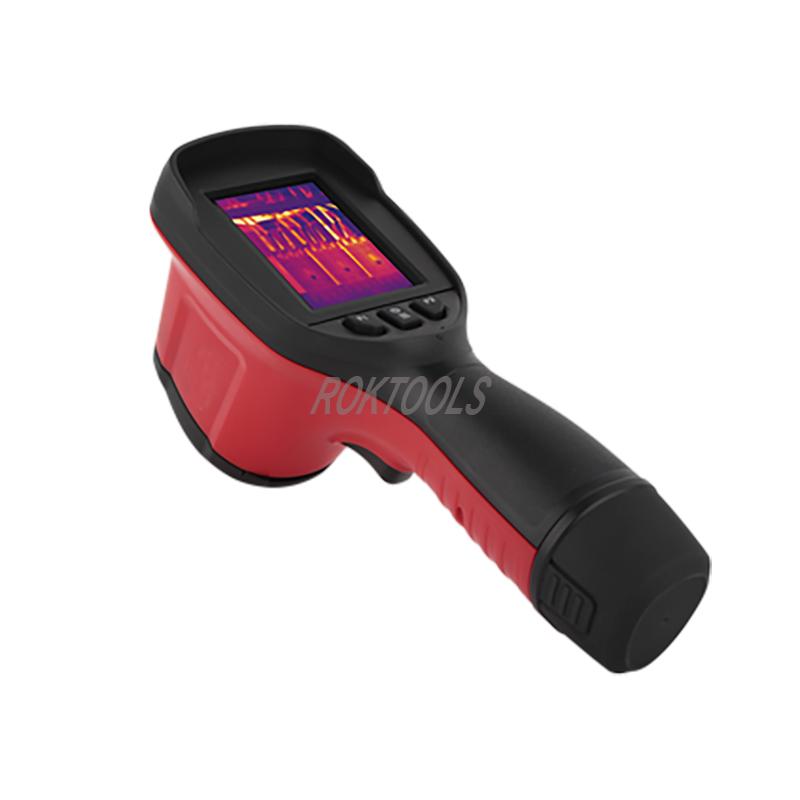

Uncooled FPA thermal imaging camera night vision 120×120
Features:
-Light Weight, Portable
-Resolution: 120*120
-Visual light lens
-4 Color palette
-Image adjustment
-Measurement correction
-Built-in memory
-3 hours continuous operation rechargeable battery
-Auto-shut down
Item |
Specification |
|
THIM-5006 |
||
Detector |
Type |
Uncooled FPA |
Resolution |
120×120 |
|
Spectral range |
8-14um |
|
Frame rate |
50 Hz |
|
Thermal sensitivity |
0.06℃@30℃ |
|
Lens |
FOV |
33°x33° |
Focus range |
0.5m~∞ |
|
Focus method |
Focus-free |
|
Image |
Spatial resolution |
5mrad |
Visual light lens |
Yes |
|
Image display |
LCD |
3.2″ TFT LCD,240×320 |
Color palette |
4 colors |
|
Image display |
IR and visual image changed fast, Dual band image enhancement processing |
|
Image adjustment |
Auto |
|
Measurement |
Measurement range |
-20℃~ +250℃ |
accuracy |
±2℃ or ±2% |
|
Measurement correction |
Auto |
|
Measurement mode |
Fixed center, screen max/min temperature, temperature alarm(voice ,color) |
|
Emissivity correction |
Variable from 0.01 to 1.0 |
|
Setup function |
Date/time/format, temperature unit℃/℉/K, language |
|
Image storage |
storage card |
Built-in memory, up to 5000 images |
Storage method |
Manual, Auto single file saving, IR and visual image fusion saving |
|
Image format |
JPEG format,with the original thermal data included |
|
Voice annotation |
60 seconds (saving with thermal image) |
|
Power supply system |
Battery |
Li-Ion, rechargeable |
Battery operating time |
3 hours continuous operation |
|
Battery charging mode |
Random charge with USB slot |
|
Power saving |
Auto dormancy, auto-shut down |
|
Interface |
Power interface |
Mini-USB |
Date transmission |
Mini-USB |
|
Environment |
Operating temperature |
-15℃~+50℃ |
Storage temperature |
-25℃~+60℃ |
|
Humidity |
≤90% |
|
Encapsulation |
IP54 |
|
Anti-shock |
25G, IEC68-2-29 |
|
Anti-vibration |
2G, IEC68-2-6 |
|
Drop |
1.5meter |
|
Safety specification |
Electromagnetic compatibility |
Meet to the standards of CE certification |
Physical characteristic |
Dimension |
240*88*135mm (H*W*D) |
Weight (with battery) |
510g |
