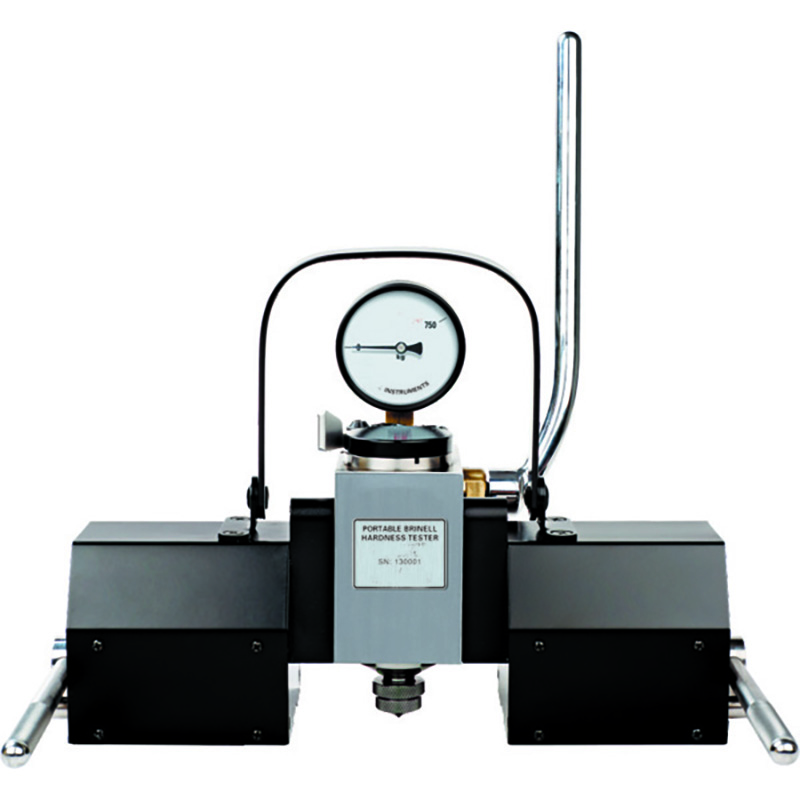

750kg test force magnetic hydraulic brinell hardness tester scale
Features:
-Suitable for testing large item which cannot move.
-Used in the test for welded or assembled pipes, large-scale equipment and steel structure parts.
-A 5mm test ball and 750kg test force are applied in the test. Compared with the2.5mm test ball condition, it has a larger indentation, better representativeness, dial indicator is easier to read
Specification:
Test force: 750kgf
Test ball: 5mm hard alloy ball
Test range: 100~650HBW
Indication error: comply with ISO 6506, and ASTM E10.
Repeatability error: comply with ISO 6506, and ASTM E10.
Test force error: comply with ISO 6506, and ASTM E10.
Weight: 15.8kg
Surface: Flat: area≥290mm×90mm
Cylinder: diameter≥120mm
What are in the package?
-Tester
-Load handle
-Brinell hardness Block
-40x Reading Microscope
-5mm Carbide ball indenter
-Seat Iron
